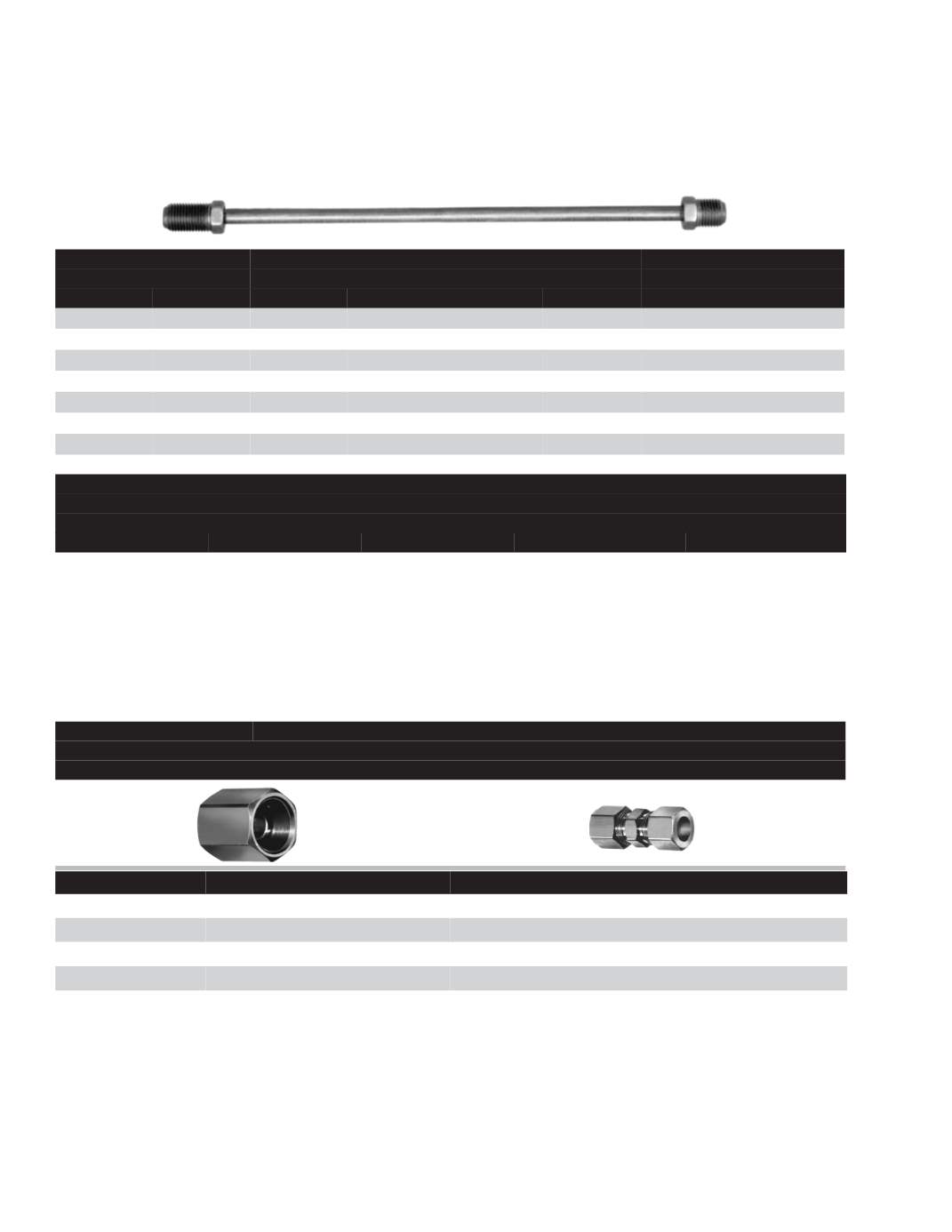

STEEL BRAKE LINES AND FITTINGS
STEELBRAKE LINESAND FITTINGS
For Domestic Vehicles
3/16” OD
1/4” OD
5/16” OD
3/8” OD
BLUE LABEL - 10 PER TUBE
YELLOW LABEL - 10 PER TUBE ORANGE LABEL - 10 PER TUBE
GREEN LABEL - 10 PER TUBE
PART NO.
LENGTH
PART NO.
LENGTH
PART NO.
LENGTH
PART NO.
LENGTH
E-8560-08
8“
E-8561-08
8“
E-8562-08
8“
E-8563-08
8“
E-8560-12
12“
E-8561-12
12“
E-8562-12
12“
E-8563-12
12“
E-8560-20
20”
E-8561-20
20”
E-8562-20
20”
E-8563-20
“20
E-8560-30
30”
E-8561-30
30”
E-8562-30
30”
E-8563-30
“30
E-8560-40
40“
E-8561-40
40“
E-8562-40
40“
E-8563-40
40“
E-8560-51
51“
E-8561-51
51“
E-8562-51
51“
E-8563-51
51“
E-8560-60
60“
E-8561-60
60“
E-8562-60
60“
E-8563-60
60“
ADAPTER LINES
ALL ADAPTER LINES ARE 8” LONG
CONVERT 3/16” AND 1/4” BRAKE LINES TO FIT LARGER THAN STANDARD OPENINGS
PART NO.
TUBE OD
NUT COLOR
THREAD SIZE
APPLICATION
E-8564
3/16”
Red
3/8” -24, 7/16” - 24
General Motors
E-8565
3/16”
Black
3/8” -24, 1/2” - 20
Ford
E-8566
3/16”
Green
3/8” -24, 1/2” - 20
General Motors
E-8567
3/16”
Olive
3/8” -24, 7916” - 18
Ford
E-8568
1/4”
Blue
7/16” -24, 9/16” - 18
General Motors
E-8569
1/4”
Brass
7/16” -24, 7/16” - 18
General Motors
E-8570
1/4”
Silver
7/16” -24, 1/2” - 18
General Motors
FITTINGS
ALL ADAPTER LINES ARE 8” LONG
CONVERT 3/16” AND 1/4” BRAKE LINES TO FIT LARGER THAN STANDARD OPENINGS
PART NO.
DESCRIPTION
PART NO.
DESCRIPTION
E-8639
For 3/16” Hydraulic Brake Line
E-8643
For 3/16” Copper Air Brake Line
E-8640
For 1/4” Hydraulic Brake Line
E-8644
For 1/4” Copper Air Brake Line
E-8641
For 5/16” Hydraulic Brake Line
E-8645
For 5/16” Copper Air Brake Line
E-8642
For 3/8” Hydraulic Brake Line
E-8646
For 3/8” Copper Air Brake Line
