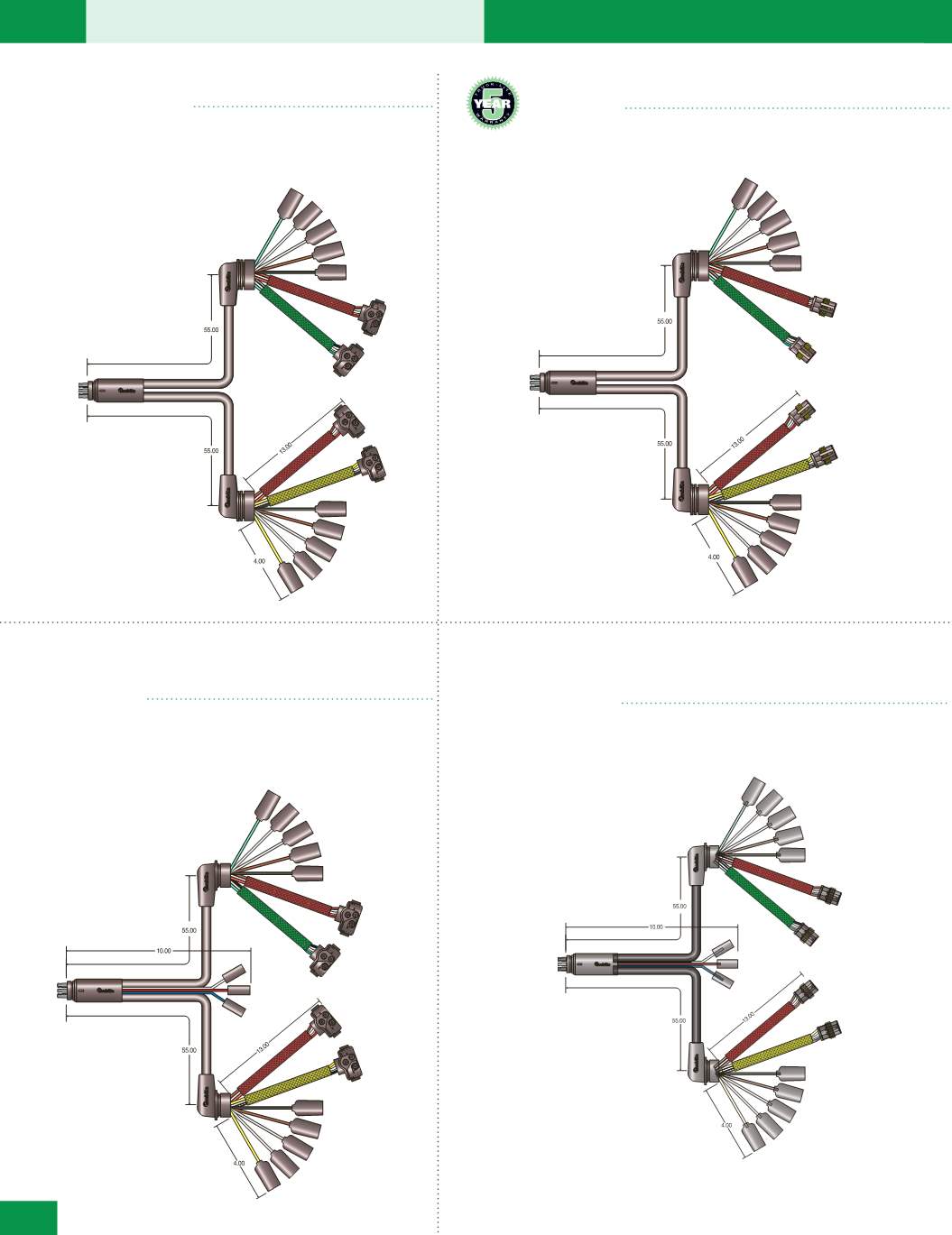

LED Rear Sill Harness
88930 LED rear sill harness
88932 LED rear sill harness
w/o mid-turn dropouts
Rear Sill Harness
88910 Rear sill harness
88915 Rear sill harness
w/o mid-turn dropouts
right hand
left hand
Wire Color Coding For All Rear Sill Dropouts
Center (ABS Power)
Red
– (1) Single - Stop
Blue
– (1) Single - Auxiliary/ABS
White
– (1) Single - Ground
Right Hand
Green
– (1) Single RH Turn
White
– (2) Double Ground
Brown
– (1) Double Marker or Tail
Black
– (1) Double License or Marker
Left Hand
Yellow
– (1) Single LH Turn
White
– (2) Double Ground
Brown
– (1) Double Marker or Tail
Black
– (1) Double License or Marker
88910 SHOWN
88930 SHOWN
Rear Sill Harness with Auxiliary
Dropouts
88911 Rear sill harness w/auxiliary red/
blue/white dropouts
right hand
left hand
LED Rear Sill Harness
with Auxiliary Dropouts
88931 LED rear sill harness w/
auxiliary red/blue/white
dropouts
