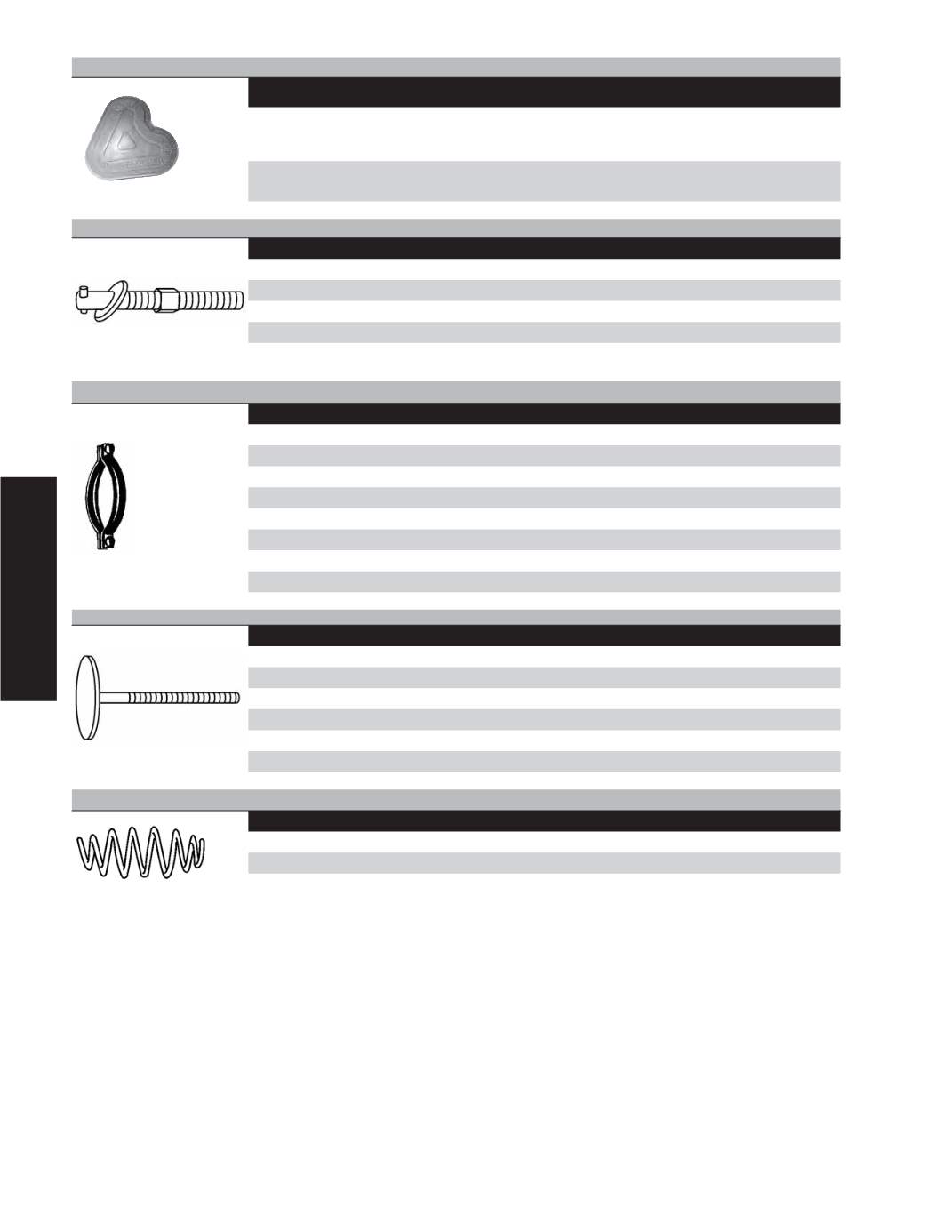

BRAKE CHAMBERS
HALDEX SERVICE COMPONENTS
CAGING TOOL PLUG
EUCLID NO. COLOR REPLACES HALDEX NO.
GENERAL INFORMATION
E-11991
Blue
RTP1
Tethered Plug for Cam Brake Combination and Piggyback
Units. For Gold Seal
®
& Clamp Style except xx36.
E-9112
Blue
9999039
Untethered Plug for Wedge Brake Combination and
Piggyback Units.
RELEASE STUD ASSEMBLY
EUCLID NO.
REPLACES HALDEX NUMBER
GENERAL INFORMATION
E-11988
RT1
For all DDSB except xx36
E-12743
RT2
For 3036 and 3636
E-9115
44M011
0912, 1212
E-12743
128M1011
3036, 3636
E-11988
11L011
2430-LS
CLAMP RING ASSEMBLY (Service Chamber)
EUCLID NO.
REPLACES HALDEX NUMBER
FOR SERVICE CHAMBER:
E-11992
1127M005-CA
T-24
E-12749
CB12
T-12
E-12750
CB16
T-16
E-12752
CB20S1
T-20
E-12755
CB36S1
T-36
E-9118
1126M005-CA
T-30
E-9120
1128M005-CA
T-36
E-9121
1133M005-CA
T-20
SERVICE PUSH RODS
EUCLID NO.
REPLACES HALDEX NO. THD. LENGTH THREAD SIZE
FOR USE WITH:
E-11983
24-1250-0940
11-5/32” 5/8”-18 UNF 24S, 2424, 2430
E-11987
36-1250-0875-4
8-3/4”
3/4”-14 UNF 36S, 3636
E-11986
36-1250-0875
8-3/4”
5/8”-18 UNF 36S, 3636
E-11985
30-1250-0925-4
9-1/4”
3/4”-14 UNF 30S, 3030, 3036
E-11984
30-1250-0925
9-1/4”
5/8”-18 UNF 30S, 3024, 3030, 3036
E-11983
24L-1250-0925
9-1/4”
5/8”-18 UNF 24-LS, 2424-LS, 2430-LS
SERVICE RETURN SPRING
EUCLID NO.
REPLACES HALDEX NO.
GENERAL INFORMATION
E-12776
RS5
For Haldex and current T-30 and G(L)C 3030 2.5” models
E-9130
11M016
For chamber type 20S, 24S, 24S-LS, 30S, 36S.
E-9131
1128M016
Heavy duty. For chamber type 36S.
