WEDGE BRAKES

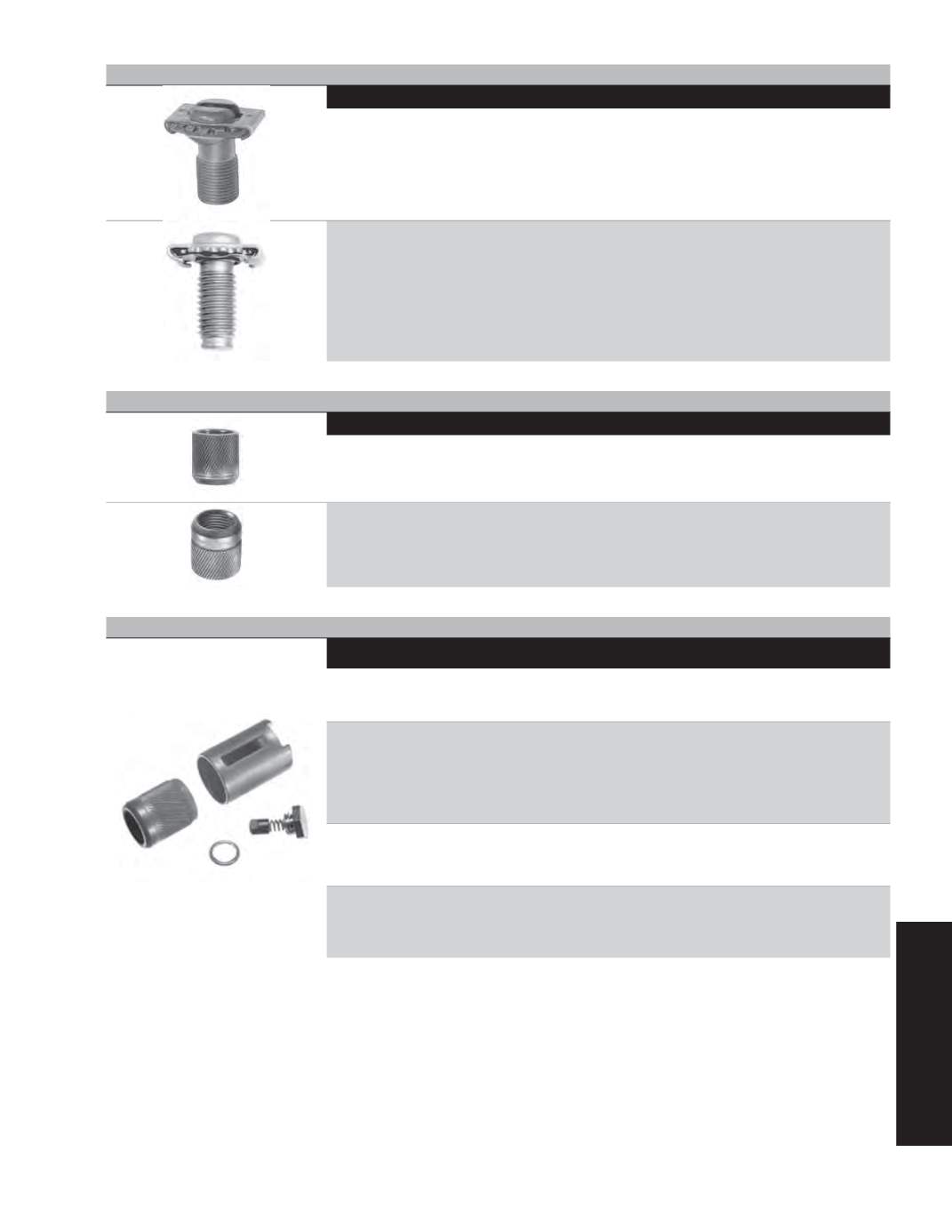

MERITOR “STOPMASTER” WEDGE BRAKE PARTS
ADJUSTING BOLTS
EUCLID NO.
REPLACES
GENERAL INFORMATION
E-2484
Dayton/Batco 07163
Dayton/Batco 07169
Meritor 2297D2370
Meritor A2297L3158
Leland L1188
Leland L1317
For 12-1/4” RD Brakes and 15” Rear RD Brakes.
E-3492
Dayton/Batco 07168
Navistar 487480C91
Meritor A2297V2882
Leland L1046
For 15” Front RS and RD Brakes, Backing Plate
Mounted.
ADJUSTING SLEEVES
EUCLID NO.
REPLACES
GENERAL INFORMATION
E-3499
Dayton/Batco 07187
Meritor 2297N2874
Navistar 487479C1
For 15” Front RS and RD Brakes, Backing Plate
Mounted. Use with E-3492 Adjusting Bolt. Use
with E-5540 Pawl Assembly.
E-5531
Meritor 3280Y8189
Leland L3053
Blue Plated. For 12-1/4” RD Brakes and 15” Rear
RD Brakes. Use with E-2484 or E-2485 Adjusting
Bolts. Use with E-5539 Pawl Assembly. Replaces
E-2486.
ADJUSTING PLUNGER ASSEMBLIES TO CONVERT OLDER “STOPMASTER” MODELS TO CURRENT STYLE
EUCLID NO.
REPLACES
WEDGE DEGREE
INCLUDES
E-3996
Dayton/Batco 07230
Meritor A3280U8185
10°
1 E-5533 Adjusting Plunger
1 E-5531 Adjusting Sleeve
1 E-5539 Pawl Assembly
E-3997
Dayton/Batco 07231
Dayton/Batco 7191
Meritor A3280V8186
Leland L3055
Leland L762
12°
1 E-5534 Adjusting Plunger
1 E-5531 Adjusting Sleeve
1 E-5539 Pawl Assembly
E-3998
Dayton/Batco 07232
Dayton/Batco 7192
Meritor A3280W8187
14°
1 E-5535 Adjusting Plunger
1 E-5531 Adjusting Sleeve
1 E-5539 Pawl Assembly
E-3999
Dayton/Batco 07233
Dayton/Batco 7193
Meritor A3280X8188
16°
1 E-5536 Adjusting Plunger
1 E-5531 Adjusting Sleeve
1 E-5539 Pawl Assembly
