SERVICE TOOLS
HYDRAULIC BRAKE SERVICE TOOLS

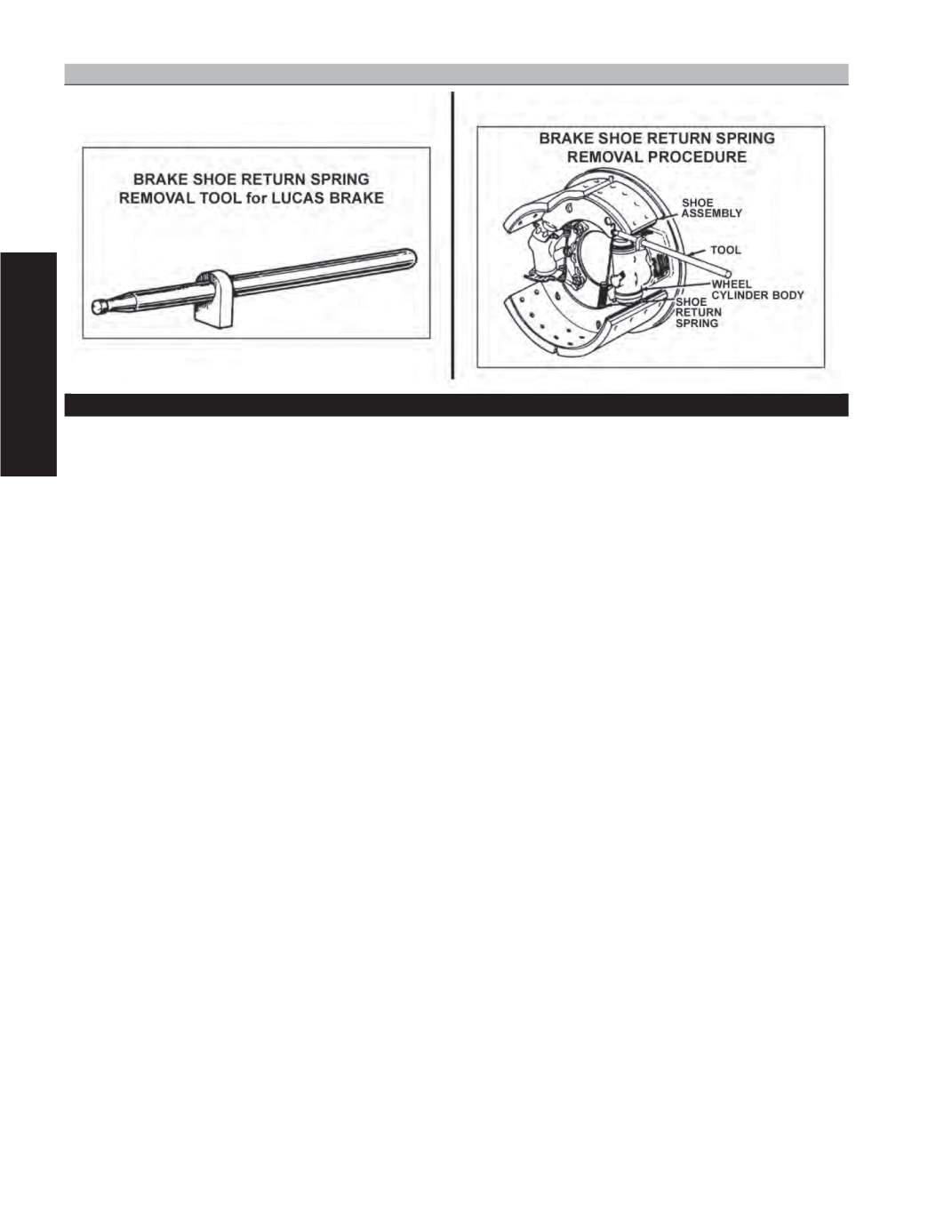

Return Spring REMOVAL TOOL for LUCAS BRAKE
EUCLID NO.
GENERAL INFORMATION
E-6061
1. Insert the end of the bar into the loop on one of the shoe return springs.
2. Using the wheel cylinder body as a fulcrum, unhook the spring from the shoe web.
3. Support the lower shoe, unhook the second spring, and remove the shoes.
NOTE: The shoe return spring is hooked on the backside of the shoe web. Be careful not to damage the manual adjustment
wheel or the rubber dust boot.
