INSTALLATION TIPS
Once you’ve selected the right ASA type and part number, it is important to instruct the customer on installation of
the ASA. There are installation templates in the box with the slack adjuster. Each installation template is designed
to line up the clevis, push rod, and arm at a particular angle so that the most efficient adjustment of the brakes is
obtained. Should the installation angle be off from the required template angle for that application, over adjustment
or under adjustment will result - and therefore push rod lengths may be off from the acceptable lengths!
USE OF THE TEMPLATE WILL GIVE YOU THE IDEAL ADJUSTMENT

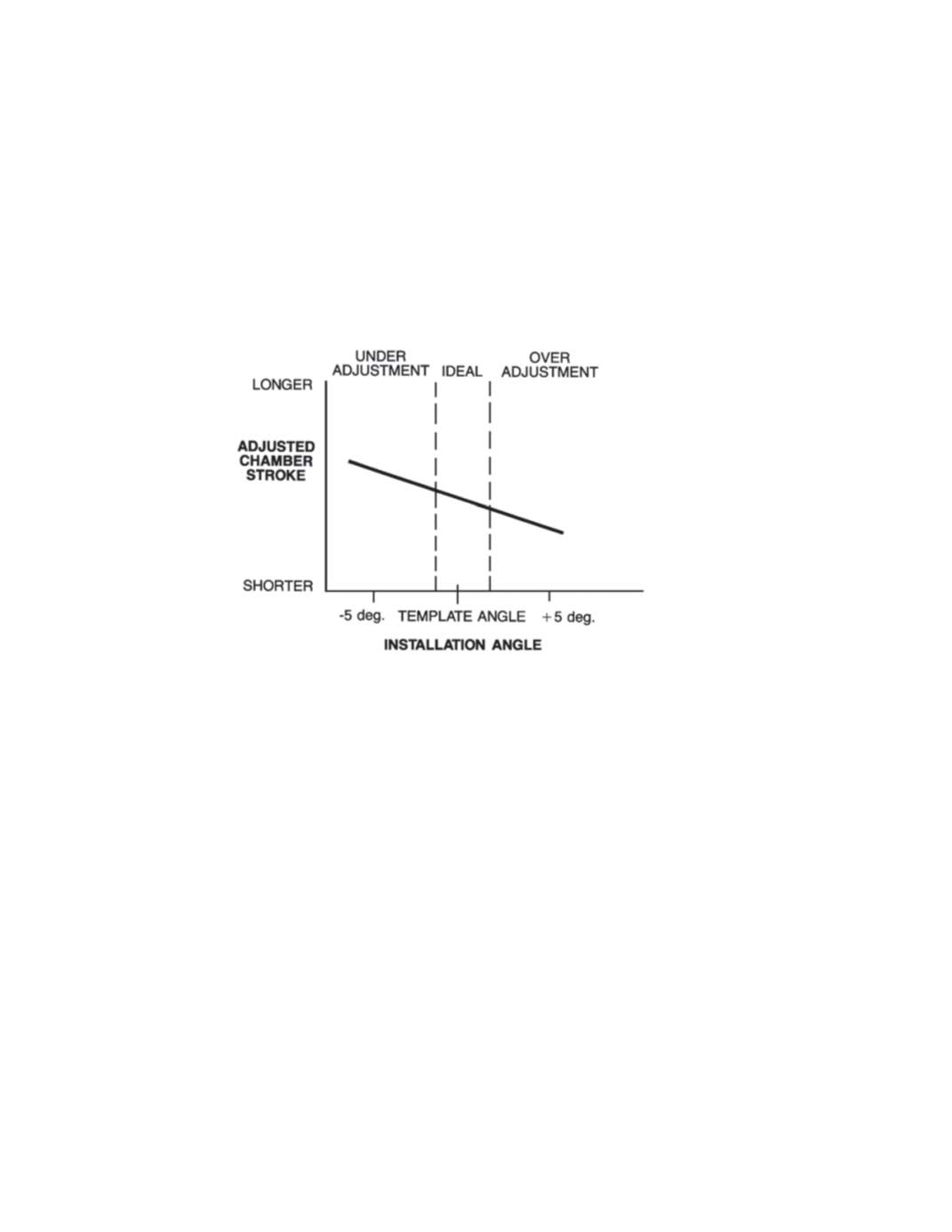

An example of the relationship is as follows:
This is why the installation templates should be used and the correct part number/piston/
chamber relationship needs to be maintained
.
The templates are packaged with the ASA and are listed below with their corresponding applications:
TEMPLATE COLOR
NUMBER
APPLICATION
BROWN
2297-B-4786
TRACTORS WITH DRUM BRAKES
TAN/LIGHT BROWN
2297-C-4787
TRAILERS WITH DRUM BRAKES
GREEN
2297-D-4788
AIR DISC BRAKES WITH OFFSET CLEVIS
YELLOW
2297-E-4789
AIR DISC BRAKES WITH STRAIGHT CLEVIS
WHITE
2297-W-4781
COACH APPLICATIONS WITH DRUM BRAKES
The Meritor ASA field maintenance manual #MM4 is available via Literature on Demand at meritor.com for specific
installation information.
