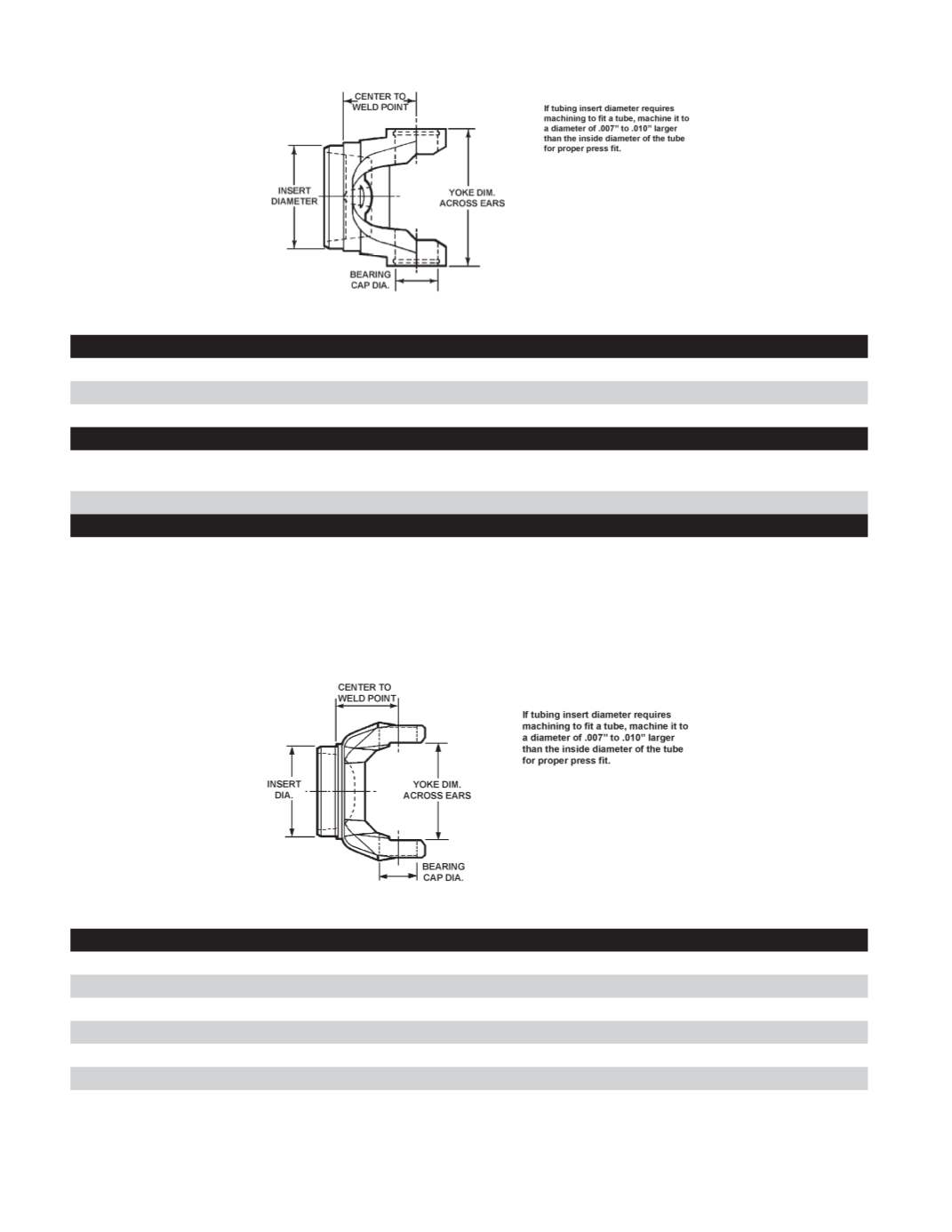

Yoke Dimension
Across Ears
Bearing Cap
Diameter
Used with Tubing O.D. and Wall
Insert Diameter
Center to Weld
Point
Joint Angle
Part Number
155N SERIES U-JOINT KIT: CP155N or CP155X
5.25"
1.38"
3.50" x
3.33"
2.69"
36°
155NY53-5
5.25"
1.38"
3.50" x .095" (13 GA)
3.32"
2.19"
155N-28-307
5.25"
1.38"
4.00" x .083" (14 GA)
3.86"
2.50"
19°
155RY62
20R SERIES U-JOINT KIT: CP20RPL-1
7.00"
2.06"
4.00" x .134" x , 4.06" x .180" ,
4.09" x .164" x
3.74"
3.70"
30°
20RY60-6
1
7.00"
2.06"
4.00" x .134" x , 4.09" x .180”
3.74"
5.25"
39°
20RY60-7
25R SERIES U-JOINT KIT: CP25RPL-1
8.33"
2.06"
4.59" x .180" (7 GA)
4.69” x .230”
4.24"
3.70"
24°
25RY68-3
1
WELD YOKES — OUTSIDE SNAP RINGS
WELD YOKES — INSIDE SNAP RINGS
Yoke Dimension
Across Ears
Bearing Cap
Diameter
Used with Tubing O.D. and Wall
Insert Diameter
Center to Weld
Point
Joint Angle
Part Number
3R SERIES U-JOINT KIT: CP3147X
2.56"
1.13"
2.75" x .065" (16 GA)
2.63"
1.75"
20°
R3R-28-307
2.56"
1.13"
3.00" x .065" (16 GA)
2.88"
1.69"
21.5°
R3R-28-327
2.56"
1.13"
3.00" x .083" (14 GA)
2.84"
1.69"
21.5°
R3R-28-437
2.56"
1.13"
3.00" x .095" (13 GA)
2.88"
1.69"
21.5°
R3R-28-157
2.56"
1.13"
3.25" x .065" (16 GA)
3.13"
1.88"
20°
R3R-28-325
2.56"
1.13"
3.50" x .065" (16 GA)
3.38"
1.88"
20°
R3R-28-397
2.56"
1.13"
3.50" x .083" (14 GA)
3.34"
1.69"
21.5°
R3R-28-427
1 Has .25 in. diameter vent hole for use with less than 9 in. of tube.
