WELD YOKES — INSIDE SNAP RINGS

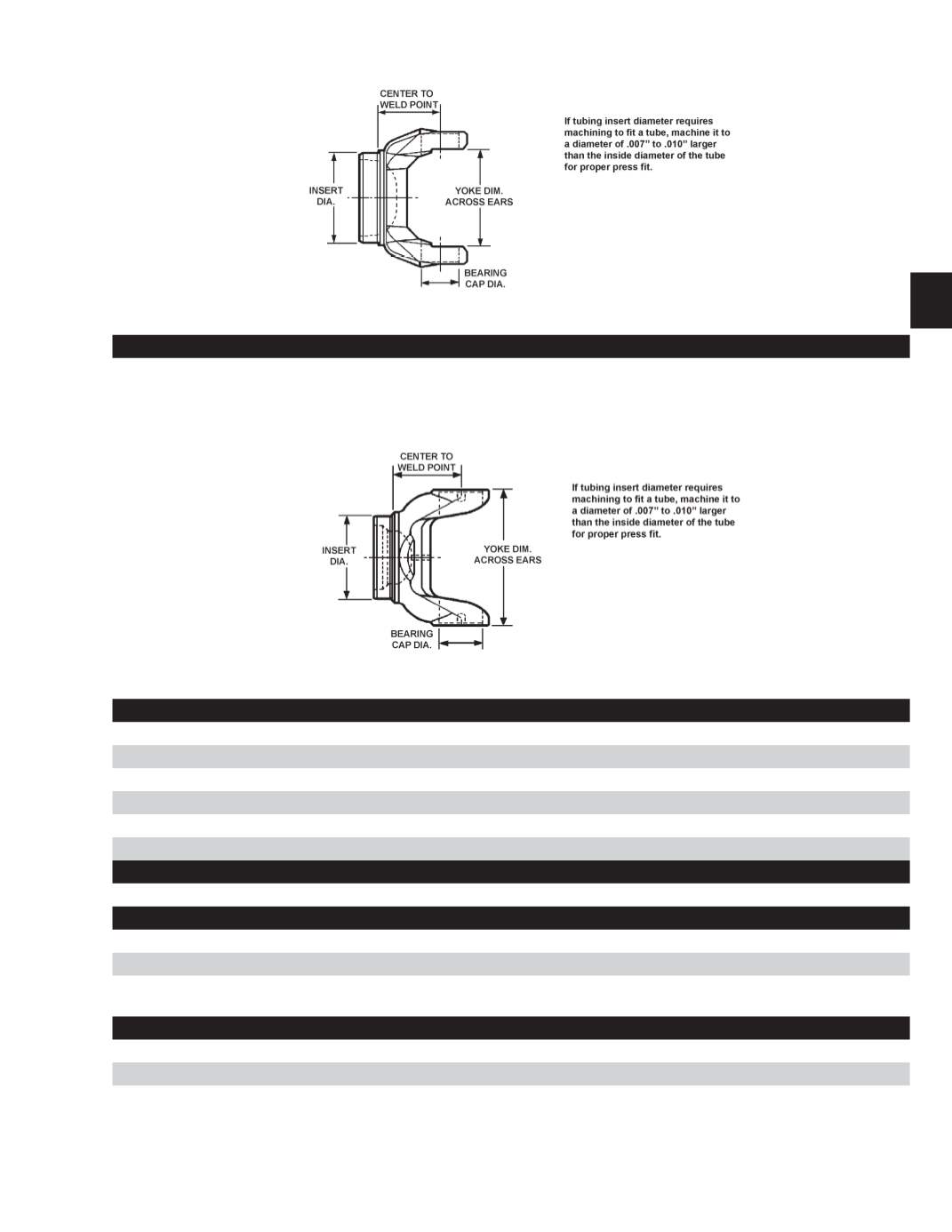

Yoke Dimension
Across Ears
Bearing Cap
Diameter
Used with Tubing O.D. and Wall
Insert Diameter
Center to Weld
Point
Joint Angle
Part Number
1000 and 10N SERIES U-JOINT KIT: CP170X
1.50"
0.94"
2.00" x .083" (14 GA)
1.84"
1.75"
R10V5
WELD YOKES — BEARING PLATE
Yoke Dimension
Across Ears
Bearing Cap
Diameter
Used with Tubing O.D. and Wall
Insert Diameter
Center to Weld
Point
Joint Angle
Part Number
16N SERIES U-JOINT KIT: M279X or CP279X
5.31"
1.88"
3.50" x .156"
3.20"
3.00"
30°
16N-28-207
5.31"
1.88"
3.50" x .134" (10 GA)
3.24"
3.00"
30°
16N-28-627
5.31"
1.88"
3.50" x .134"
3.25"
3.81"
16N-28-887
5.31"
1.88"
3.50" x .095" (13 GA)
3.32"
3.00"
30°
16N-28-167
5.31"
1.88"
4.00" x .134"
3.73"
3.00"
16N-28-327
5.31"
1.88"
4.00" x .109" (12 GA)
3.79"
3.00"
19°
16NY61
176N SERIES U-JOINT KIT: M407X or CP407X
7.00"
1.94"
4.00" x .134" (10 GA)
3.74"
3.03"
30°
176N-28-17
17N SERIES U-JOINT KIT: M280X or CP280X
6.09"
1.94"
3.50" x .156"
3.20"
3.03"
17N-28-137
6.09"
1.94"
4.00" x .134" (10 GA)
3.74"
3.03"
30°
17N-28-347
6.09"
1.94"
4.00" x , 4.09" x .134" (10 GA),
.180” (7 GA)
3.74"
4.50"
42°
17NY60-15
18N SERIES U-JOINT KIT: M281Xor CP281X
7.55"
1.94"
4.50" x .259" (3 GA)
4.00"
3.38"
18N-28-127
7.55"
1.94"
4.50" x .134" (10 GA)
4.24"
3.38"
30°
18N-28-117
