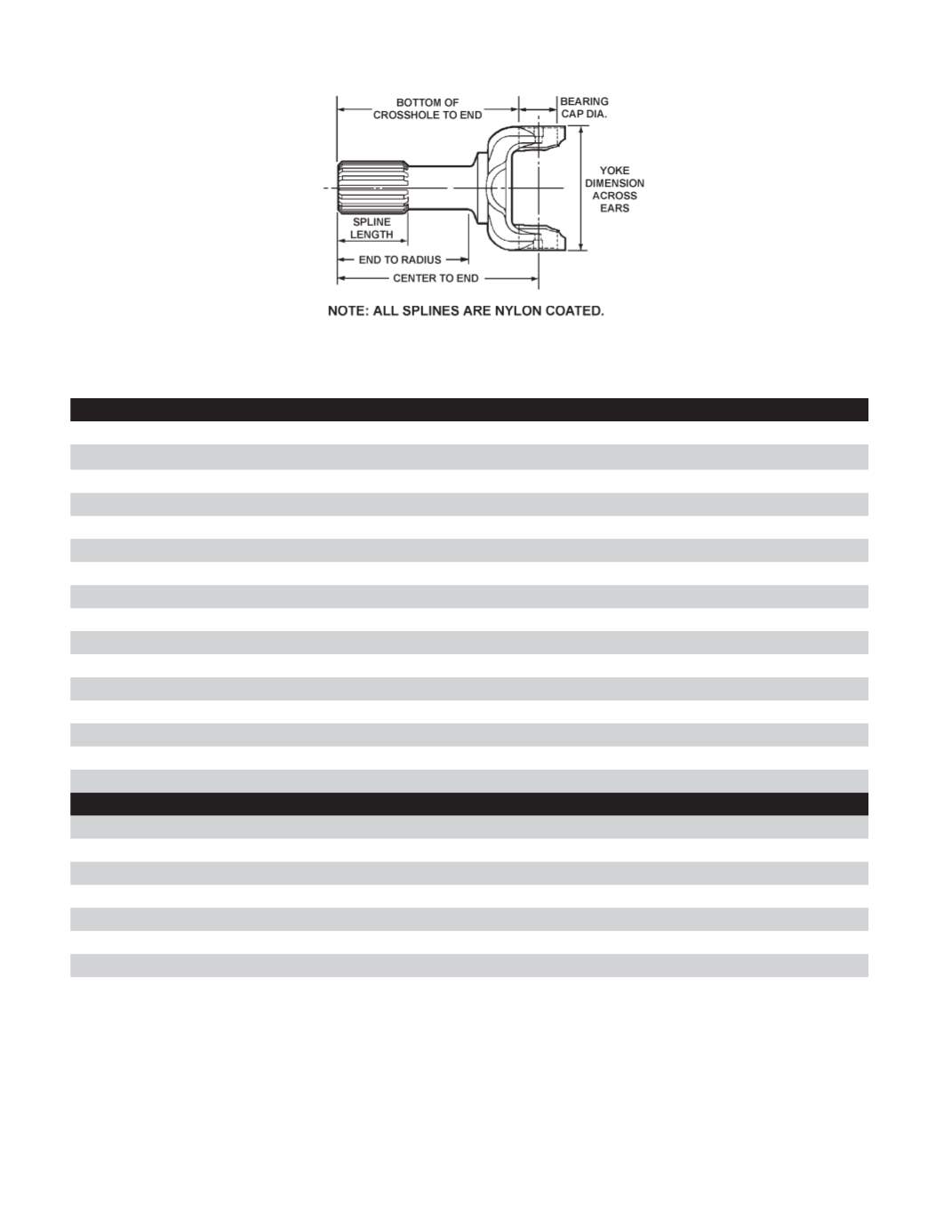

SHAFT YOKES — ROUND BEARINGS
Spline Size
Center to
End
Spline
Length End to Radius
Yoke Dimension
Across Ears
Bearing Cap
Diameter
Bottom of
Crosshole
to End
Joint
Angle
Part Number
17N SERIES U-JOINT KIT: M280X or CP280X
2.50” - 16
8.16"
3.00"
5.22"
6.09"
1.94"
7.19"
31°
17N-82-1211
2.50” - 16
9.50"
3.50"
6.88"
6.09"
1.94"
8.53"
17NYSM40-122
2.50” - 16
10.03"
3.50"
6.69"
6.09"
1.94"
9.06"
31°
17N-82-1171-1
2.50” - 16
10.66"
3.50"
7.31"
6.09"
1.94"
9.69"
31°
17N-82-1171-12
2.50” - 16
11.16"
3.50"
7.81"
6.09"
1.94"
10.19"
31°
17N-82-1171-2
2.50” - 16
12.12"
2.73"
11.15"
6.09"
1.94"
11.15"
45°
17NYSM40-177
2.50” - 16
13.00"
3.50"
9.59"
6.09"
1.94"
12.03"
31°
17N-82-1171-5
2.50” - 16 13.13”
3.23”
8.88”
6.09”
1.94”
12.16”
45°
17NYSM40-169
2.50” - 16
13.16"
4.00"
9.47"
6.09"
1.94"
12.19"
31°
17N-82-1091-2
2.50” - 16
13.59"
3.23"
9.34"
6.09"
1.94"
12.62"
45°
17NYSM40-173
2.50” - 16
14.41"
3.73"
10.16"
6.09"
1.94"
13.44"
45°
17NYSM40-172
2.50” - 16
14.75"
4.00"
9.94"
6.09"
1.94"
13.78"
45°
17N-82-1061-8
2.50” - 16
15.03"
4.00"
10.22"
6.09"
1.94"
14.06"
45°
17N-82-1061-3
2.50” - 16
16.28"
3.73"
11.47"
6.09"
1.94"
15.31"
45°
17NYSM40-170
2.50” - 16
16.88"
4.00"
12.06"
6.09"
1.94"
15.91"
45°
17N-82-1061-4
2.50” - 16
17.50"
4.00"
12.69"
6.09"
1.94"
16.53"
45°
17N-82-1061-9
20R SERIES U-JOINT KIT: CP20RPLS
2.50” - 16
13.45"
3.45"
9.42"
7.00"
2.06"
12.42"
42°
20RYSM40-47
2.50” - 16 13.70”
3.45’
9.42”
7.00”
2.06”
12.67”
42°
20RYSM40-48
2.50” - 16
14.20"
3.45"
9.73"
7.00"
2.06"
13.17"
42°
20RYSM40-49
2.50” - 16
14.70"
3.45"
10.23"
7.00"
2.06"
13.67"
42°
20RYSM40-50
2.50” - 16
15.20"
3.45"
10.73"
7.00"
2.06"
14.17"
42°
20RYSM40-51
2.50” - 16
15.70"
3.45"
11.23"
7.00"
2.06"
14.67"
42°
20RYSM40-52
2.50” - 16
16.20"
3.45"
11.73"
7.00"
2.06"
15.17"
42°
20RYSM40-53
