Qty. Per
Tandem
Kit
Qty. Per
Tandem
Kit
Components
Components

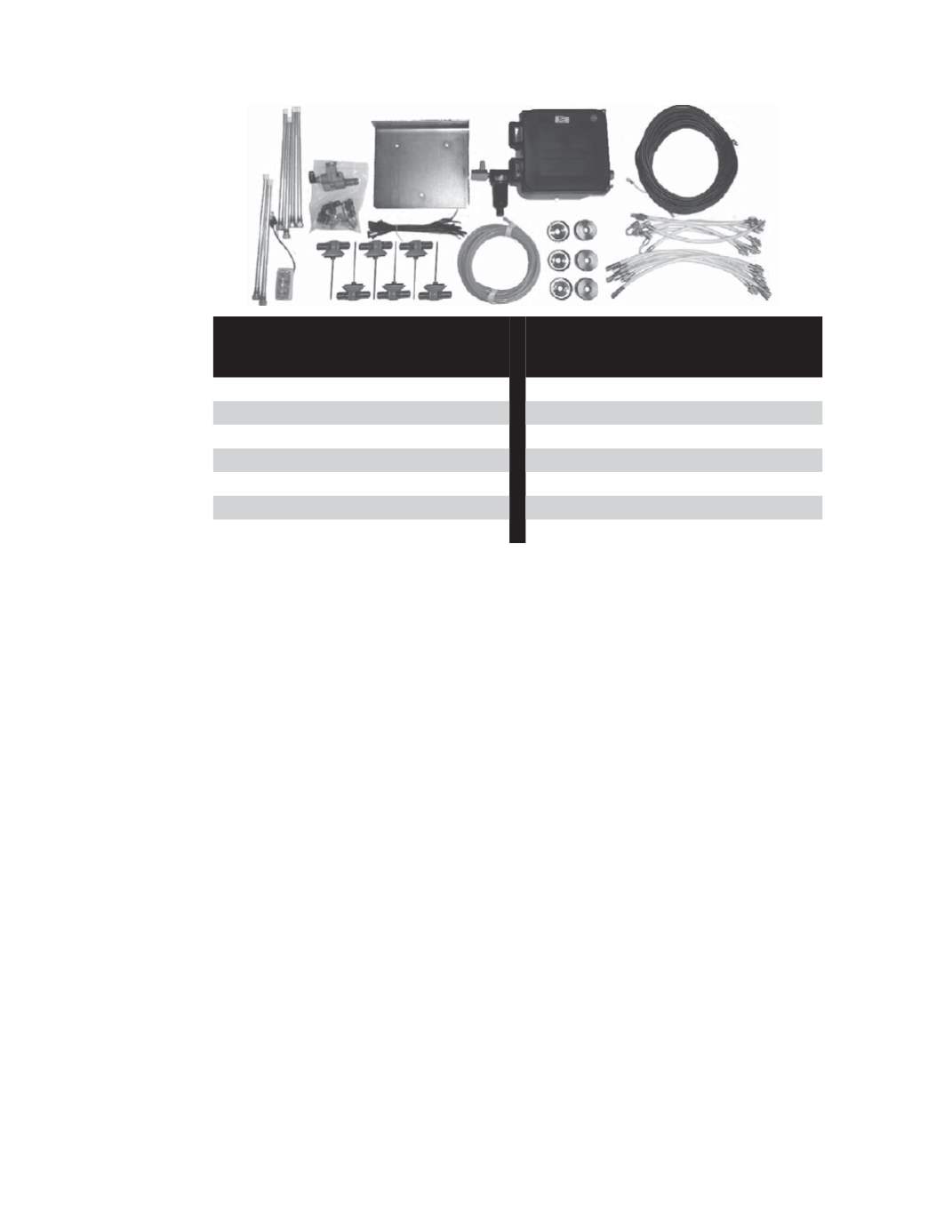

1 Control box with lid
4 Stators
1 Control box bracket
4 Press plugs with adhesive and towelettes
Bulk Air tubing
4 Flex hoses for inside tire
Bulk Electrical cable
4 Flex hoses for outside tire
Bulk Nylon tie straps
1 Pressure protection valve
1 Trailer light with hardware
1 Miscellaneous fitting and hardware kit
4 Through-tees with flappers and shields
MERITOR TIRE INFLATION SYSTEM RETROFIT KIT
How to Specify Retrofit Kits:
1. Determine axle manufacturer and spindle style - straight or tapered. If the axle was MTIS prepped at factory, use MTIS Prepped Kit (less press
plugs and stators).
2. Identify wheel size and determine axle count. Use the charts below to select the correct retrofit kit.
3. See Page 8 to select the appropriate style of hubcaps (hubcaps included in full ThermALERT™ kits) .
4. Determine hub material - Ductile Iron or Aluminum.
NOTE:
All retrofit kits are pre-set to 100psi. Please consult the MTIS Maintenance and Installation Manual (MM14P) for additional details.
Retrofit Kit Series:
Straight Spindle
31955 Series
Holland
®
ProPar™
31975 Series
Meritor TP, TB (1998 and later), WP, Hendrickson
®
HP - 2.75”
32405 Series
Meritor TB (before 1998) - 2.95”
32595 Series
Sudisa
®
12-R
32815 Series
Dana
®
P22, Hendrickson HP - 2.50”
61151 Series
Meritor TL - 2.50”
H1975 Series
ThermALERT™ for Meritor TP, TB (1998 and later), WP, Hendrickson HP - 2.75”
Tapered Spindle
31924 Series
Dana/Eaton
®
D22 Solid Spindle (See page 7 for drill jig details.)
31935 Series
Ingersoll
®
F22
31965 Series
Meritor TN/TQ, RN/RQ, Hendrickson HN, Dana/Eaton D22 Hollow Spindle
32375 Series
Holland Trade Note: check diameter of opening to determine kit.
32645 Series
Sudisa 11-M
H1965 Series
ThermALERT™ for Meritor TN/TQ, RN/RQ, Hendrickson HN, Dana/Eaton D22 Hollow Spindle
MTIS Prepped Axles
32712 Series
All Manufacturers (does not include Press Plugs and Stators)
H2712 Series
ThermALERT™ for All Manufacturers (does not include ThermALERT™ Press Plugs and Stators)
