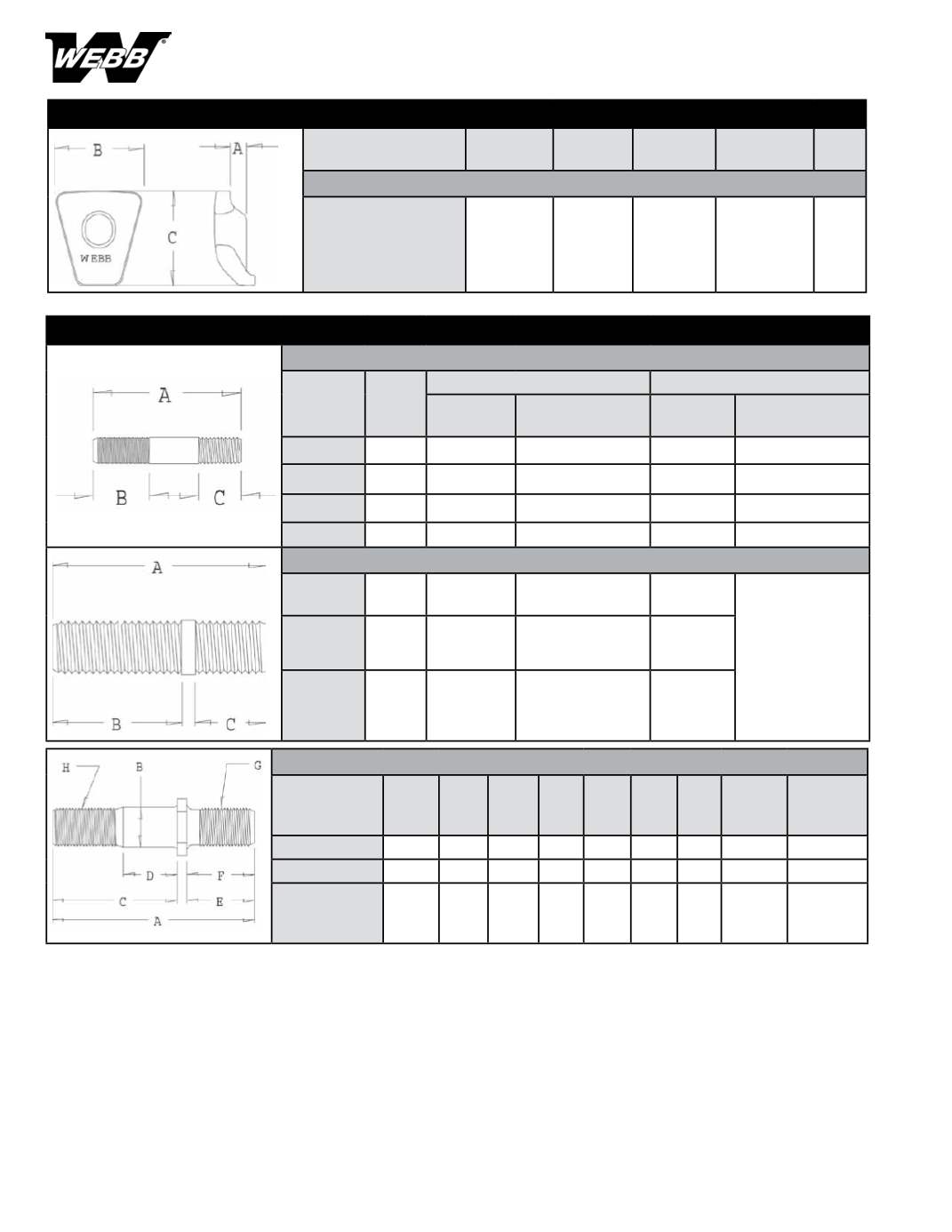

Rim Clamps (Continued)
Part Number
(A)
Dim
(B)
Dim
(C)
Dim
(D)
Stud Dim
For Single Tire Spoke Wheels
16177
For 8.0 Max Rims
0.40
2.63
2.72
0.75
Studs
Drive Studs
Part
Number
(A)
Nut End
Wheel/Hub End
Thread
(B)
Thread Length Thread
(C)
Thread Length
152030 3.00 1/2”-20
1.00
1/2”-13
1.00
156226 2.62 9/16”-18
1.12
9/16”-12
0.81
161832 3.50 5/8”-18
1.34
5/8”-11
1.00
175032 3.25 3/4”-16
1.25
3/4”-10
1.12
Rim Studs
Part
Number
(A)
(B)
Nut End
(C)
Wheel End
Thread
171027 3.00
1.83
0.97
3/4”-10
171028 3.31
1.93
0.97
3/4”-10
Shoulder Studs
Part
Number
Color (A)
(B)
(C) (D) (E) (F)
(G)
Thread
(H)
Thread
139902 (RH) Black 4.00 0.78 2.47 1.06 1.34 1.08 3/4”-16 3/4”-16
139913 (LH) Green 4.00 0.78 2.47 1.06 1.34 1.08 3/4”-16 3/4”-16
183101 (LH)** Green 4.88 0.78 3.34 1.88 1.35 1.09 3/4”-16 3/4”-16
COMPONENTS
