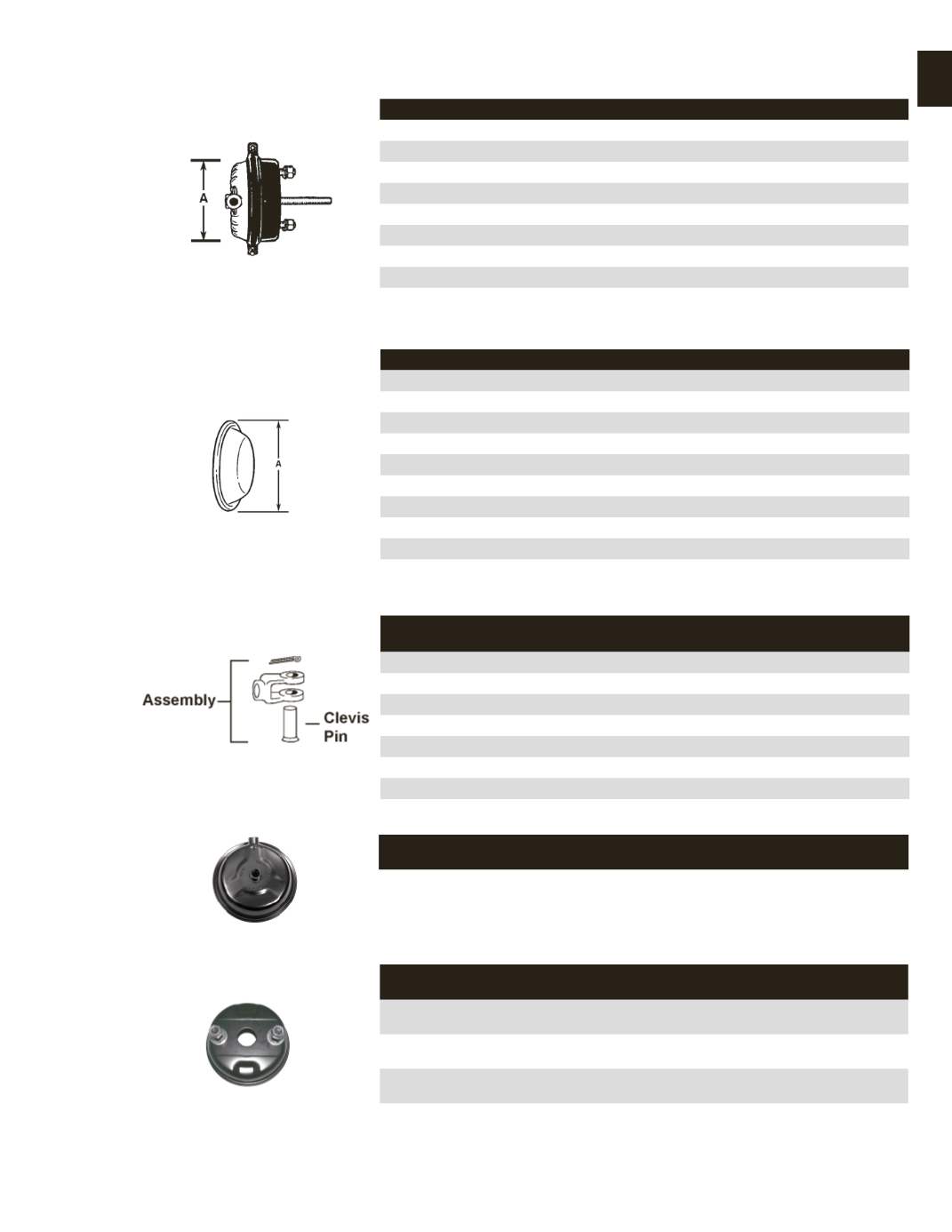

HALDEX CAM SPRING BRAKES AND COMPONENTS
BRAKE SERVICE CHAMBERS FOR S-CAM BRAKES
EUCLID NO.
REPLACES HALDEX NO.
A
MODEL NO.
PUSH ROD THREAD SIZE
E-09S
SC09
4”
Type 9
1/2”-20
E-12S
SC12
4”
Type 12
1/2”-20
E-16S
SC16
4-19/32”
Type 16
1/2”-20
E-20S
SC20
7”
Type 20
5/8”-18
E-24S-L
SC24L
7-1/2”
Type 24
5/8”-18
E-24S-XL
SC24XL
7-13/32”
Type 24
5/8”-18
E-24S
SC24
7-1/2”
Type 24
5/8”-18
E-30S
SC30
8-13/64”
Type 30
5/8”-18
E-36S
SC36
9-5/16”
Type 36
5/8”-18
BRAKE SERVICE CHAMBER DIAPHRAGMS - Nylon Fabric Reinforced Rubber
EUCLID NO.
FOR SERVICE CHAMBER
“A” DIAMETER
E-12727
T-24XL
7”
E-12729
T-09
5-1/8”
E-12730
T-12
5-15/32”
E-12731
T-16
6-5/32”
E-12732
T-20
6-9/16”
E-12733
T-30
7-7/8”
E-12734
T-36
8-1/2”
E-12771
T-16L
6-5/32”
E-12772
T-20L
6-9/16”
E-12773
T-30L
7-7/8”
CLEVIS ASSEMBLIES AND CLEVIS PINS
EUCLID NO.
REPLACES
HALDEX NO.
DESCRIPTION
CLEVIS THREAD
SIZE
CLEVIS PIN DIA.
E-12735
CF7 Clevis Assy. - Forged
5/8”-18
1/2”
E-12756
CF1 Clevis Assy. - Forged
1/2”-20
1/2”
E-12757
CF2 Clevis Assy. - Forged
5/8”-18
1/2”
E-12758
CF5 Clevis Assy. - Forged
M16 x 1.5
14mm
E-12759
CF6 Clevis Assy. - Forged
5/8”-18
1/2”
E-12760
CF9 Clevis - Remote
E-12761
CS2 Clevis Assy. - Stamped
5/8”-18
1/2”
PRESSURE HOUSING
EUCLID NO.
REPLACES
HALDEX NO.
TYPE
STROKE
APPLICATION INFORMATION
E-12777
PH30
T-30
2.50” (64mm)
3/8”-18 NPTF air inlet
SERVICE HOUSINGS
EUCLID NO. REPLACES
HALDEX NO.
STROKE
COMMENTS APPLICATION INFORMATION
E-12778
SBH24L
2.25”/2.50”
(57/64mm)
Includes hardware 9 gauge with 40mm hole
E-12779
SBH24XL 3.00” (76mm) Includes hardware 9 gauge with 40mm hole
E-12780
SBH30
2.50” (64mm) Includes hardware 9 gauge
E-12781
SBH30L
3.00” (76mm) Includes hardware 9 gauge with 40mm hole
