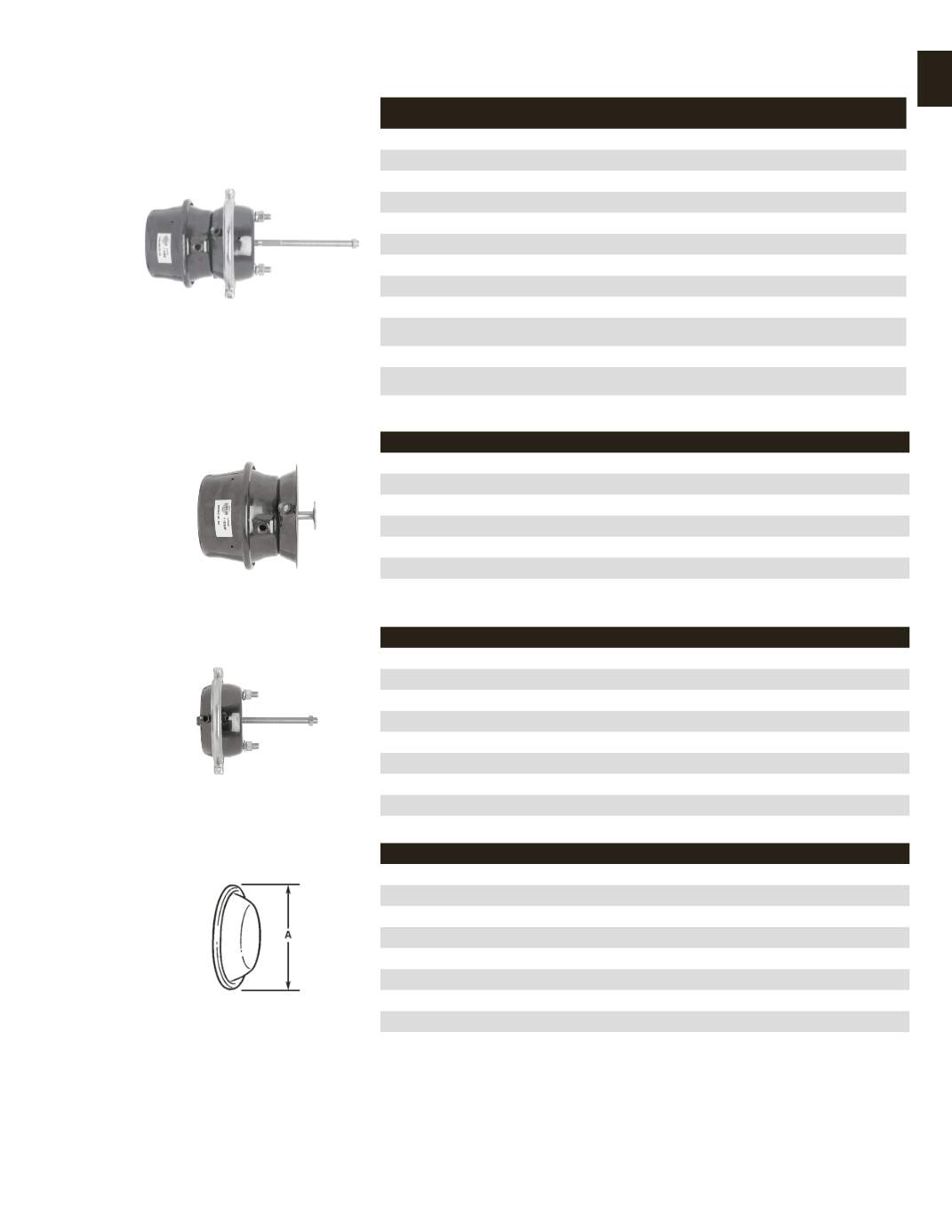

EUCLID BRANDED CAM SPRING BRAKES AND COMPONENTS
SEALED SPRING BRAKE COMBINATION UNITS FOR S-CAM BRAKES
EUCLID NO.
MODEL
NO.
PUSH ROD
THREAD SIZE
PUSH ROD
LENGTH
NOTES
E-BC2024C
2024 5/8”-18
E-BC2424C-L
2424 5/8”-18
Long Stroke (2-1/2”)
E-BC2430C-EL
2430 5/8”-18
Extra Long Stroke (3”)
E-BC2430C-L
2430 5/8”-18
Long Stroke (2-1/2”)
E-BC3030C-EL
3030 5/8”-18
Extra Long Stroke (3”)
E-BC3030C
3030 5/8”-18
E-BC3036C
3036 5/8”-18
E-BC3636C
3636 5/8”-18
E-INT3030C-1
3030 5/8”-18 8-5/32” INTRAAX
®
Low Mount
E-INT3030C-1EL
3030 5/8”-18 8-21/32” INTRAAX
®
Low Mount. Extra Long
Stroke (3”)
E-INT3030C-2
3030 5/8”-18 12-5/16” INTRAAX
®
Top Mount
E-INT3030C-2EL
3030 5/8”-18 12-13/16” INTRAAX
®
Top Mount. Extra Long
Stroke (3”)
SEALED SPRING BRAKE PIGGYBACK UNITS FOR S-CAM BRAKES
EUCLID NO.
MODEL NUMBER
NOTES
E-BC2024P
2024
E-BC2424P
2424
E-BC2430P-L
2430
Long Stroke (2-1/2”)
E-BC3030P-EL
3030
Extra Long Stroke (3”)
E-BC3036P
3036
E-BC3636P
3636
E-BC3030P-L
3030
Long Stroke (2-1/2”)
BRAKE SERVICE CHAMBERS FOR S-CAM BRAKES
EUCLID NO.
MODEL NO.
PUSH ROD THREAD SIZE
NOTES
E-BC12S
Type 12
1/2”-20
E-BC16S
Type 16
1/2”-20
E-BC20S
Type 20
5/8”-18
E-BC24S-EL
Type 24
5/8”-18
Extra Long Stroke (3”)
E-BC24S
Type 24
5/8”-18
E-BC30S-EL
Type 30
5/8”-18
Extra Long Stroke (3”)
E-BC30S
Type 30
5/8”-18
E-BC36S
Type 36
5/8”-18
BRAKE SERVICE CHAMBER DIAPHRAGMS - Nylon Fabric Reinforced Rubber
EUCLID NO.
FOR SERVICE CHAMBER
“A” DIAMETER
E-11888
Type 24 Extra Long Stroke
7-1/8”
E-11889
Type 30 Extra Long Stroke
7-7/8”
E-8890
Type 16 Cam
6-7/32”
E-8891
Type 20 Cam
6-1/2”
E-8892
Type 24 Cam
7-1/8”
E-8893
Type 24 Long Stroke
7-1/8”
E-8894
Type 30 Cam
7-7/8”
E-8895
Type 36 Cam
8-3/4”
