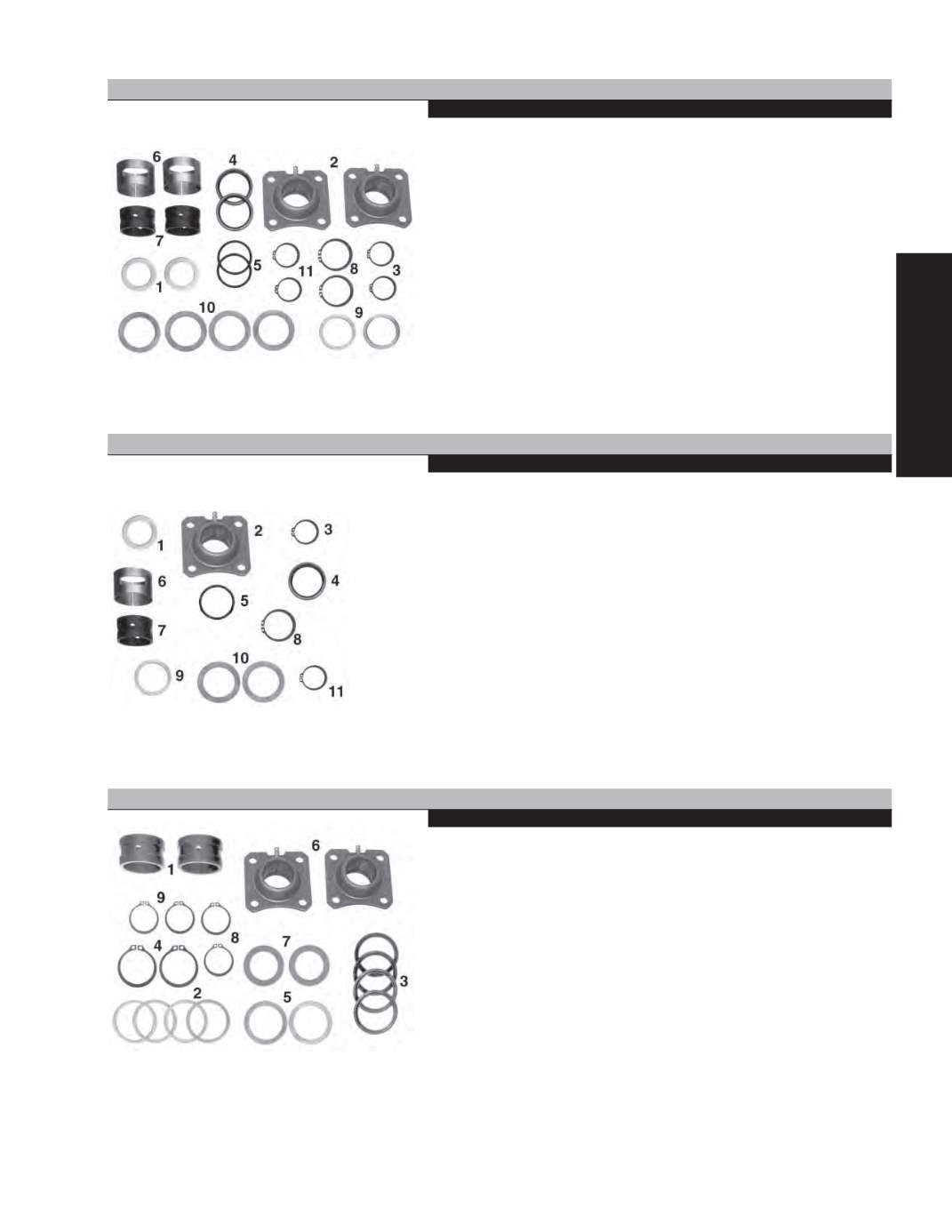

CAMSHAFTS
CAMSHAFT REPAIR KITS
E-3520AHD For 16-1/2” Dia. Cam Brakes
EUCLID NO.
ITEM QTY.
DESCRIPTION
APPLICATION & GENERAL INFO.
E-564
1 2 Camshaft Spacer Washer
FOR LATE MODEL MERITOR 4000-
6000 SERIES TRAILER AXLES
With 1-5/8” Dia. Camshafts. Also
used for 12-1/4” “Q” Brakes.
Contains Lock Rings for Camshafts
with narrow or wide grooves. Same as
E-3520A except contains E-1318AHD
Heavy-Duty Support Assembly.
E-1318AHD
2 2 Camshaft Support Bracket
E-801
3 2 Lock Ring
E-2405
4 2 Camshaft Seal
E-2406
5 2 Camshaft Seal
E-2407
6 2 Camshaft Outer Bushing
E-2408
7 2 Camshaft Inner Bushing
E-1569
8 2 Camshaft Lock Ring
E-1113
9 2 Washer
E-2411A
10 4 Camshaft Spacer Washer
E-5093
11 2 Camshaft Lock Ring
E-3520AHD-2 For 16-1/2” Dia. Cam Brakes
EUCLID NO.
ITEM QTY.
DESCRIPTION
APPLICATION & GENERAL INFO.
E-564
1 1 Camshaft Spacer Washer
FOR LATE MODEL MERITOR 4000-
6000 SERIES TRAILER AXLES
With 1-5/8” Dia. Camshafts.
Also used for 12-1/4” “Q”
Brakes. Contains Lock Rings for
Camshafts w/ narrow or wide
grooves. Same as E-3520A-2 exc.
contains E-1318AHD Heavy-Duty
Support Assy. Half kit incl exactly
half of Kit E-3520A for one wheel
end
E-1318AHD
2 1 Camshaft Support Bracket
E-801
3 1 Lock Ring
E-2405
4 1 Camshaft Seal
E-2406
5 1 Camshaft Seal
E-2407
6 1 Camshaft Outer Bushing
E-2408
7 1 Camshaft Inner Bushing
E-1569
8 1 Camshaft Lock Ring
E-1113
9 1 Washer
E-2411A
10 2 Camshaft Spacer Washer
E-5093
11 1 Camshaft Lock Ring
E-3989AHD For 16-1/2” Dia. Cam Brakes
EUCLID NO.
ITEM QTY.
DESCRIPTION
APPLICATION & GENERAL INFO.
E-2690A
1 2 Camshaft Bushing
FOR LATE MODEL MERITOR 4000-
6000 SERIES TRAILER AXLES
With 1-5/8” Dia. Camshafts.
Alternate Kit for E-3520AHD.
Contains Lock Rings for
Camshafts with narrow or wide
grooves. Contains E-1318AHD
Heavy- Duty Support Assembly.
E-2411A
2 4 Camshaft Spacer Washer
E-3991
3 4 Camshaft Seal
E-1569
4 2 Camshaft Lock Ring
E-564
5 2 Camshaft Spacer Washer
E-1318AHD
6 2 Camshaft Support Bracket
E-1113
7 2 Washer
E-801
8 2 Lock Ring
E-5093
9 2 Camshaft Lock Ring
