SERVICE PARTS INSTRUCTIONS
SERVICEPARTS INSTRUCTIONS
SERVICEPARTS INSTRUCTIONS
TP-0760
Issued 06-07
Service Parts
Instructions
Service Parts
Instructions
Installing Caliper Bumper Gap
Shims on All-Makes Hydraulic
Disc Brakes
Kit E-6891
TP-0760Issued 6-071 Service Parts InstructionsHazard Alert Messages
Read and observe all Warning and Caution hazard alert messages in
this publication. They provide information that can help prevent
serious personal injury, damage to components, or both.
WARNING
To prevent serious eye injury, always wear safe eye protection
when you perform vehicle maintenance or service.
Park the vehicle on a level surface. Block the wheels to
prevent the vehicle from moving. Support the vehicle with
safety stands. Do not work under a vehicle supported only by
jacks. Jacks can slip and fall over. Serious personal injury and
damage to components can result.
ASBESTOS AND NON-ASBESTOS
FIBERS WARNING
Some brake linings contain asbestos fibers, a cancer and lung
disease hazard. Some brake linings contain non-asbestos
fibers, whose long-term effects to health are unknown. You
must use caution when you handle both asbestos and
non-asbestos materials.
How to Obtain Kits
Call ArvinMeritor’s Commercial Vehicle Aftermarket at
888-725-9355.
Kit E-6891
Part Quantity
Shims for 0.036-0.055s
(0.914-1.397 mm) Gap — 682
2
Shims for 0.056-0.075s
(1.422-1.905 mm) Gap — 683
2
Shims for 0.076-0.095s
(1.93-2.413 mm) Gap — 684
2
Shims for 0.096-0.115s
(2.438-2.921 mm) Gap — 685
2
Determine if Shims are Required
1. Wear safe eye protection.
2. Park the vehicle on a level surface. Block the wheels to prevent
the vehicle from moving.
3. Remove the spring, retainer and bolt from the caliper. Figure 1.

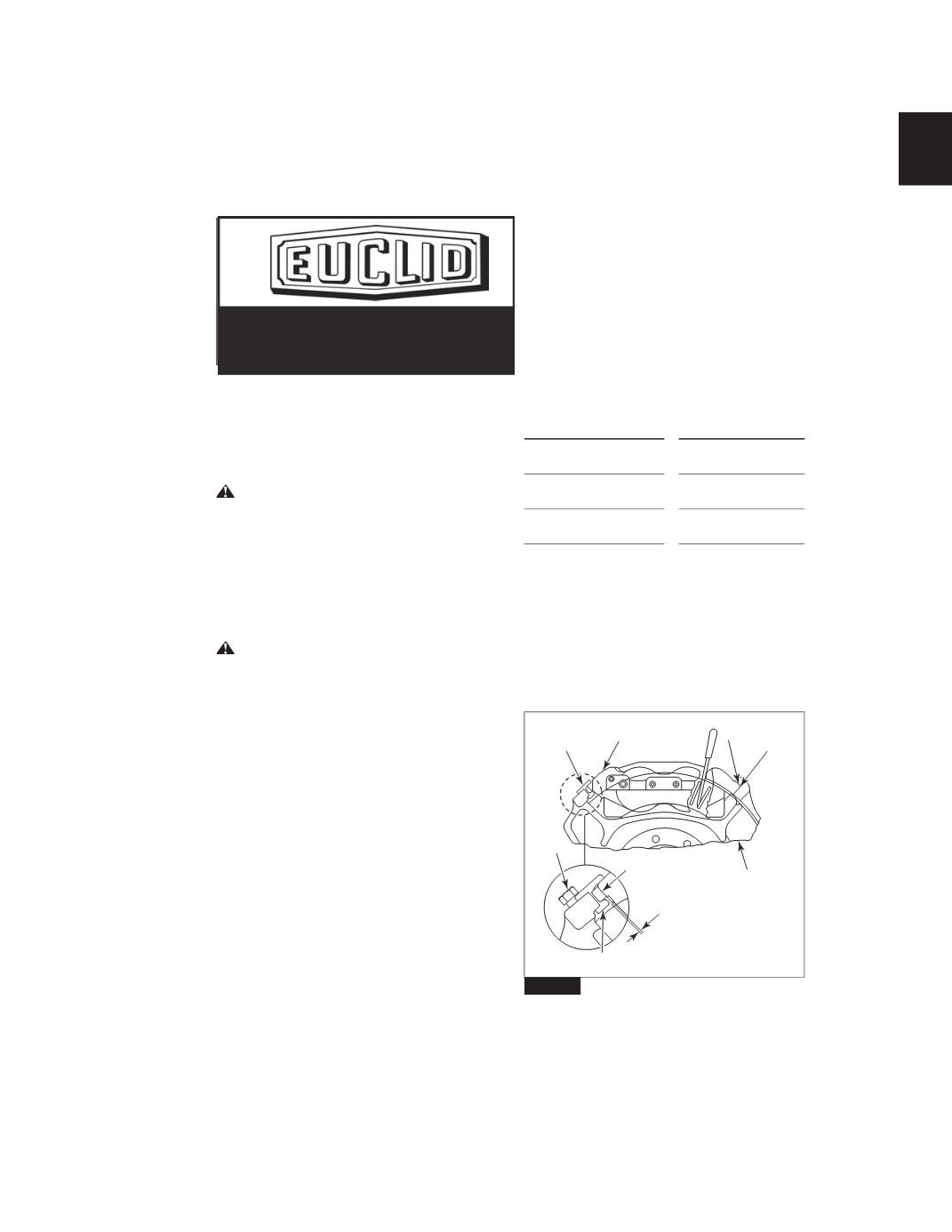

Figure 1
Figure 1
4006585a
SUPPORT
RAIL
SUPPORT
RAIL
SUPPORT
A CALIPER
BOLT
SPRING
GAP B
0.010"-0.035"
(0.254-0.889 MM)
RETAINER
