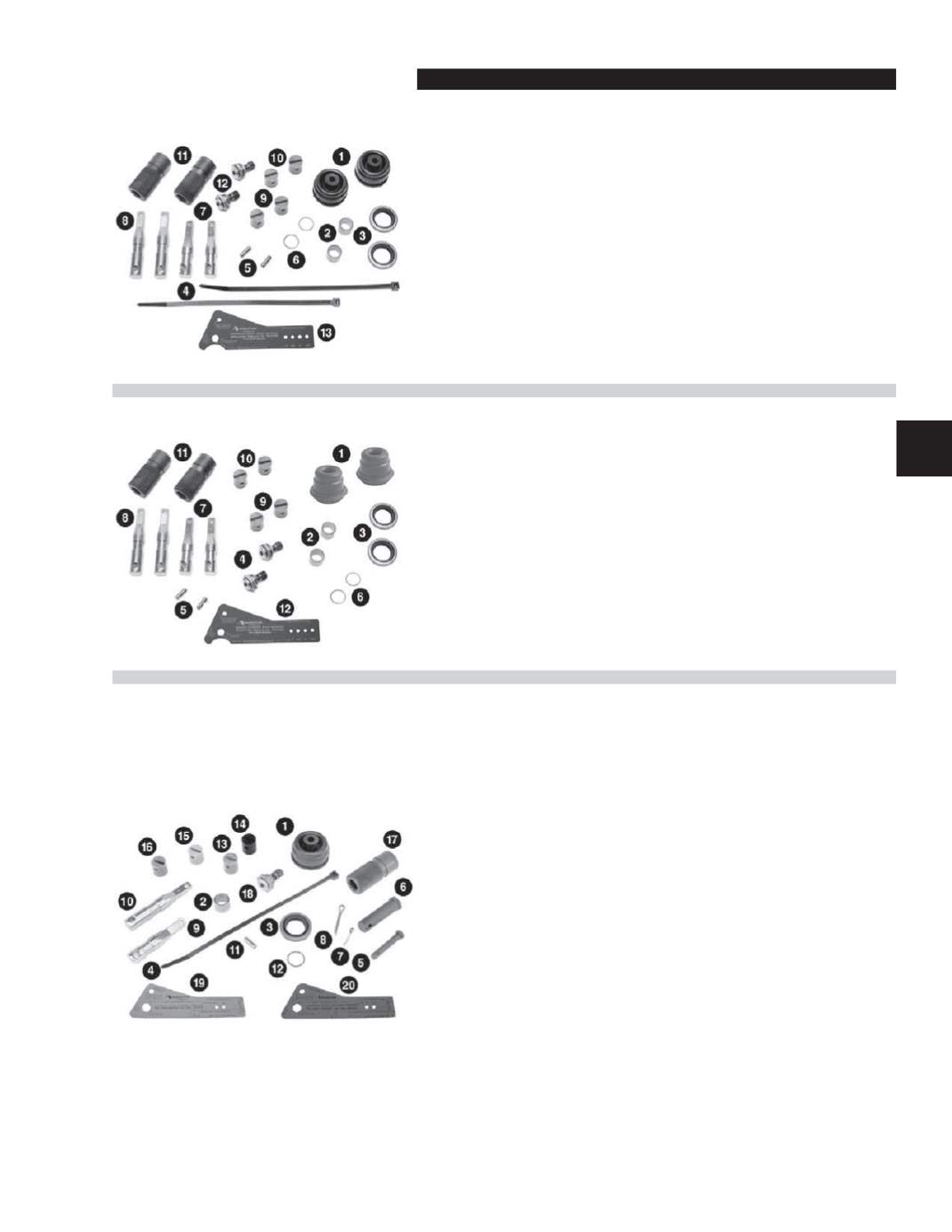

AUTOMATIC SLACK ADJUSTER (STROKE SENSING) REPAIR KITS
ITEM QTY PART NUMBER
DESCRIPTION
APPLICATION INFORMATION
R810003 Meritor ASA
1 2
2260-S-1111
Boot
2 2
1225-C-835
Bushing
3 2
A-1205-F-2346
Seal
4 2
2257-N-40
Tie Strap
5 2
1199-U-3739
Pin - Piston Retaining
6 2
1199-V-3740
Retaining Ring - Piston
7 2
2297-F-7208
Rod - Actuator (5”)
8 2
2297-G-7209
Rod - Actuator (5.50”)
9 2
2297-W-3637
Piston - Red
10 2
2230-N-1054
Piston - Yellow
11 2
2297-W-2857
Actuator
12 2
R801700
Pawl Assembly
13 1
2297-B-4786
Truck/Tractor Template
R810003A Meritor ASA
1 2
A-2260-U-1113
Rebuild kit for front ASAs.
Slacks used with 16 thru
30 square inch brake
chambers. One kit contains
enough parts to rebuild two
slack adjusters. New style
with press-in boot.
2 2
1225-C-835
Bushing
3 2
A-1205-F-2346
Seal
4 2
R801700
Pawl Assembly
5 2
1199-U-3739
Pin - Piston Retaining
6 2
1199-V-3740
Retaining Ring - Piston
7 2
2297-F-7208
Rod - Actuator (5”)
8 2
2297-G-7209
Rod - Actuator (5.50”)
9 2
2297-W-3637
Piston - Red
10 2
2230-N-1054
Piston - Yellow
11 2
2297-W-2857
Actuator
12 1
2297-B-4786
Truck/Tractor Template
R810004 Meritor ASA
1 1
2260-S-1111
Boot
Rebuild kit for all ASAs.
One kit contains enough
parts to rebuild one slack
adjuster. Old style with
strap-on boot.
2 1
1225-C-835
Bushing
3 1
A-1205-F-2346
Seal
4 1
2257-N-40
Tie Strap
5 1
19-X-127
Clevis Pin - Small
6 1
19-X-1084
Clevis Pin - Large
7 1
K-235
Cotter Pin - Small
8 1
K-248
Cotter Pin - Large
9 1
2297-F-7208
Rod - Actuator (5”)
10 1
2297-G-7209
Rod - Actuator (5.50”)
11 1
1199-U-3739
Pin - Piston Retaining
12 1
1199-V-3740
Retaining Ring - Piston
13 1
2297-W-3637
Piston - Red
14 1
2297-B-4188
Piston - Black
15 1
2297-H-2842
Piston - Green
16 1
2230-C-159
Blue Piston
17 1
2297-W-2857
Actuator
18 1
R801700
Pawl Assembly
19 1
2297-D-4788
Installation Template
20 1
2297-E-4789
Installation Template
