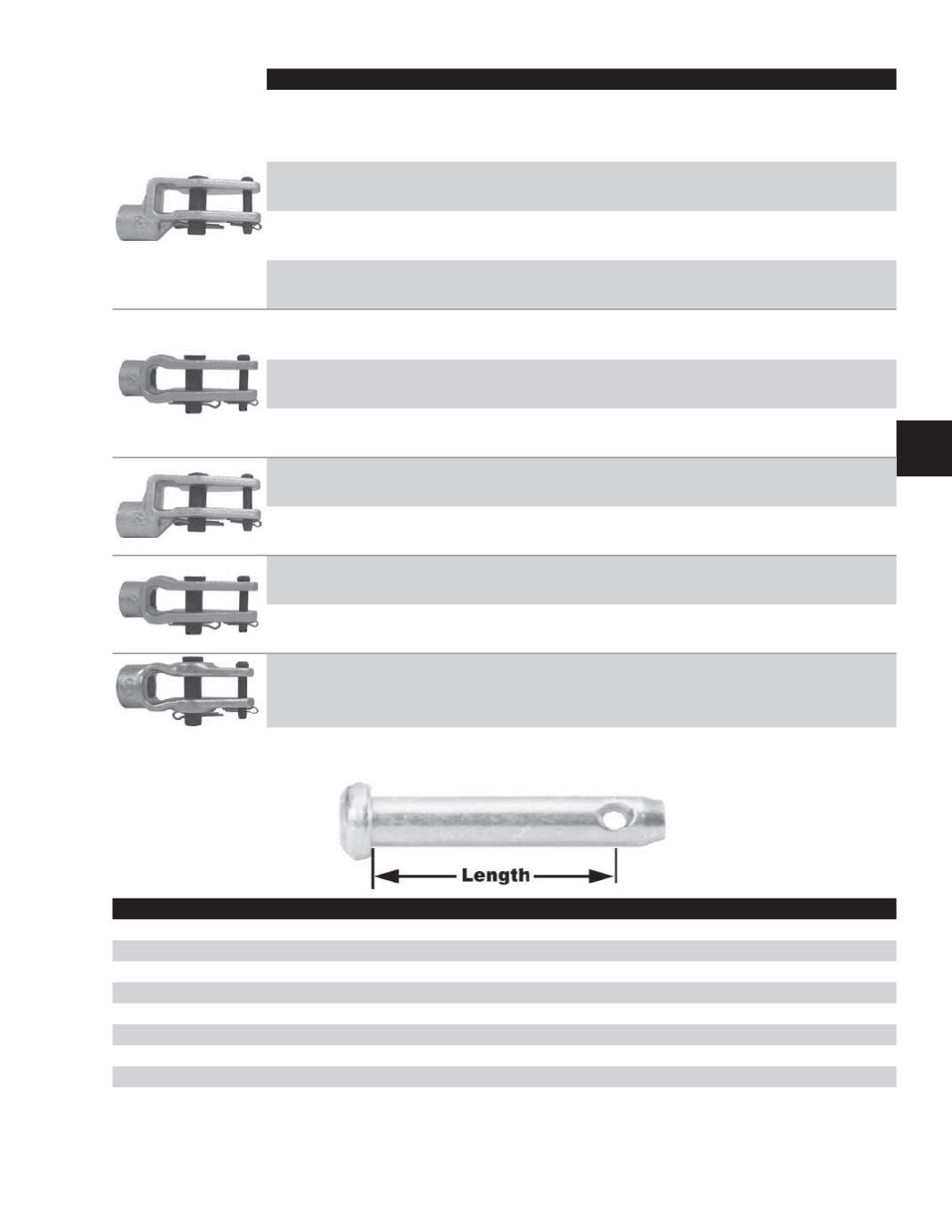

MERITOR ASA (STROKE SENSING) SERVICE PARTS
PART NUMBER CLEVIS TYPE PUSHROD REPLACES
APPLICATION INFORMATION
CLEVISES & CLEVIS KITS
R810015LW
5/8” Offset
1/2”-20
Clevis kit includes Lightweight Clevis, pins, clips and
helper spring (2258-P-1238). For standard type 9, 12
and 16 chambers.
R810016LW
5/8” Offset
1/2”-20
Clevis kit includes Lightweight Clevis, pins, clips and
helper spring (2258-Q-1239). For standard type 9,
12 and 16 chambers.
R810022
5/8” Offset
1/2”-20 E11899 Clevis kit includes Lightweight Clevis, pins and clips.
For long stroke type 9, 12 and 16 chambers.
R810024
5/8” Offset
1/2”-20 E11427A Clevis kit includes Lightweight Clevis, pins and clips.
For standard type 9, 12 and 16 chambers.
R810013LW
Straight
1/2”-20
Clevis kit includes Lightweight Clevis, pins, clips and
helper spring (2258-P-1238). For standard type 9, 12
and 16 chambers.
R810018
Straight
1/2”-20 E11428A Clevis kit includes Lightweight Clevis, pins and clips.
For standard type 9, 12 and 16 chambers.
R810020
Straight
1/2”-20 E11898 Clevis kit includes Lightweight Clevis, pins and clips.
For long stroke type 9, 12 and 16 chambers.
R810023
5/8” Offset
5/8”-18 E11901 Clevis kit includes Lightweight Clevis, pins and clips.
For long stroke type 20, 24, 30 and 36 chambers.
R810025
5/8” Offset
5/8”-18 E11429A Clevis kit includes Lightweight Clevis, pins and clips.
For standard type 20, 24, 30 and 36 chambers.
R810019
Straight
5/8”-18 E11430A Clevis kit includes Lightweight Clevis, pins and clips.
For standard type 20, 24, 30 and 36 chambers.
R810021
Straight
5/8”-18 E11900 Clevis kit includes Lightweight Clevis, pins and clips.
For long stroke type 20, 24, 30 and 36 chambers.
R810012
Straight
3/4”-16 E11431 Clevis kit includes R801716 clevis, pins and clips.
For standard type 20, 24, 30, 36 chambers.
CLEVIS PINS
PART NUMBER HEAD STYLE
LENGTH
DIAMETER
APPLICATION INFORMATION
19-X-127
Round
1-3/16”
1/4”
19-X-1174
Round
1-19/64”
1/4”
19-X-1116
Hex
1-7/32”
1/2”
Use with Lightweight clevis
19-X-45
Round
1-3/8”
1/2”
19-X-1084
Hex
1-1/2”
1/2”
19-X-1173
Round
1-9/16”
1/2”
19-X-1083
Hex
1-5/8”
1/2”
19-X-1085
Round
2-3/32”
1/2”
Must use with 2258-P-1238 or 2258-Q-1239 helper spring.
