DRIVE AXLE HUBS
FOR AXLE MODELS: Dana Spicer J-190S
Eaton 17, 34D, D340
Meritor FL-100, RS-17-140, RS-17-145, RS-17-220, RT-34-145
HUB NO.
DESCRIPTION
TYPE
04-15673-XXX Drive Axle Hub
Outboard Drum
10 Hole
Serrated Studs
INNER BEARING
CUP
CONE
BOLT CIRCLE
47620
47686
11.25”
OUTER BEARING
CUP
CONE
39520
39590

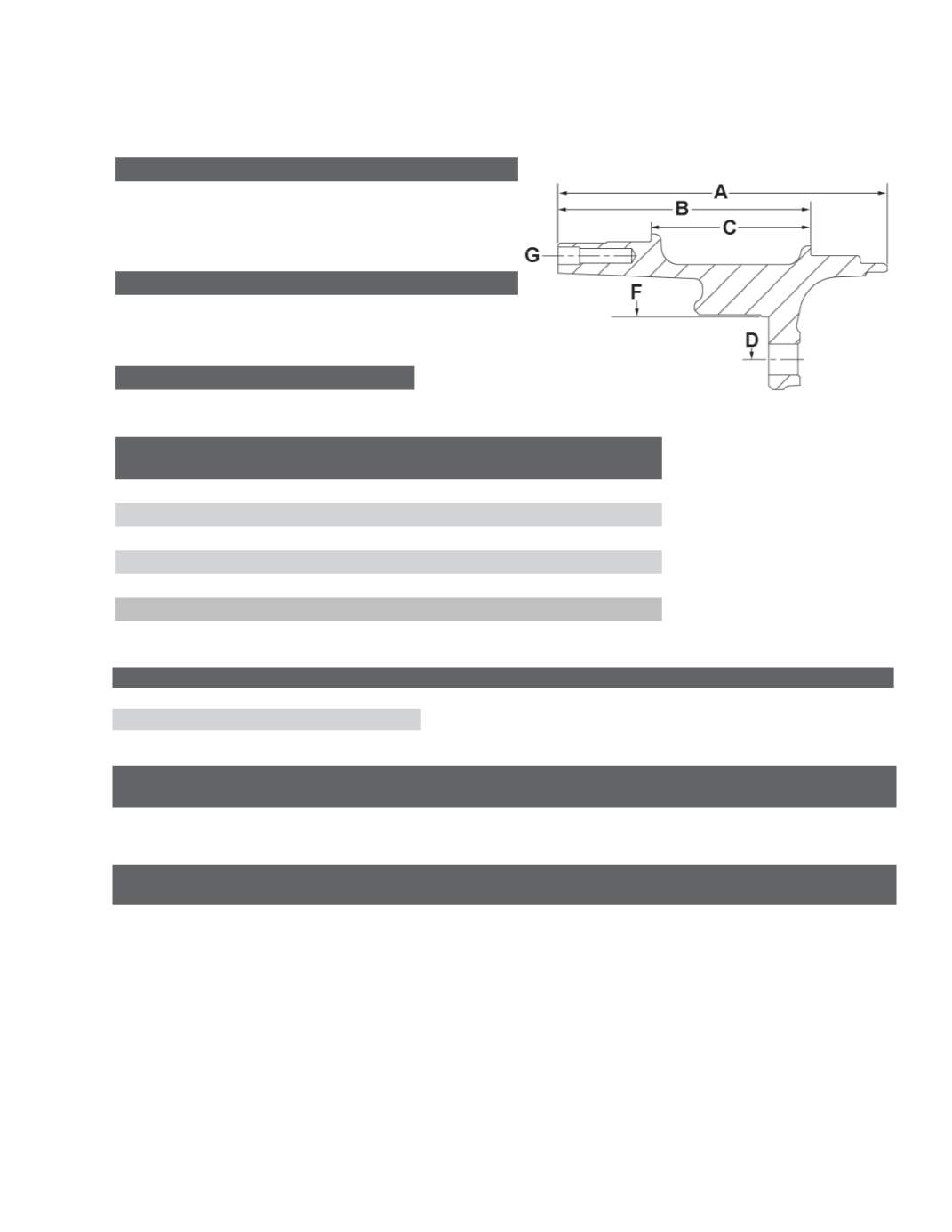

DRAWING
REFERENCE
ITEM
DIMENSION
A
Overall Length
9.531”
B
Outer Hub Cap Face to Inner Bearing Cup Seat
7.309”
C
Distance Between Cups
4.618”
D
Bolt Circle Diameter
11.25”
E
Wheel Stud Quantity
10
F
Pilot Diameter
8.777”
G
Drive Flange Hole Pattern
12, 1/2”-13; 5.25” B.C.
HUB PART NUMBER
ABS RING NUMBER
COMMENTS
04-15673-002
Wheel studs not included
04-15673-003
3237J1258
STUD PILOTED - Hub Assemblies without Drum or Rotor
HUB PART NUMBER
HAND
WHEEL TYPE
DRUM TYPE
WHEEL STUD
NUMBER
DRIVE FLANGE
STUD NUMBER ABS RING NUMBER
04-15673-036
LH
09-002086
08-205741
09-002127
HUB PILOTED - Hub and Drum Assemblies
HUB PART NUMBER WHEEL TYPE
DRUM
TYPE
WHEEL STUD
NUMBER
DRIVE FLANGE
STUD NUMBER
ABS RING
NUMBER DRUM SIZE DRUM NUMBER
DRUM
POSITION
14-15673-1004MTB
Dual Aluminum Cast
09-002003
08-205435 09-002127 16.5 x 7 85-123397-002 Outboard
