DRIVE AXLE HUBS
FOR AXLE MODELS: Dana Spicer J-190S
Eaton 17, 34D, D340
Meritor FL-100, RS-17-140, RS-17-145, RS-17-220, RT-34-145
HUB NO.
DESCRIPTION
TYPE
04-15740-XXX Drive Axle Hub
Outboard Drum
8 Hole
Serrated Studs
INNER BEARING
CUP
CONE
BOLT CIRCLE
47620
47686
10.827”
OUTER BEARING
CUP
CONE
39520
39590

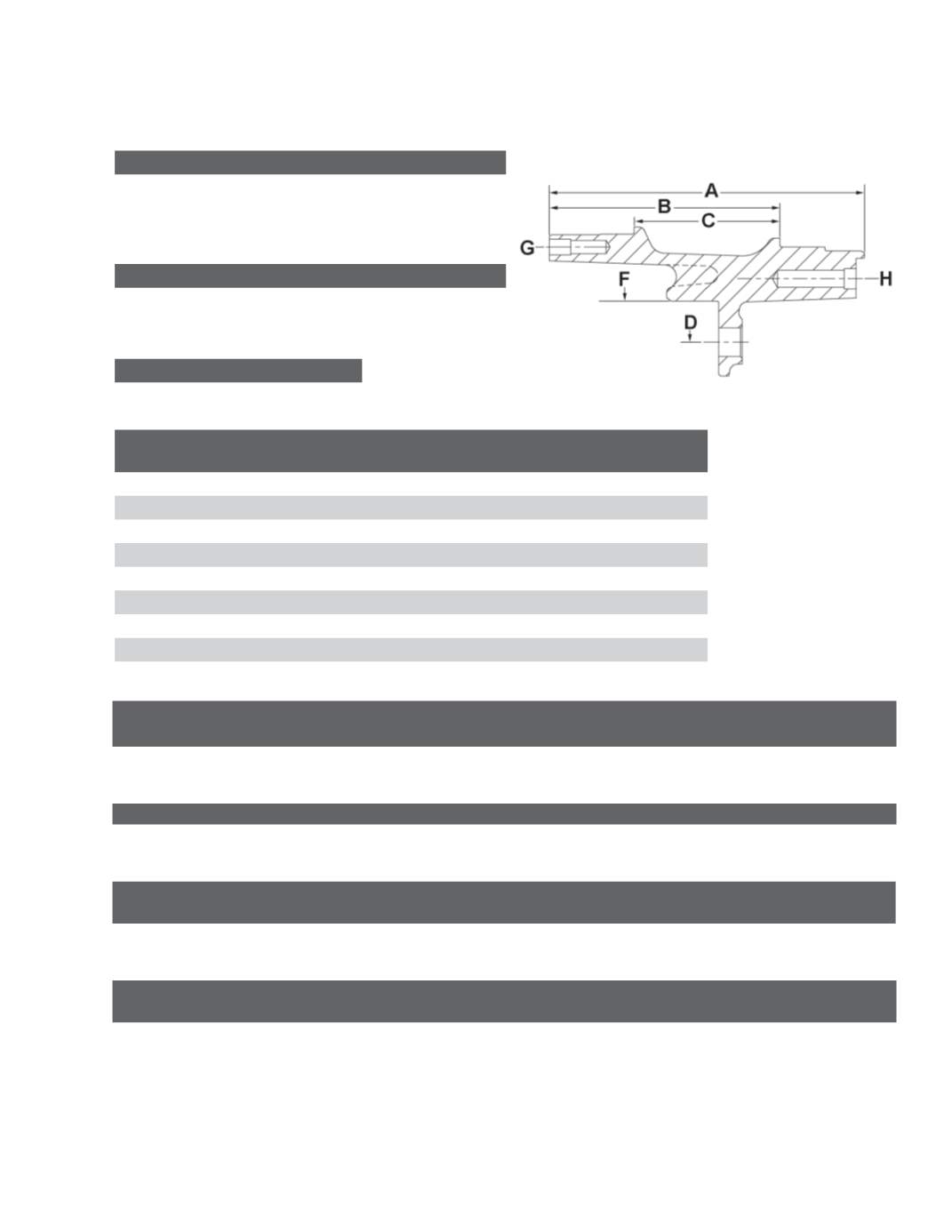

DRAWING
REFERENCE
ITEM
DIMENSION
A
Overall Length
10.01”
B
Outer Hub Cap Face To Inner Bearing Cup Seat
7.32”
C
Distance Between Cups
4.625”
D
Bolt Circle Diameter
10.827”
E
Wheel Stud Quantity
8
F
Pilot Diameter
8.689”
G
Drive Flange Hole Pattern
12, 1/2”-13; 5.25” B.C.
H
Drive Flange Hole Pattern
10, 5/8”-11; 7.25” B.C.
HUB PILOTED - Hub and Rotor Assembly
HUB PART NUMBER WHEEL TYPE
WHEEL STUD
NUMBER
DRIVE FLANGE
STUD NUMBER
ABS RING
NUMBER
ROTOR NUMBER ROTOR O.D.
16-15740-100
09-001811
08-205435
09-002177
23-123498-002
15.38
WHEEL STUDS USED WITH HUB IN ASSEMBLIES
WHEEL STUD NO.
THREAD TYPE SIZE
STYLE
WHEEL TYPE
USE WITH DRUM TYPE
09-001811
Serrated M20 x 1.5
Hub Piloted
DRIVE FLANGE STUDS USED WITH HUB IN ASSEMBLIES
HUB END
NUT END
DRIVE FLANGE STUD OVERALL LENGTH BODY DIAMETER THREAD SIZE THREAD LENGTH THREAD SIZE THREAD LENGTH
08-205435
2.88”
.50”
.50”-13
.83”
.50”-20
.98”
ROTORS USED WITH HUB IN ASSEMBLIES
BOLT HOLES
ROTOR PART NO.
OUTSIDE DIA.
OVERALL DEPTH BOLT CIRCLE DIA.
DIAMETER
NUMBER
PILOT DIA.
23-123498-002
15.380
3.410
7.250
0.656
10
5.964
