DRIVE AXLE HUBS
FOR AXLE MODELS: Dana Spicer J-190S
Eaton 17, 34D, D340
Meritor FL-100, RS-17-140, RS-17-145, RS-17-220, RT-34-145
HUB NO.
DESCRIPTION
TYPE
04-15719-XXX Drive Axle Hub
Outboard Drum
10 Hole
Serrated Studs
INNER BEARING
CUP
CONE
BOLT CIRCLE
47620
47686
11.25”
OUTER BEARING
CUP
CONE
39520
39590

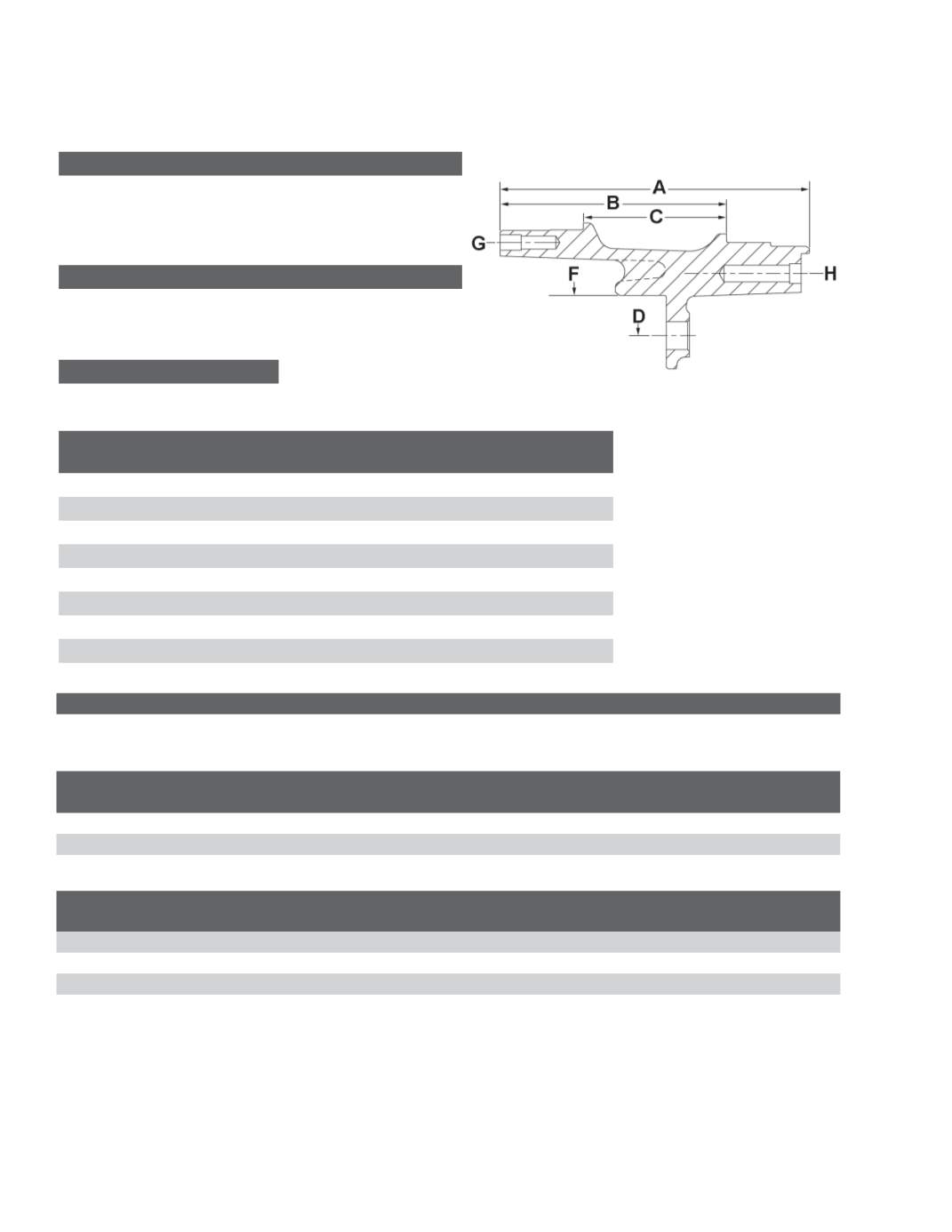

DRAWING
REFERENCE
ITEM
DIMENSION
A
Overall Length
9.795”
B
Outer Hube Cap Face To Inner Bearing Cup Seat
7.306”
C
Distance between Cups
4.618’
D
Bolt Circle Diameter
11.25”
E
Wheel Stud Quantity
10
F
Pilot Diameter
8.65”
G
Drive Flange Hole Pattern
12,1/2”-13; 5.25” B.C.
H
Drum/Rotor Mounting
10, 9;/16”-12; 7.25” B.C.
HUB PART NUMBER
ABS RING NUMBER
COMMENTS
04-15719-002
Wheel studs not included
HUB PILOTED - Hub Assemblies without Drum or Rotor
HUB PART NUMBER HAND
WHEEL TYPE
DRUM TYPE
WHEEL STUD
NUMBER
DRIVE FLANGE
STUD NUMBER ABS RING NUMBER
04-15719-1004
RH
09-002004
08-205741
04-15719-1005
RH
09-001989
08-205435
STUD PILOTED - Hub and Rotor Assembly
HUB PART NUMBER HAND WHEEL TYPE
WHEEL STUD
NUMBER
DRIVE FLANGE
STUD NUMBER
ABS RING
NUMBER ROTOR NUMBER
ROTOR OUTSIDE
DIAMETER
16-15719-076
LH
09-002048
08-205741
23-122729-002
15.38
16-15719-203
RH
09-002047
08-205741
23-123557-009
15.38
16-15719-204
LH
09-002048
08-205741
23-123557-009
15.38
