DRIVE AXLE HUBS
FOR AXLE MODELS: Dana Spicer J-190S
Eaton 17, 34D, D340
Meritor “L” Series FL-100, RS-17-140, RS-17-145, RS-17-220, RT-34-145
HUB NO.
DESCRIPTION
TYPE
04-15712-XXX Drive Axle Hub
Outboard Drum
10 Hole
Serrated Studs
INNER BEARING
CUP
CONE
BOLT CIRCLE
47620
47686
11.25”
OUTER BEARING
CUP
CONE
39520
39590

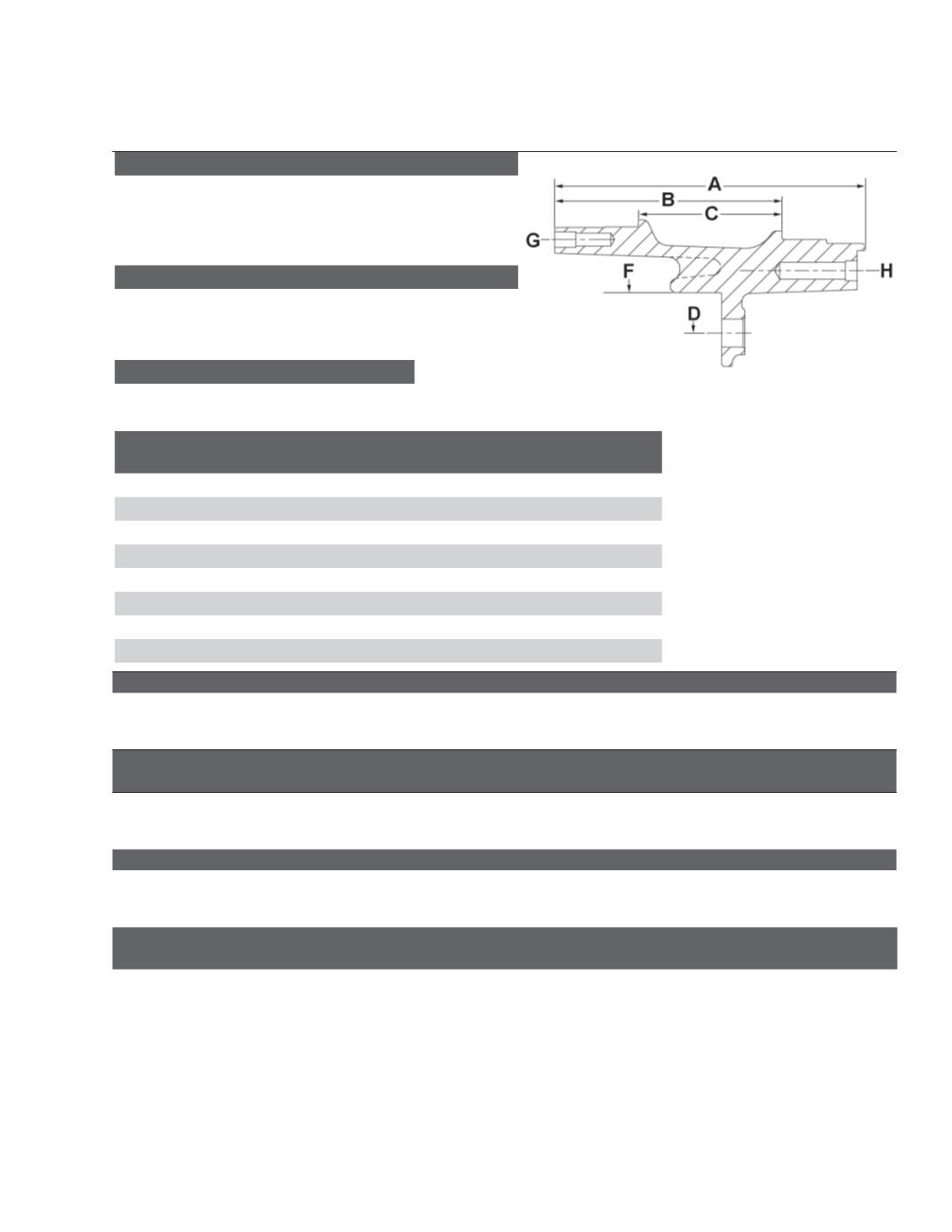

DRAWING
REFERENCE
ITEM
DIMENSION
A
Overall Length
9.531”
B
Outer Hub Cap Face to Inner Bearing Cup Seat
7.309”
C
Distance Between Cups
4.618”
D
Bolt Circle Diameter
11.25”
E
Wheel Stud Quantity
10
F
Pilot Diameter
8.777”
G
Drive Flange Hole Pattern
12, 1/2”-13; 5.25” B.C.
H
Drum/Rotor Mounting
HUB PART NUMBER
ABS RING NUMBER
COMMENTS
04-15712-002
Wheel studs not included
HUB PILOTED - Hub Assembly without Drum or Rotor
HUB PART NUMBER HAND
WHEEL TYPE
DRUM TYPE
WHEEL STUD
NUMBER
DRIVE FLANGE
STUD NUMBER ABS RING NUMBER
04-15712-1000
RH
09-001811
08-205741
WHEEL STUDS USED WITH HUB IN ASSEMBLIES
WHEEL STUD NO.
THREAD TYPE SIZE
STYLE
WHEEL TYPE
USE WITH DRUM TYPE
09-001811
Serrated M20 x 1.5
Hub Piloted
DRIVE FLANGE STUDS USED WITH HUB IN ASSEMBLIES
HUB END
NUT END
DRIVE FLANGE STUD OVERALL LENGTH BODY DIAMETER THREAD SIZE THREAD LENGTH THREAD SIZE THREAD LENGTH
08-205741
3.03”
.50”
.50”-13
1.00”
.50”-13
1.00”
