DRIVE AXLE HUBS
FOR AXLE MODELS: Hino
HUB NO.
DESCRIPTION
TYPE
04-15975-XXX Drive Axle Hub
Outboard Drum
8 Hole
Serrated Studs
INNER BEARING
CUP
CONE
BOLT CIRCLE
JLM506810
JLM506849
8.858”
OUTER BEARING
CUP
CONE
39520
39590

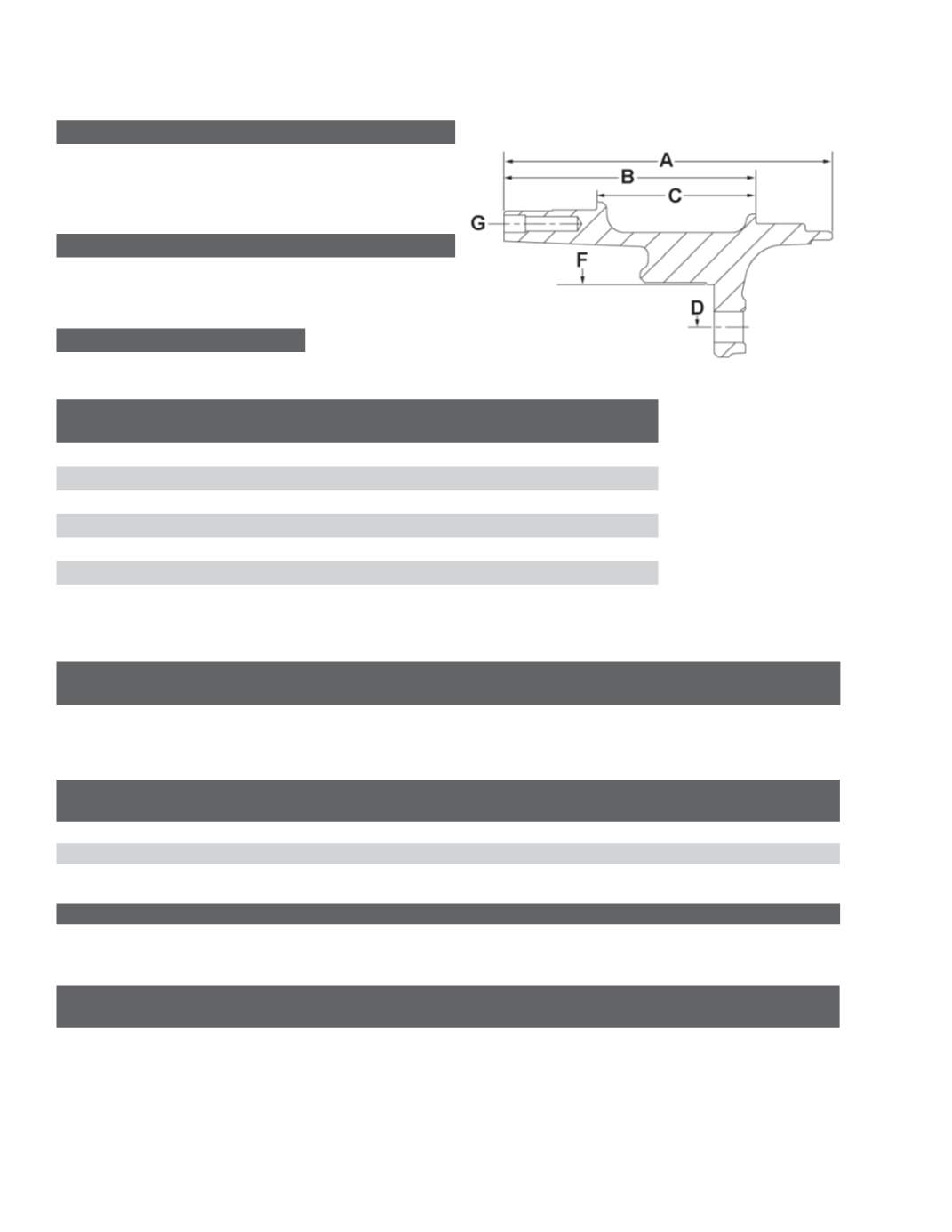

DRAWING
REFERENCE
ITEM
DIMENSION
A
Overall Length
6.86”
B
Outer Hub Cap Face To Inner Bearing Cup Seat
4.97”
C
Distance Between Cups
2.775”
D
Bolt Circle Diameter
8.858”
E
Wheel Stud Quantity
8
F
Pilot Diameter
6.691”
G
Drive Flange Hole Pattern
8,M12 x 1.75
HUB PILOTED - Hub Assemblies without Drum or Rotor
HUB PART
NUMBER
HAND
WHEEL TYPE
DRUM TYPE
WHEEL STUD
NUMBER
DRIVE FLANGE
STUD NUMBER ABS RING NUMBER
04-15975-001
RH
09-002223
HUB PILOTED - Hub and Rotor Assembly
HUB PART NUMBER WHEEL TYPE WHEEL STUD NUMBER DRIVE FLANGE
STUD NUMBER
ABS RING
NUMBER
ROTOR NUMBER ROTOR O.D.
16-15975-1000
09-002223
09-002222
23-123624-007
12.75
16-15975-1001
Steel
09-002233
09-002222
23-123624-007
12.75
WHEEL STUDS USED WITH HUB IN ASSEMBLIES
WHEEL STUD NO.
THREAD TYPE SIZE
STYLE
WHEEL TYPE
USE WITH DRUM TYPE
09-002223
Serrated M14 x 2
Hub Piloted
ROTORS USED WITH HUB IN ASSEMBLIES
BOLT HOLES
ROTOR PART NO.
OUTSIDE DIA.
OVERALL DEPTH BOLT CIRCLE DIA.
DIAMETER
NUMBER
PILOT DIA.
23-123624-002
12.756
6.325
7.750
.50-13 UNC
8
6.130
