DRIVE AXLE HUBS
FOR AXLE MODELS: Eaton 15040P, 15040S, 15040T
Meritor F-145, F-245, F-345, RS-15-120, RS-15-210
HUB NO.
DESCRIPTION
TYPE
04-15973-XXX Drive Axle Hub
Outboard Drum
8 Hole
Serrated Studs
INNER BEARING
CUP
CONE
BOLT CIRCLE
33462
33287
8.858”
OUTER BEARING
CUP
CONE
3920
3982

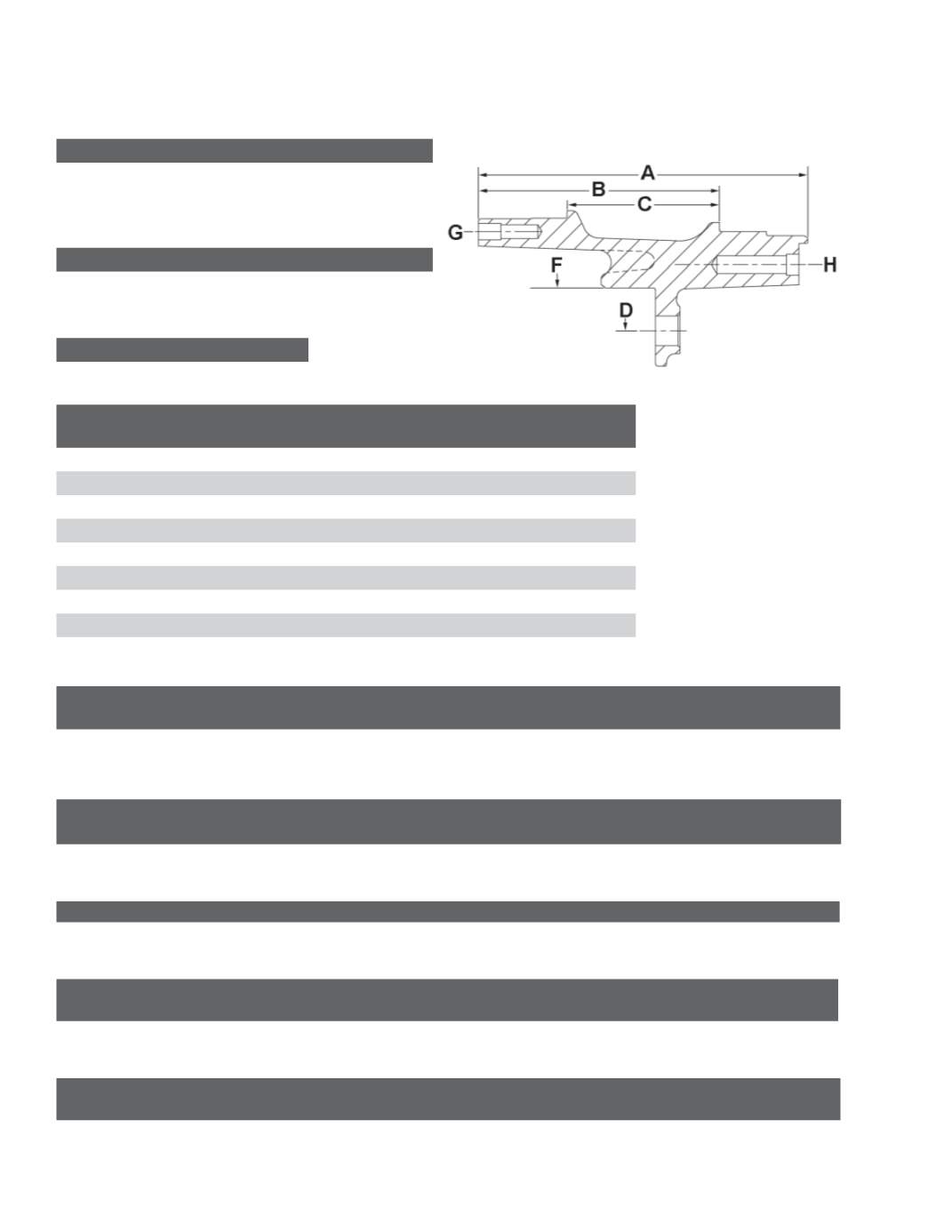

DRAWING
REFERENCE
ITEM
DIMENSION
A
Overall Length
8.576”
B
Outer Hub Cap Face To Inner Bearing Cup Seat
5.626”
C
Distance Between Cups
3.156”
D
Bolt Circle Diameter
8.858”
E
Wheel Stud Quantity
8
F
Pilot Diameter
6.691”
G
Drive Flange Hole Pattern
8,1/2”-13; 5.312” B.C.
H
Drive Flange Hole Pattern
8, 9/16”-12; 7.25” B.C.
HUB PILOTED - Hub Assemblies without Drum or Rotor
HUB PART
NUMBER
HAND
WHEEL TYPE
DRUM TYPE
WHEEL STUD
NUMBER
DRIVE FLANGE
STUD NUMBER ABS RING NUMBER
04-15973-100
RH
09-002233
08-205435
HUB PILOTED - Hub and Rotor Assembly
HUB PART NUMBER WHEEL TYPE WHEEL STUD NUMBER
DRIVE FLANGE
STUD NUMBER
ABS RING
NUMBER ROTOR NUMBER
ROTOR O.D.
16-15973-1001
09-002233
08-205435
23-123617-009
15.38
WHEEL STUDS USED WITH HUB IN ASSEMBLIES
WHEEL STUD NO.
THREAD TYPE SIZE
STYLE
WHEEL TYPE
USE WITH DRUM TYPE
09-002233
Serrated M14 x 2
Hub Piloted
Steel
Cast
DRIVE FLANGE STUDS USED WITH HUB IN ASSEMBLIES
HUB END
NUT END
DRIVE FLANGE STUD OVERALL LENGTH BODY DIAMETER THREAD SIZE THREAD LENGTH THREAD SIZE THREAD LENGTH
08-205435
2.88”
.50”
.50”-13
.83”
.50”-20
.98”
ROTORS USED WITH HUB IN ASSEMBLIES
BOLT HOLES
ROTOR PART NO.
OUTSIDE DIA.
OVERALL DEPTH BOLT CIRCLE DIA.
DIAMETER
NUMBER
PILOT DIA.
23-123617-009
15.375
3.410
7.250
.594
8
6.000
