DRIVE AXLE HUBS
FOR AXLE MODELS: Dana Spicer J-190S
Eaton 17, 34D, D340
Meritor FL-100, RS-17-140, RS-17-145, RS-17-220, RT-34-145
HUB NO.
DESCRIPTION
TYPE
04-15972-XXX Drive Axle Hub
Outboard Drum
8 Hole
Serrated Studs
INNER BEARING
CUP
CONE
BOLT CIRCLE
47620
47686
10.827”
OUTER BEARING
CUP
CONE
39520
39590

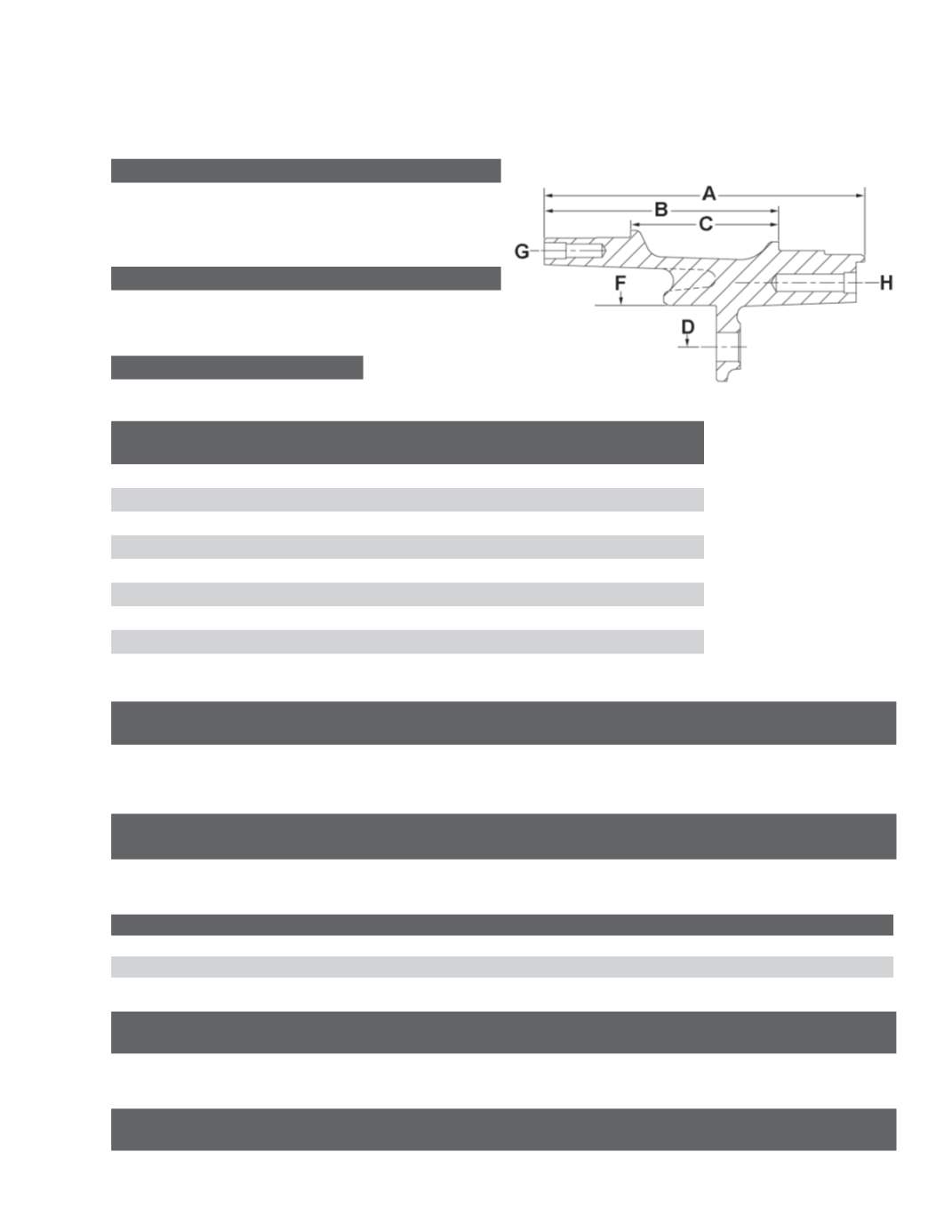

DRAWING
REFERENCE
ITEM
DIMENSION
A
Overall Length
10.64”
B
Outer Hub Cap Face To Inner Bearing Cup Seat
7.315”
C
Distance Between Cups
4.625”
D
Bolt Circle Diameter
10.827”
E
Wheel Stud Quantity
8
F
Pilot Diameter
8.689”
G
Drive Flange Hole Pattern
12, 1/2”-13; 5.25” B.C.
H
Drive Flange Hole Pattern
10, 9/16”-12; 7.25” B.C.
HUB PILOTED - Hub Assemblies without Drum or Rotor
HUB PART
NUMBER
HAND
WHEEL TYPE
DRUM TYPE
WHEEL STUD
NUMBER
DRIVE FLANGE
STUD NUMBER ABS RING NUMBER
04-15972-002
RH
09-001989
08-205435
HUB PILOTED - Hub and Rotor Assembly
HUB PART NUMBER WHEEL TYPE WHEEL STUD NUMBER
DRIVE FLANGE
STUD NUMBER
ABS RING
NUMBER
ROTOR NUMBER ROTOR O.D.
16-15972-1000
09-001989
08-205435
23-123557-009
15.38
WHEEL STUDS USED WITH HUB IN ASSEMBLIES
WHEEL STUD NO.
THREAD TYPE SIZE
STYLE
WHEEL TYPE
USE WITH DRUM TYPE
09-001989
Serrated M22 x 1.5
Hub Piloted
Steel Wheel
Cast
09-002004
Serrated M22 x 1.5
Hub Piloted
Aluminum, Steel
Cast
DRIVE FLANGE STUDS USED WITH HUB IN ASSEMBLIES
HUB END
NUT END
DRIVE FLANGE STUD OVERALL LENGTH BODY DIAMETER THREAD SIZE THREAD LENGTH THREAD SIZE
THREAD LENGTH
08-205435
2.88”
.50”
.50”-13
.83”
.50”-20
.98”
ROTORS USED WITH HUB IN ASSEMBLIES
BOLT HOLES
ROTOR PART NO.
OUTSIDE DIA.
OVERALL DEPTH BOLT CIRCLE DIA.
DIAMETER
NUMBER
PILOT DIA.
23-123557-009
15.375
3.400
7.250
0.594
10
6.001
