DRIVE AXLE HUBS
FOR AXLE MODELS: GMC 150
HUB NO.
DESCRIPTION
TYPE
04-15957-XXX Drive Axle Hub
Outboard Drum
8 Hole
Serrated Studs
INNER BEARING
CUP
CONE
BOLT CIRCLE
33462
33287
10.827”
OUTER BEARING
CUP
CONE
3920
3982

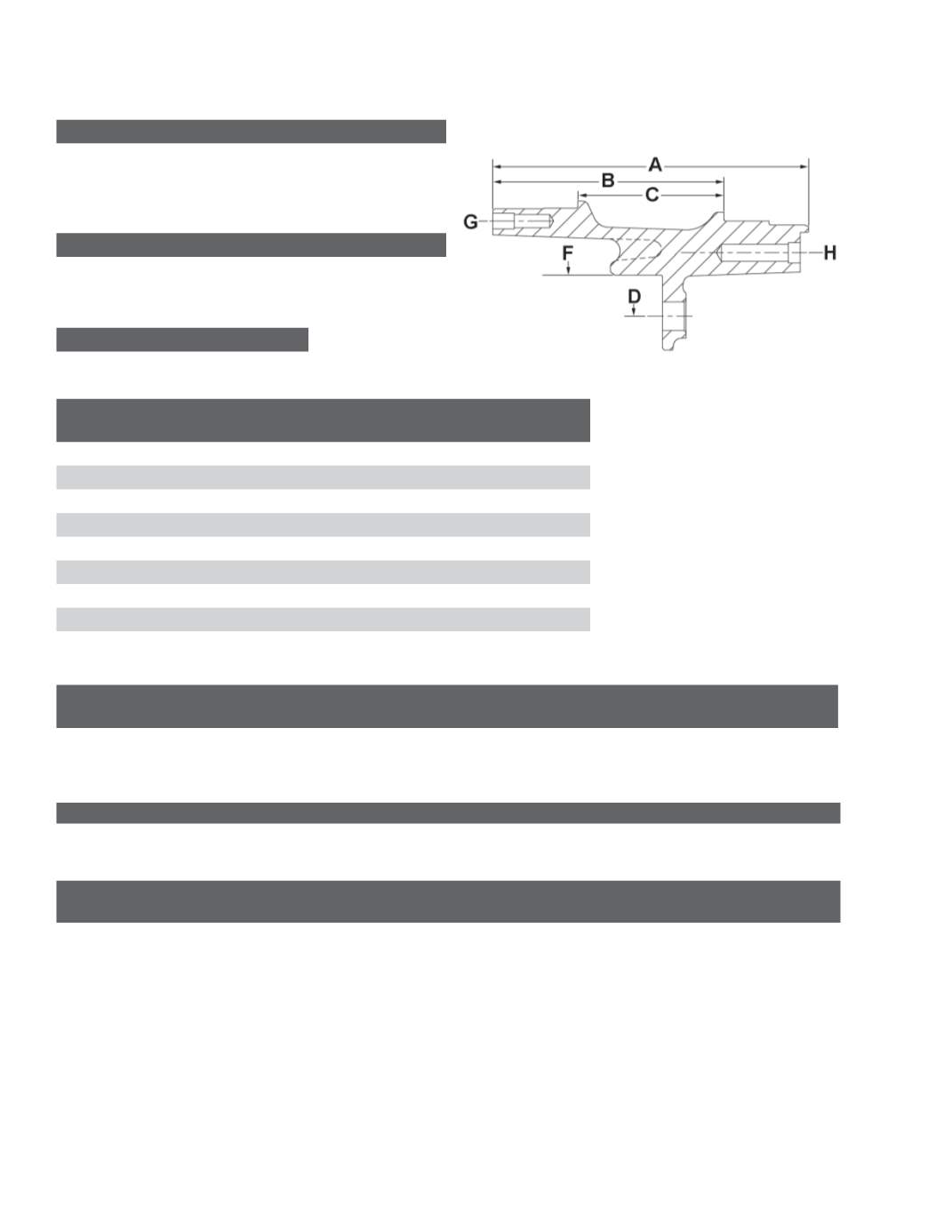

DRAWING
REFERENCE
ITEM
DIMENSION
A
Overall Length
9.91”
B
Out Hub Cap Face To Inner Bearing Cup Sheet
6.19”
C
Distance Between Cups
3.72”
D
Bolt Circle Diameter
10.827”
E
Wheel stud Quantity
8
F
Pilot Diameter
8.698”
G
Drive Flange Hole Pattern
8, 1/2”-13; 5.312” B.C.
H
Drive Flange Hole Pattern
10, 9/16”-12; 7.25” B.C.
HUB PILOTED - Hub Assemblies without Drum or Rotor
HUB PART
NUMBER
HAND
WHEEL TYPE
DRUM TYPE
WHEEL STUD
NUMBER
DRIVE FLANGE
STUD NUMBER ABS RING NUMBER
04-15957-1000
RH
09-001811
08-205741
WHEEL STUDS USED WITH HUB IN ASSEMBLIES
WHEEL STUD NO.
THREAD TYPE SIZE
STYLE
WHEEL TYPE
USE WITH DRUM TYPE
09-001811
Serrated M20 x 1.5
Hub Piloted
DRIVE FLANGE STUDS USED WITH HUB IN ASSEMBLIES
HUB END
NUT END
DRIVE FLANGE STUD OVERALL LENGTH BODY DIAMETER THREAD SIZE THREAD LENGTH THREAD SIZE THREAD LENGTH
08-205741
3.03”
.50”
.50”-13
1.00”
.50”-13
1.00”
