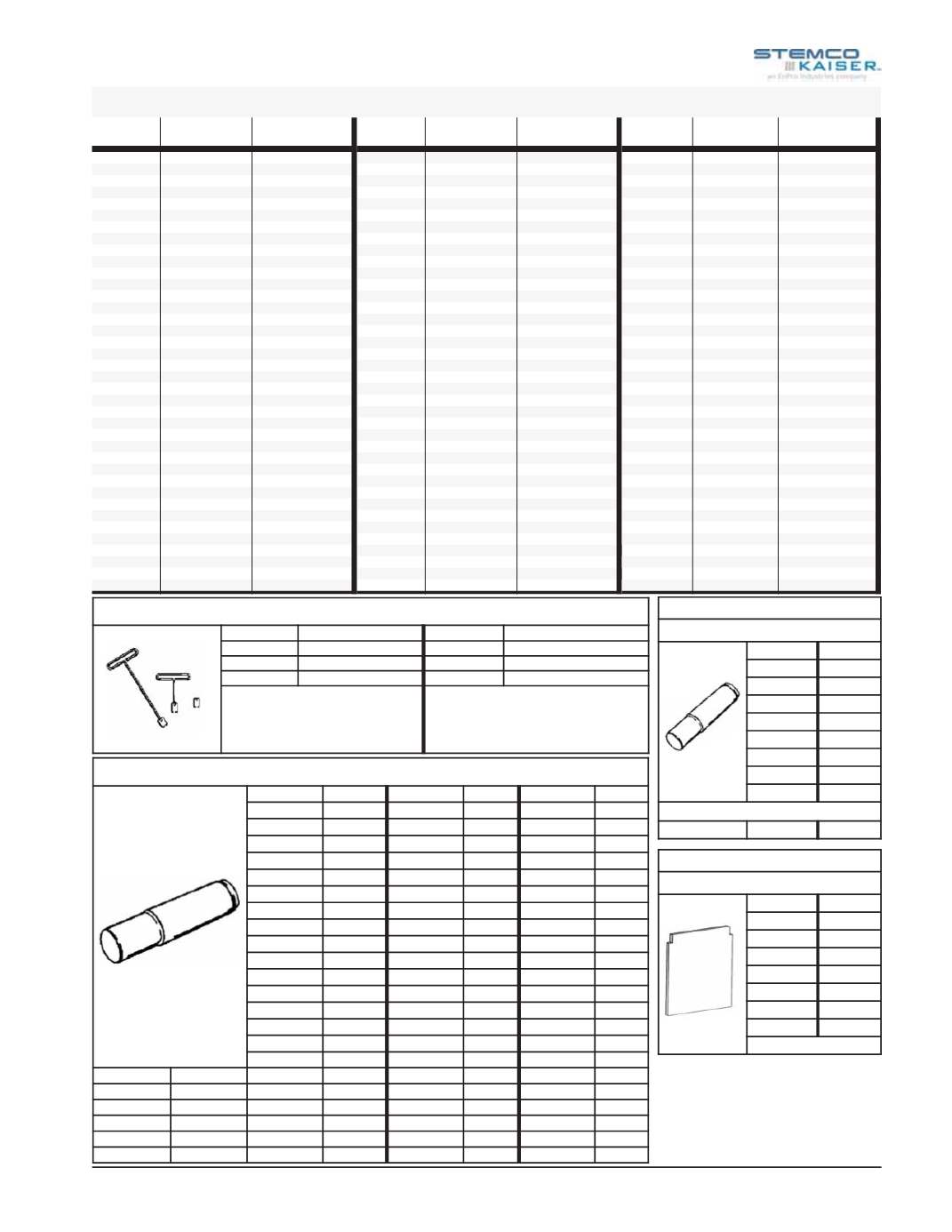

29 / 69
STEMCO
Kaiser
Kit No.
SPINDLE
BORE SIZE
EYE-BEAM
BORE SIZE
K160A
2.440/2.442
2.126/2.128
K160S
2.171/2.173
2.047/2.048
K161S
2.171/2.173
2.047/2.048
K162S
2.171/2.172
2.047/2.048
K170G
1.919/1.921
Tapered
K175G
1.919/1.921
Tapered
K180E
2.057/2.058
1.873/1.875
K180R
2.124/2.126
2.000/2.002
K181R
2.124/2.126
2.000/2.002
K200S
2.171/2.172
2.047/2.048
K201S
2.171/2.172
2.047/2.048
K309I
1.733/1.735
1.610/1.612
K310I
1.733/1.735
1.610/1.612
K47F
1.249/1.251
1.129/1.131
K50D
1.249/1.251
1.125/1.127
K50F
1.375/1.377
1.232/1.234
K50W
1.314/1.316
1.180/1.182
K51G
1.229/1.231
1.110/1.112
K532M
1.999/2.001
Tapered
K533M
1.749/1.751
Tapered
K535M
1.624/1.626
Tapered
K536M
2.559/2.561
Tapered
K55G
1.298/1.300
1.180/1.182
K56G
1.314/1.316
1.180/1.182
K58G
1.314/1.316
1.180/1.182
K60R
1.358/1.360
1.235/1.237
K60U
K616M
2.499/2.501
Tapered
K68Z
1.338/1.340
1.182/1.184
K69Z
1.338/1.340
1.182/1.184
K700T
2.499/2.501
2.250/2.252
K70F
1.355/1.357
1.232/1.234
K70G
1.368/1.370
1.250/1.252
K70R
1.626/1.628
1.501/1.503
K71D
1.358/1.360
1.235/1.237
K71F
1.460/1.462
1.301/1.303
K72F
1.454/1.456
1.301/1.303
K75D
1.357/1.359
1.233/1.235
Qwik Kit
TM
Bushing "T" Handle Wrenches
TOOL
DESCRIPTION
TOOL
DESCRIPTION
ST-100-1
Short “T” Handle Wrench
ST-100-3
Short “T” Handle Wrench
ST-100-2
Long “T” Handle Wrench
ST-100-4
Long “T” Handle Wrench
100M1-1
Replacement head
100M1-2
Replacement head
Above Wrenches will fit bushings in most kits.
Following kits Kits do not use wrenches:
K80A, K120A, K120N, K150KG, K160A, K700T,
K60U, 50.121.08
Above Wrenches will fit bushings in the following
kits:
K50F, K71F, K72F, K80G, K110G, K120G,
K122V, K146E, K147E, K148E, K180E, K68Z, K69Z
King Pin Support Products
revision date 11/2012
STEMCO Kaiser 4641 Industrial Dr., Millington, Michigan 48746
page 26
STEMCO
Kaiser
Kit No.
SPINDLE
BORE SIZE
EYE-BEAM
BORE SIZE
K101I
1.483/1.485
1.358/1.360
K102I
1.483/1.485
1.358/1.360
K103S
1.483/1.485
1.358/1.360
K108I
1.608/1.610
1.485/1.487
K109I
1.608/1.610
1.485/1.487
K110G
2.047/2.049
1.891/1.893
K119I
1.733/1.735
1.610/1.612
K120A
2.045/2.047
1.772/1.774
K120E
1.749/1.750
1.626/1.627
K120G
2.047/2.049
1.891/1.893
K120H
1.937/1.939
K120I
2.045/2.047
1.922/1.923
K120N
2.283/2.284
1.967/1.968
K120R
1.919/1.921
1.795/1.797
K120W
1.937/1.939
1.811/1.812
K121E
1.749/1.750
1.626/1.627
K121G
1.876/1.878
1.745/1.747
K122E
1.919/1.921
1.794/1.796
K122V
1.969/1.971
Tapered
K123E
1.919/1.921
1.794/1.796
K123K
1.919/1.921
1.794/1.796
K125E
1.919/1.921
1.794/1.796
K125G
1.733/1.735
Tapered
K125W
1.937/1.939
1.811/1.812
K126W
1.936/1.938
1.811/1.812
K127W
1.936/1.938
1.811/1.812
K132K
1.919/1.921
1.794/1.796
K139I
1.733/1.735
1.610/1.612
K140I
1.733/1.735
1.610/1.612
K140V
TAPERED
K141S
2.171/2.173
2.047/2.048
K146E
2.057/2.058
1.873/1.875
K146F
1.936/1.938
1.811/1.812
K146S
1.994/1.996
1.862/1.864
K147E
2.057/2.058
1.873/1.875
K148E
2.057/2.058
1.873/1.875
K149E
2.057/2.058
1.873/1.875
K150KG
2.373/2.374
2.000/2.002
STEMCO
Kaiser
Kit No.
SPINDLE
BORE SIZE
EYE-BEAM
BORE SIZE
K75F
1.560/1.562
1.433/1.435
K75M
1.652/1.654
1.378/1.380
K76F
1.560/1.562
1.433/1.435
K80A
2.045/2.047
1.772/1.774
K80G
1.771/1.773
1.615/1.617
K80R
1.626/1.628
1.501/1.503
K901L
1.919/1.921
1.795/1.797
K921L
1.919/1.921
1.795/1.797
K931L
1.919/1.921
1.795/1.797
K941F
1.919/1.921
1.795/1.797
K941FA
1.919/1.921
1.795/1.797
K941R
1.626/1.628
1.501/1.503
K942F
1.919/1.921
1.795/1.797
K942FA
1.919/1.921
1.795/1.797
K95F
1.733/1.735
1.607/1.609
K95G
1.560/1.562
Tapered
K961L
1.919/1.921
1.795/1.797
K96F
1.733/1.735
1.607/1.609
K970R
1.733/1.735
1.608/1.610
K971R
1.733/1.735
1.608/1.610
K981R
1.920/1.921
1.795/1.797
K98I
1.358/1.360
1.235/1.237
KD900R
1.560/1.562
Tapered
KD901R
1.560/1.562
1.434/1.436
KE350F
1.179/1.181
1.055/1.057
KG931R
1.919/1.921
1.795/1.797
KH901L
2.124/2.126
2.000/2.002
KH931L
2.124/2.126
2.000/2.002
KH946R
1.919/1.921
1.795/1.797
50.121.08
1.937/1.939
SPINDLE BORE and AXLE EYE BEAM SIZES
Part Numbers Below require
SPECIAL BUSHING DRIVER:
Kit No.
TOOL
K80A
ST70-30
K120A
ST70-30
K120N
ST70-27
K150KG
ST70-26
K160A
ST70-31
K700T
ST70-29
K60U
ST70-34
50.121.08
ST70-32
SPECIAL DRIVER:
K536M
ST90-1
Plus Kit™ King Pin Bushing Drivers
Plus Kit™ TOOL Plus Kit™ TOOL Plus Kit™ TOOL
70.053.06 ST70-3
70.119.09 ST70-5 70.180.18 ST70-7
70.055.07 ST70-4
70.120.05 ST70-6 70.309.09 ST70-5
70.056.07 ST70-4
70.120.09 ST70-19 70.310.09 ST70-5
70.058.07 ST70-4
70.120.18 ST70-7 70.533.13 ST70-6
70.070.04 ST70-10 70.120.95 ST70-6 70.616.13 ST70-18
70.070.07 ST70-1
70.120.99 ST70-19 70.901.12 ST70-7
70.070.18 ST70-28 70.121.05 ST70-6 70.921.12 ST70-7
70.071.04 ST70-10 70.121.07 ST70-11 70.931.12 ST70-7
70.071.06 ST70-17 70.122.05 ST70-7 70.941.06 ST70-7
70.071.96 ST70-17 70.122.95 ST70-7 70.941.18 ST70-28
70.072.06 ST70-17 70.123.05 ST70-7 70.942.06 ST70-7
70.073.06 ST70-3
70.125.07 ST70-5 70.961.12 ST70-7
70.075.06 ST70-9
70.125.23 ST70-33 70.970.18 ST70-13
70.076.06 ST70-9
70.126.23 ST70-33 70.971.18 ST70-13
70.080.18 ST70-28 70.127.23 ST70-33 70.981.18 ST70-7
70.095.06 ST70-13 70.139.09 ST70-5 74.901.18 ST70-9
Plus Kit™
TOOL
70.095.07 ST70-9
70.140.09 ST70-5 74.931.18 ST70-13
70.035.06
ST70-20
70.096.06 ST70-13 70.141.19 ST70-24 75.350.06 ST70-15
70.040.04
ST70-21
70.098.09 ST70-10 70.146.05 ST70-23 77.931.18 ST70-7
70.040.06
ST70-8
70.101.09 ST70-2
70.147.05 ST70-23 78.901.12 ST70-12
70.050.04
ST70-22
70.102.09 ST70-2
70.160.19 ST70-24 78.931.12 ST70-12
70.051.07
ST70-14
70.103.19 ST70-2
70.180.05 ST70-23 78.946.18 ST70-7
SPECIAL OUT OF ROUND
"go-no go" Gauge tool
Qwik Kit
™
TOOL
K122E*
ST80-1
K123E
ST80-1
K125E*
ST80-1
K931L
ST80-1
K961L
ST80-1
K981R
ST80-1
KH946R
ST80-1
*Currently included in kits
