MODULES
UNI
Customer Service: 800-562-5012 / Technical Support: 888-562-5012
29

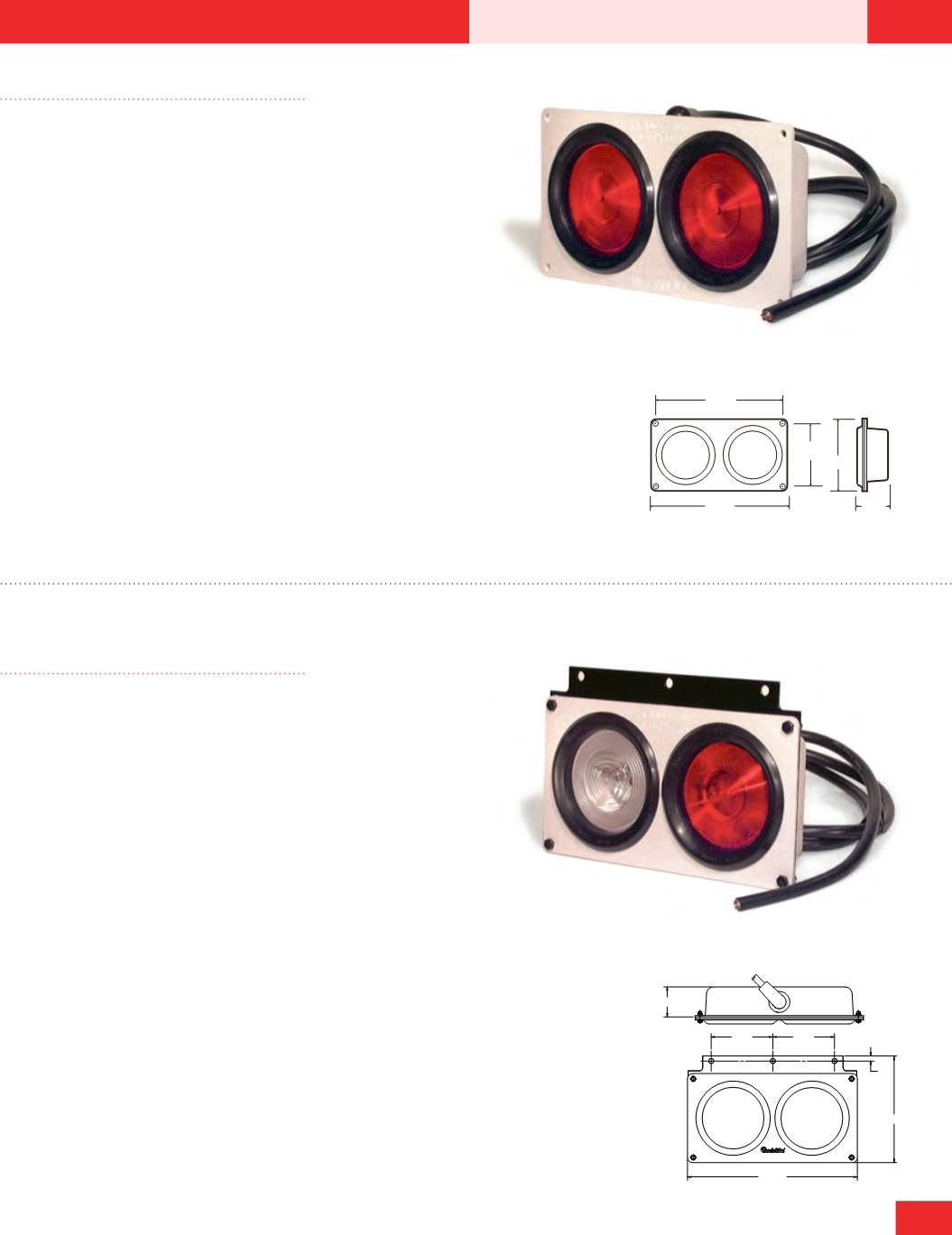

Plastic S/T/T Module
Material:
• ABS module box
• PVC grommet
• 14 gauge wire
Light Source:
• Super 40 lamps designed at
13.5 V, 2.1/.47 A,
dual filament bulb
• Model 40 lamps designed at
12.8 V, 2.1/.48 A,
dual filament bulb
Kit Components:
40742 or 40743 module kit:
2 - 40202R Model 40 S/T/T
2 - 40700 grommets
1 - 40722 module box
1 - 50200 or 50201 wire harness
40748 or 40749 module kit:
1 - 40242R Super 40 S/T/T
1 - 40244 Super 40 B/U
2 - 40700 grommets
1 - 40722 module box
1 - 50200 or 50201 wire harness
FMVSS:
• I6,P2,S2,T
• Mounts in 11” x 5.12” hole
• Optional mounting gasket #97938
available to provide extra seal between
module & body
0.280 screw hole diameter
40742
11.60
12.30
2.50
6.50
5.70
Flanged Plastic
S/T/T Module
Material:
• ABS module box
• Metal flange
• PVC grommet
• 14 gauge wire
Kit Components:
40746 or 40747 module kit:
2 - 40202R Model 40 S/T/T
2 - 40700 grommets
1 - 40721 mounting flange
1 - 40722 module box
1 - 50200 or 50201 wire harness
40754 or 40755 module kit:
1 - 40242R Super 40 S/T/T
1 - 40244 Super 40 B/U
2 - 40700 grommets
1 - 40721 mounting flange
1 - 40722 module box
1 - 50200 or 50201 wire harness
FMVSS:
• I6,R,S2,T
• Features metal mounting flange
with high impact plastic module box
• Optional mounting gasket #97938
available to provide extra seal
between module & body
40755
2.20
4.50
4.50
0.37
7.75
12.25
40742
LH Model 40 kit
40743
RH Model 40 kit
40748
LH Super 40 kit w/Back-Up
40749
RH Super 40 kit w/Back-Up
40746
LH Model 40 kit
40747
RH Model 40 kit
40754
LH Super 40 kit w/Back-Up
40755
RH Super 40 kit w/Back-Up
