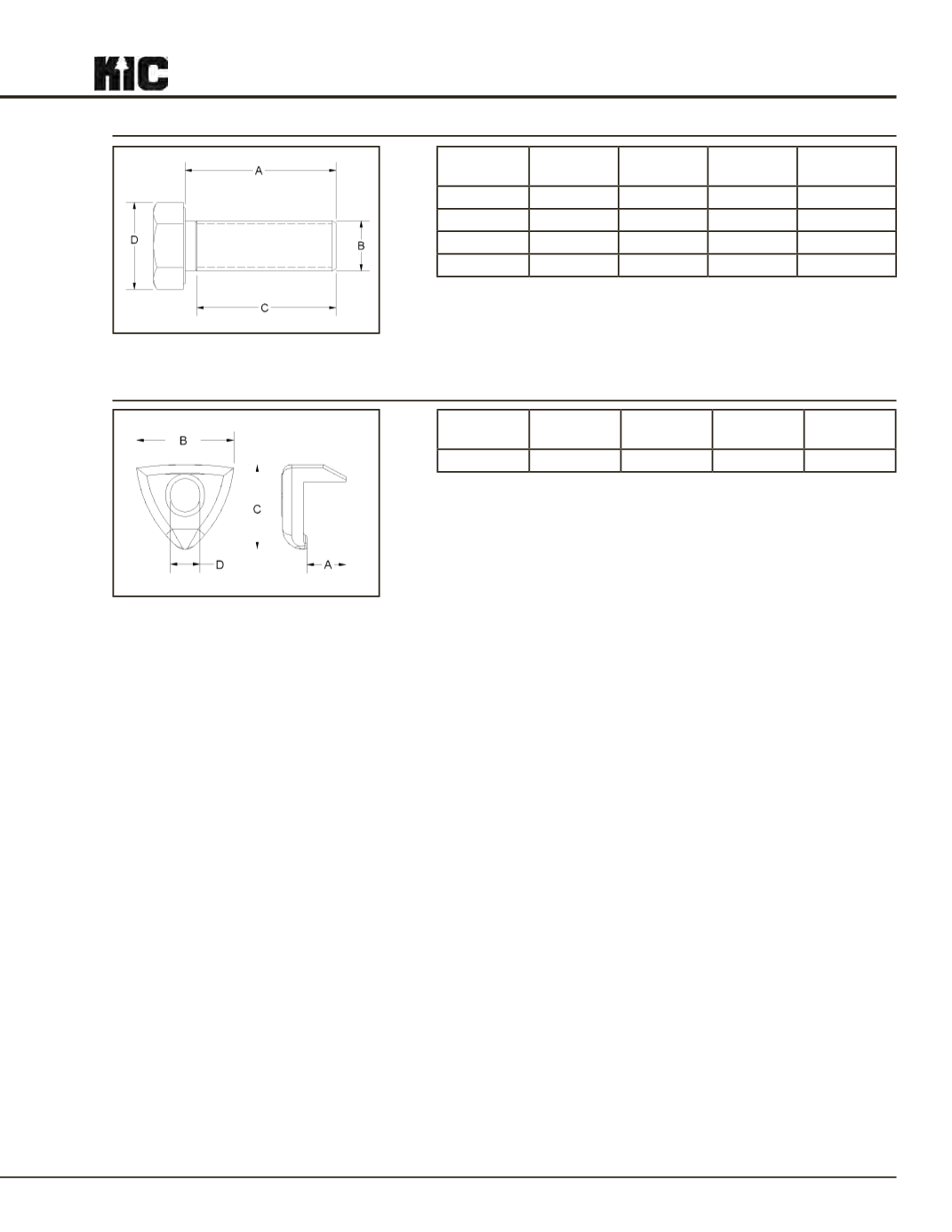

Rim Clamps
Component Parts
Part No.
A
B
C
D
Stud Dia.
PRT-00123
1.01
2.88
2.38
0.75
Cap Screws
Part No.
A
B
Thread
C
D
Across Flats
PRT-00143
2.25
5/8-18
1.50
0.94
PRT-00151
2.25
3/4-16
1.75
1.12
PRT-05088
2.25
5/8-18
1.50
0.94
PRT-05253
2.25
3/4-10
1.75
1.13
