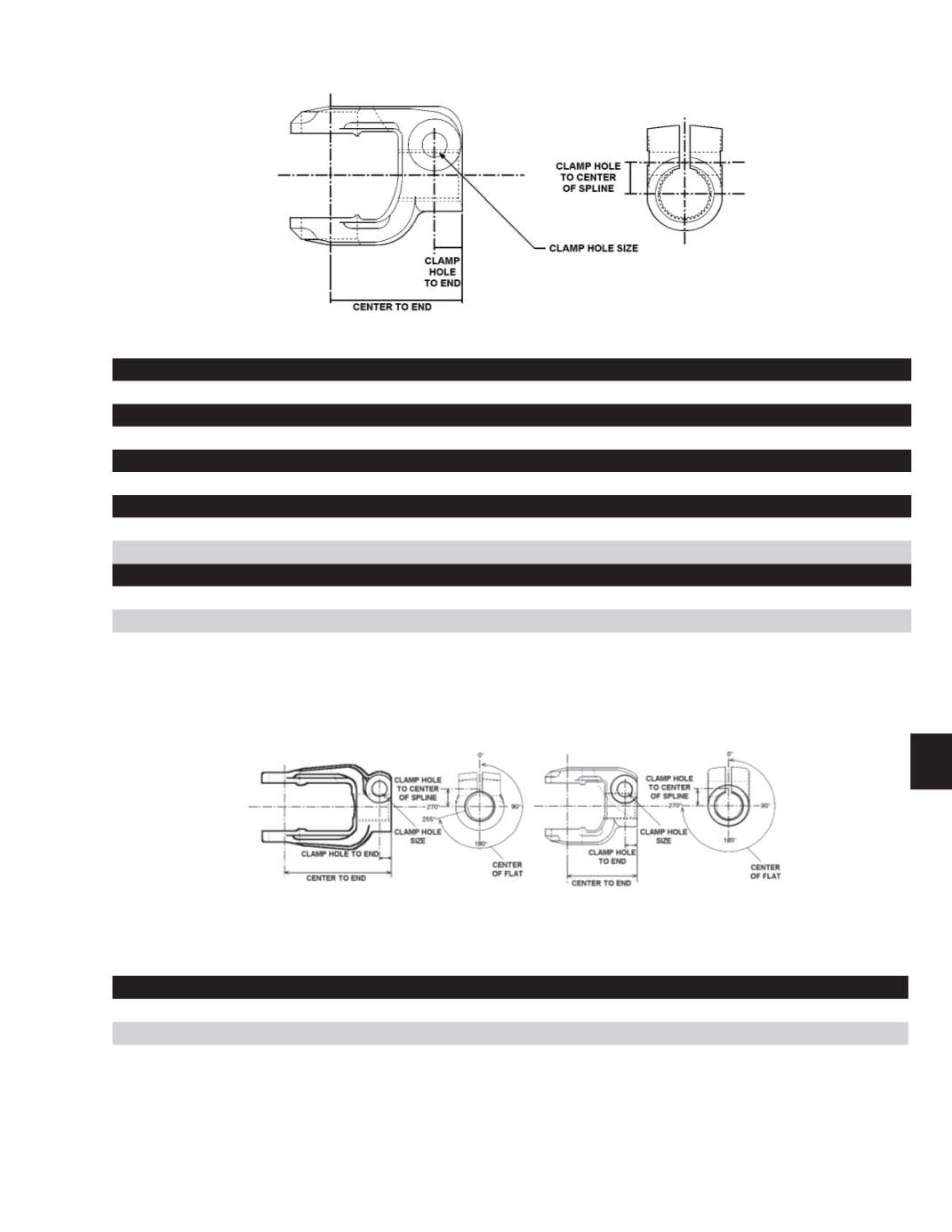

CLAMP YOKES — STANDARD SERRATED TYPE

Major Dia.Max./

Min.

Minor Dia. Max./

Min.

Center to End Clamp Hole to End Clamp Hole Size

Clamp Hole to

Center of Spline

Part Number

.75” - 26 SPLINE Based on 36 spacing

.739" / .735"

.698" / .694"

2.25"

.47"

.47"

.45"

L6NYS12-39

.88” - 30 SPLINE Based on 36 spacing

.883" / .881"

.802" / .800"

2.50"

.47"

.41"

.53"

L6NYS14-65

.88” - 36 SPLINE

.883" / .881"

.802" / .800"

2.25"

.47"

.41"

.56"

L6NYS14-100

1.00” - 30 SPLINE Based on 36 spacing

.994" / .989"

.949" / .944"

2.25"

.47"

.41"

.61"

L6NYS16-16

.994" / .989"

.949" / .944"

2.50"

.47"

.38"

.61"

L6NYS16-34

1.00” - 36 SPLINE

.988" / .986"

.915" / .913"

2.25"

.75"

.41"

.58"

L6NYS16-12

1.013" / 1.011"

.949" / .944"

2.25"

.47"

.41"

.61"

L6NYS16-18

CLAMP YOKES — “D—FLAT” SERRATED TYPE

Major Dia.Max./

Min.

Minor Dia. Max./

Min.

Center to End

Clamp Hole

to End

Clamp Hole

Size

Clamp Hole to

Center of Spline

Center of

Flat

Part Number

.81” - 18 SPLINE Based on 36 spacing

.811" / .809"

.766" / .762"

2.16"

.36"

.47"

.53"

255°

L6NYS13-31

.811" / .809"

.766" / .762"

3.30"

.36"

.47"

.53"

255°

L6NYS13-34
