DRIVE AXLE HUBS
FOR AXLE MODELS: Dana Spicer D135-S, S135-S, S150-S, F155-S, G155-T
Navistar 170 Series
HUB NO.
DESCRIPTION
TYPE
04-15930-XXX Drive Axle Hub
Outboard Drum
8 Hole
Serrated Studs
INNER BEARING
CUP
CONE
BOLT CIRCLE
33462
33287
10.827”
OUTER BEARING
CUP
CONE
39520
39585

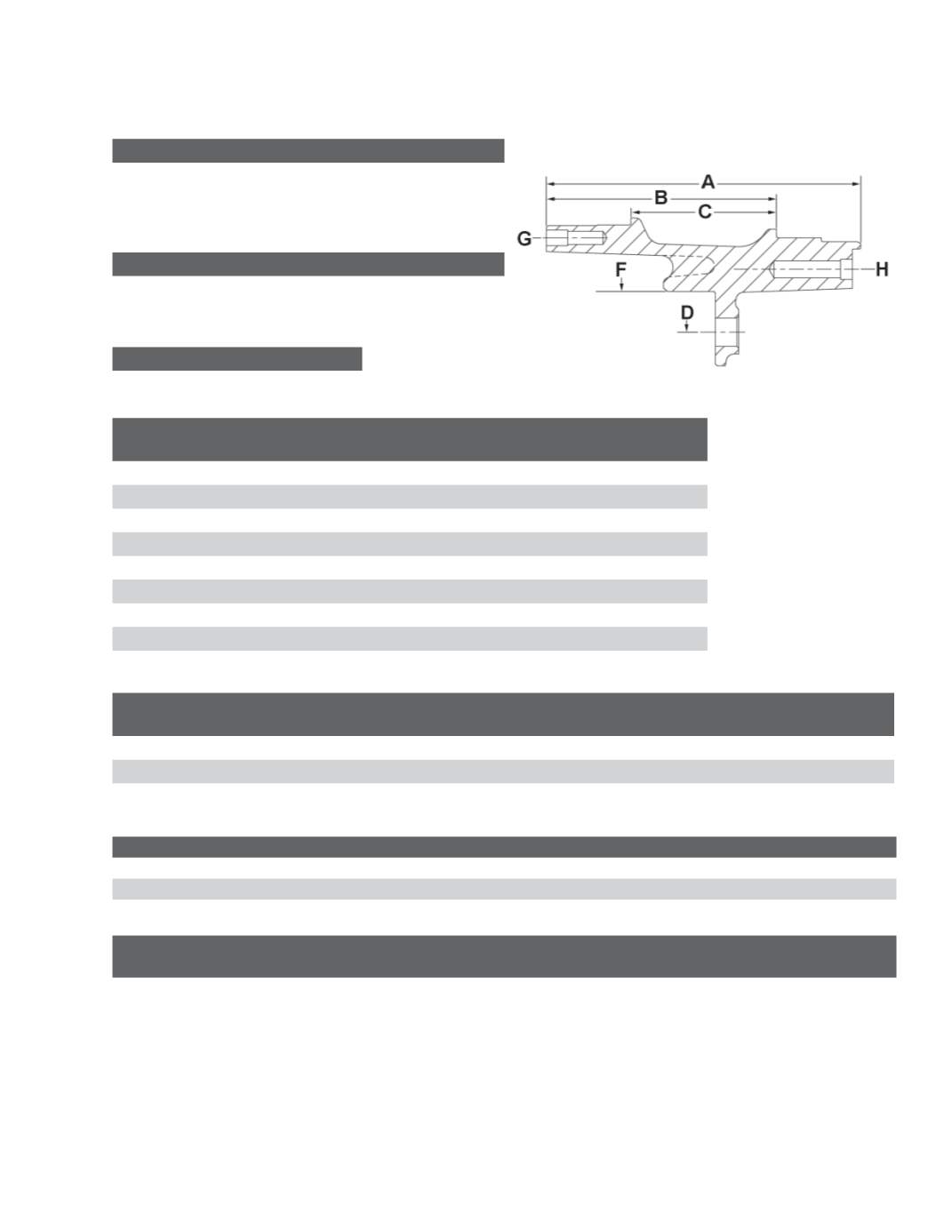

DRAWING
REFERENCE
ITEM
DIMENSION
A
Overall Length
8.84”
B
Outer Hub cap Face To Inner Bearing Cup Seat
5.76”
C
Distane Between Cup
3.38”
D
Bolt Circle Diameter
10.827”
E
Wheel Stud Quantity
8
F
Pilot Diameter
8.689
G
Drive Flange Hole Pattern
8, 9/16”-12; 5.219” B.C.
H
Drive Flange Hole Pattern
5, 3/4”-10; 6.75” B.C.
HUB PILOTED - Hub Assemblies without Drum or Rotor
HUB PART
NUMBER
HAND
WHEEL TYPE
DRUM TYPE
WHEEL STUD
NUMBER
DRIVE FLANGE
STUD NUMBER
ABS RING
NUMBER
04-15930-002
RH
09-002184
08-203868
04-15930-003
RH
09-001989
08-203868
WHEEL STUDS USED WITH HUB IN ASSEMBLIES
WHEEL STUD NO.
THREAD TYPE SIZE
STYLE
WHEEL TYPE
USE WITH DRUM TYPE
09-001989
Serrated M22 x 1.5
Hub Piloted
Steel Wheel
Cast
09-002184
Serrated M22 x 1.5
Hub Piloted
DRIVE FLANGE STUDS USED WITH HUB IN ASSEMBLIES
HUB END
NUT END
DRIVE FLANGE STUD OVERALL LENGTH BODY DIAMETER THREAD SIZE THREAD LENGTH THREAD SIZE THREAD LENGTH
08-203868
2.50”
.56”
.56”-12
1”
.56”-18
.90”
