DRIVE AXLE HUBS
FOR AXLE MODELS: Meritor MC26000, 71163
HUB NO.
DESCRIPTION
TYPE
04-16009-XXX Drive Axle Hub
Outboard Drum
10 Hole
Serrated Studs
INNER BEARING
CUP
CONE
BOLT CIRCLE
653
13.189”
OUTER BEARING
CUP
CONE
6535

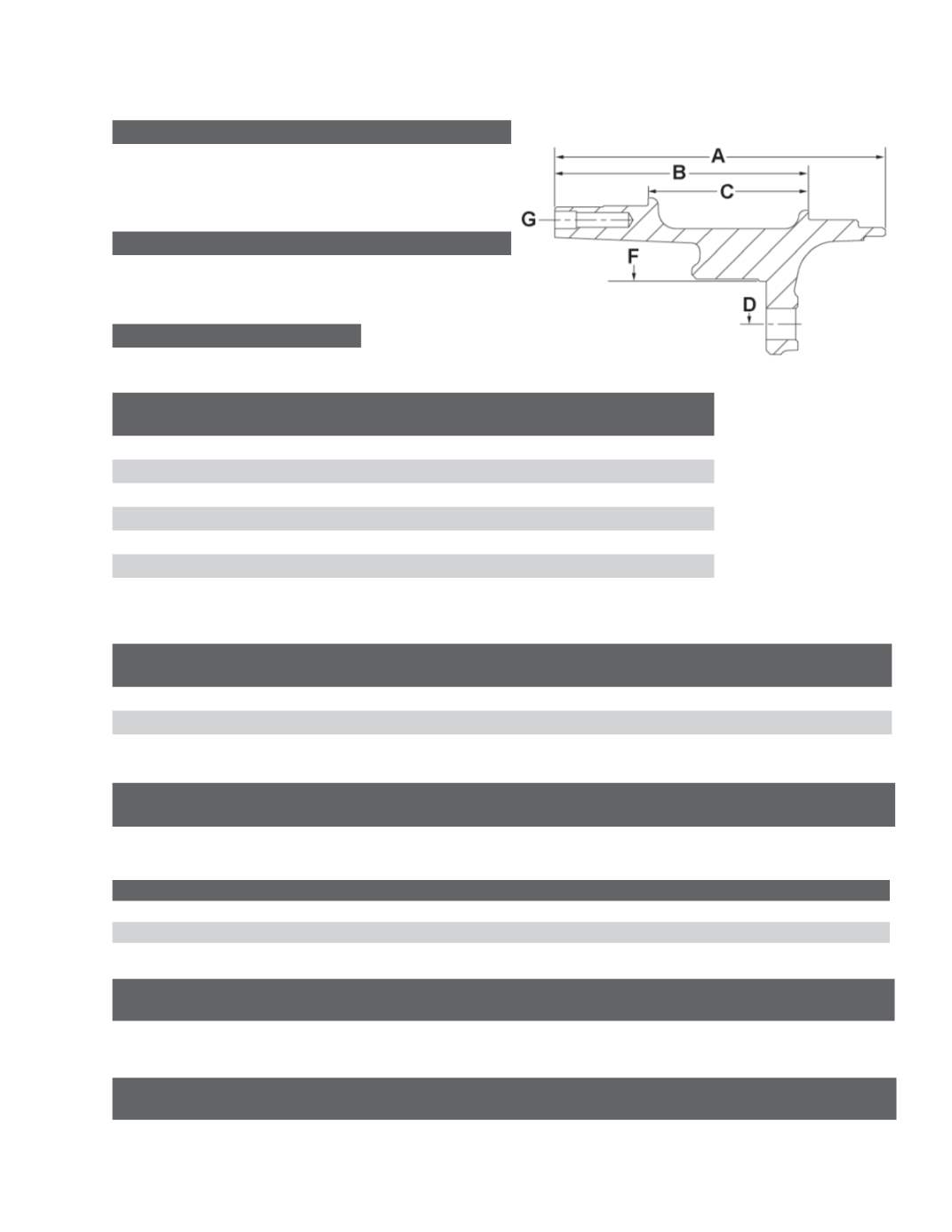

DRAWING
REFERENCE
ITEM
DIMENSION
A
Overall Length
9.975”
B
Outer Hub Cap Face To Inner Bearing Cup Seat
5.128”
C
Distance Between Cups
3.938”
D
Bolt Circle Diameter
13.189”
E
Wheel Stud Quantity
10
F
Pilot Diameter
11.051”
G
Drive Flange Hole Pattern
10, 9/16”-12; 7.25” B.C.
HUB PILOTED - Hub Assemblies without Drum or Rotor
HUB PART
NUMBER
HAND
WHEEL TYPE
DRUM TYPE
WHEEL STUD
NUMBER
DRIVE FLANGE
STUD NUMBER ABS RING NUMBER
04-16009-002
RH
09-001989
4-X-1612
04-16009-003
RH
09-002003
4-X-1612
HUB PILOTED - Hub and Rotor Assembly
HUB PART NUMBER WHEEL TYPE WHEEL STUD NUMBER
DRIVE FLANGE
STUD NUMBER
ABS RING
NUMBER
ROTOR NUMBER ROTOR O.D.
16-16009-1001
09-002003
4-X-1612
09-002165
23-123647-002
17.09
WHEEL STUDS USED WITH HUB IN ASSEMBLIES
WHEEL STUD NO.
THREAD TYPE SIZE
STYLE
WHEEL TYPE
USE WITH DRUM TYPE
09-001989
Serrated M22 x 1.5
Hub Piloted
Steel Wheel
Cast
09-002003
Serrated M22 x 1.5
Hub Piloted
Aluminum Wheel
Cast
DRIVE FLANGE STUDS USED WITH HUB IN ASSEMBLIES
HUB END
NUT END
DRIVE FLANGE STUD OVERALL LENGTH BODY DIAMETER THREAD SIZE THREAD LENGTH THREAD SIZE THREAD LENGTH
4-X-1612
2.50”
.56”
.56”-12
.84”
.56”-18
.91”
ROTORS USED WITH HUB IN ASSEMBLIES
BOLT HOLES
ROTOR PART NO.
OUTSIDE DIA.
OVERALL DEPTH BOLT CIRCLE DIA.
DIAMETER
NUMBER
PILOT DIA.
23-123647-002
17.087
5.644
9.823
M16x2
10
7.638
