FRONT AXLE HUBS
FOR AXLE MODELS: Dana Spicer I-100, I-120, I-140, W15
Eaton EFA-12F3, EFA-12F4, EFA-13F4
Meritor FF-931, FF-941, FF-942, FF-943, FF-944, FF-961, FG-931, FG-900, FG-941, FG-943
Westport F3W-1200, F3W-1400, F6W-1200, F6W-1400
HUB NO.
DESCRIPTION
TYPE
05-15756-XXX
Front Axle Hub
Outboard Drum
10 Hole
Serrated Studs
INNER BEARING
CUP
CONE
BOLT CIRCLE
HM212011 HM212047 or HM212049
13.189”
OUTER BEARING
CUP
CONE
3720
3782

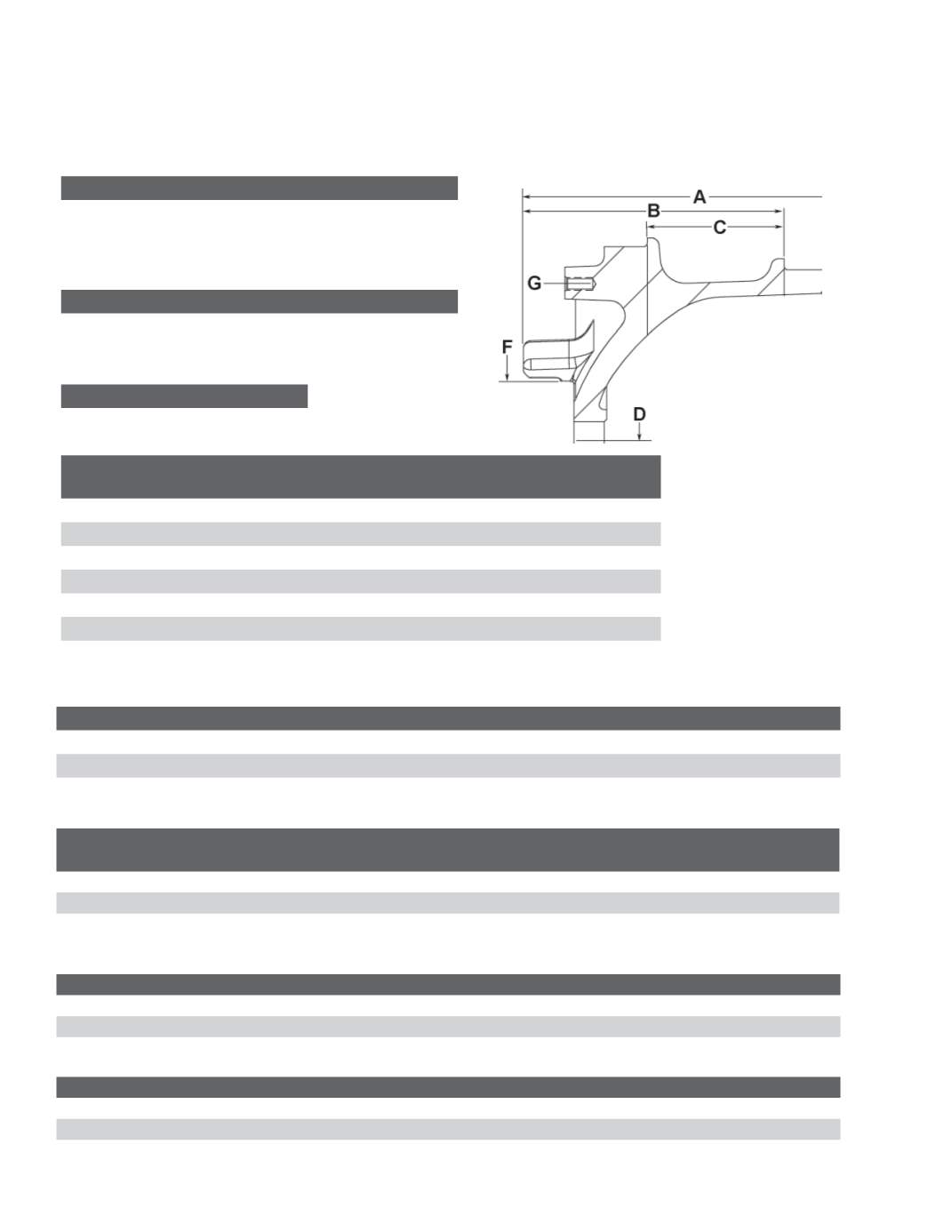

DRAWING
REFERENCE
ITEM
DIMENSION
A
Overall Length
8.49”
B
Outer Hub Cap Face To Inner Bearing Cup Seat
5.41”
C
Distance Between Cups
3.375”
D
Bolt Circle Diameter
13.189”
E
Wheel Stud Quantity
10
F
Pilot Diameter
11.25”
G
Drive Flange Hole Pattern
6, 5/16”-18; 5.50” B.C.
HUB PILOTED - Hub Assemblies without Drum or Rotor
HUB PART NUMBER
WHEEL TYPE
DRUM TYPE
WHEEL STUD
ABS RING NUMBER
05-15756-002
09-001727
09-001866
05-15756-003
09-001988
09-001866
HUB PILOTED - Hub and Drum Assemblies
HUB PART NUMBER WHEEL TYPE
DRUM
TYPE
WHEEL STUD
NUMBER
ABS RING
NUMBER DRUM SIZE DRUM NUMBER DRUM POSITION
15-15756-102
Steel
Cast
09-001988
16.5 x 5 13-123219-002
Outboard
15-15756-300
Steel
Cast
09-001988 09-001866
16.5 x 6 13-123302-002
Outboard
15-15756-301
Aluminum Cast
09-001727 09-001866
16.5 x 6 13-123302-002
Outboard
WHEEL STUDS USED WITH HUB IN ASSEMBLIES
WHEEL STUD NO.
THREAD TYPE SIZE
STYLE
WHEEL TYPE
USE WITH DRUM TYPE
09-001727
Serrated M22 x 1.5
Hub Piloted
Aluminum Wheel
X30
09-001988
Serrated M22 x 1.5
Hub Piloted
Steel
Cast
DRUMS USED WITH HUB IN ASSEMBLIES
DRUM NO.
DRUM TYPE
BRAKE SIZE
OVERALL DEPTH
PILOT DIAMETER
13-123219-002
Cast Weld-to-Balance
16.50” x 5.00”
9.16”
11.25”
13-123302-002
Cast Balanced
16.50” x 6.00”
9.75”
11.25”
