DRIVE AXLE HUBS
FOR AXLE MODELS: Eaton 18, 23 26, 38D, 44D, D380, D381, D400 (Tag Axles 25LD, H25LD)
Meritor RD-22-145, RS-21-145, RS-21-230, RS-23-160, RS-23-161, RS-23-180, RS-23-240, RD-23-380,
RS-24-160, RS-26-180, RS-26-380, RT-40-145, RT-44-145, RT-46-160, RT-48-180, RT-48-380, RT-52-160,
RT-52-180, RT-53-380, SQ100, SQR100, SSHD (Tag Axles TR, TRD, TT)
HUB NO.
DESCRIPTION
TYPE
04-16062-XXX Drive Axle Hub
Outboard Drum
10 Hole
Serrated Studs
INNER BEARING
CUP
CONE
BOLT CIRCLE
592A
598A or 594A
11.25”
OUTER BEARING
CUP
CONE
572
580

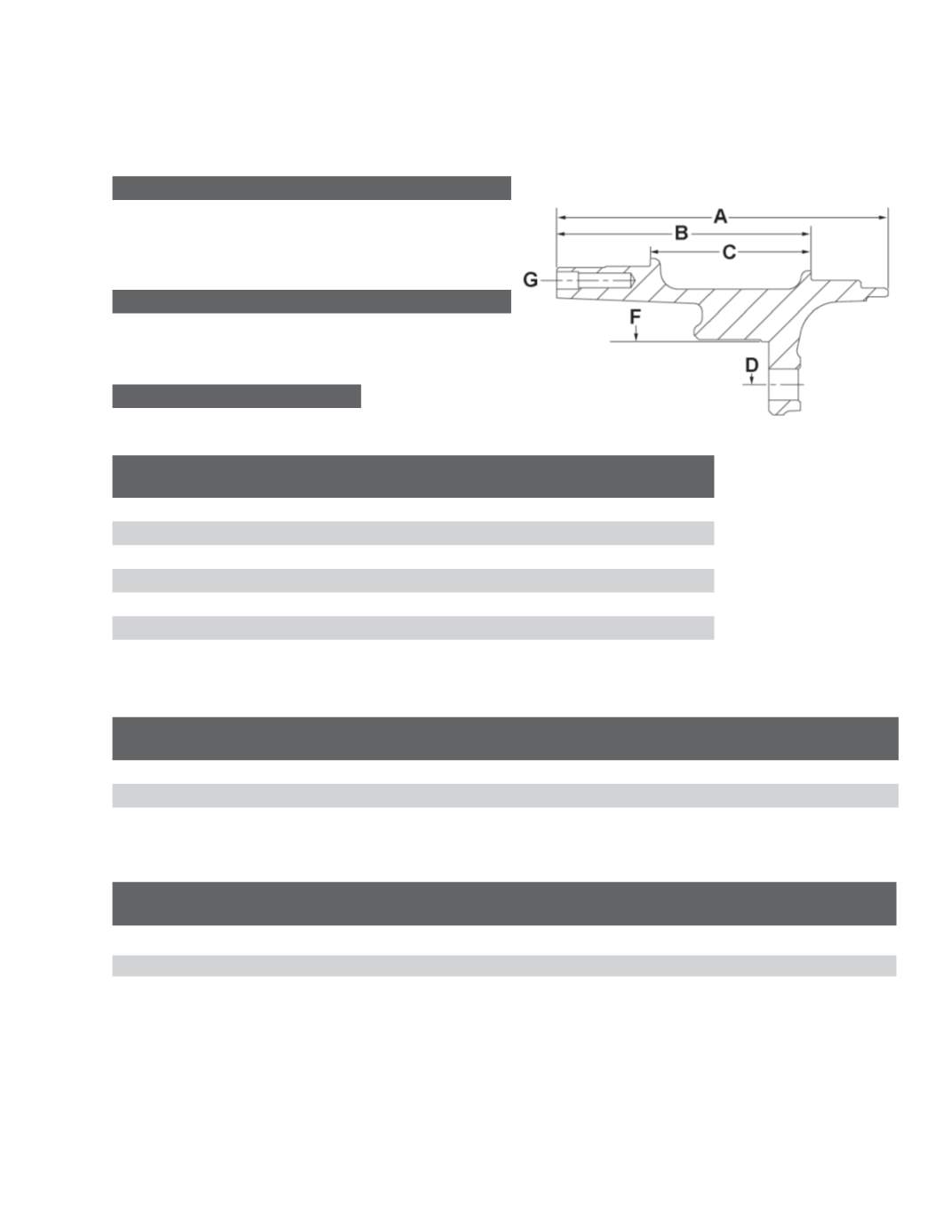

DRAWING
REFERENCE
ITEM
DIMENSION
A
Overall Length
9.75”
B
Outer Hub Cap Face To Inner Bearing Cup Seat
7.75”
C
Distance Between Cups
4.307”
D
Bolt Circle Diameter
11.25”
E
Wheel Stud Quantity
10
F
Pilot Diameter
8.78”
G
Drive Flange Hole Pattern
8, 5/8”-11; 7.00” B.C.
HUB PILOTED - Hub Assemblies without Drum or Rotor
HUB PART
NUMBER
HAND
WHEEL TYPE
DRUM TYPE
WHEEL STUD
NUMBER
DRIVE FLANGE
STUD NUMBER ABS RING NUMBER
04-16062-005
RH
09-001989
08-008551
3237-H-1256
04-16062-007
RH
09-002003
08-008551
3237-H-1256
04-16062-020
RH
09-001728
08-205740
HUB PILOTED - Hub and Drum Assemblies
HUB PART NUMBER WHEEL TYPE
DRUM
TYPE WHEEL STUD
DRIVE FLANGE
STUD NUMBER
ABS RING
NUMBER DRUM SIZE DRUM NUMBER DRUM POSITION
14-16062-1000MTB
Steel
Cast
09-001728 08-205740
3237-H-
1256
16.5 x 7 85-123207-002 Outboard
14-16062-1029MTB
Aluminum, Steel
Cast
09-001989 08-008551
16.5 x 7 85-123365-002 Outboard
14-16062-1030MTB
Aluminum
Cast
09-001989 08-008551
3237-H-
1256
16.5 x 7 85-123365-002 Outboard
