FRONT AXLE HUBS
FOR AXLE MODELS: Dana Spicer I-100, I-120, I-140, W15
Eaton EFA-12F3, EFA-12F4, EFA-13F4
Meritor FF-931, FF-941, FF-942, FF-943, FF-944, FF-961, FG-931, FG-900, FG-941, FG-943
Westport F3W-1200, F3W-1400, F6W-1200, F6W-1400
HUB NO.
DESCRIPTION
TYPE
05-15633-XXX
Front Axle Hub
Outboard Drum
10 Hole
Serrated Studs
INNER BEARING
CUP
CONE
BOLT CIRCLE
HM212011 HM212047 or HM212049
11.25”
OUTER BEARING
CUP
CONE
3720
3782

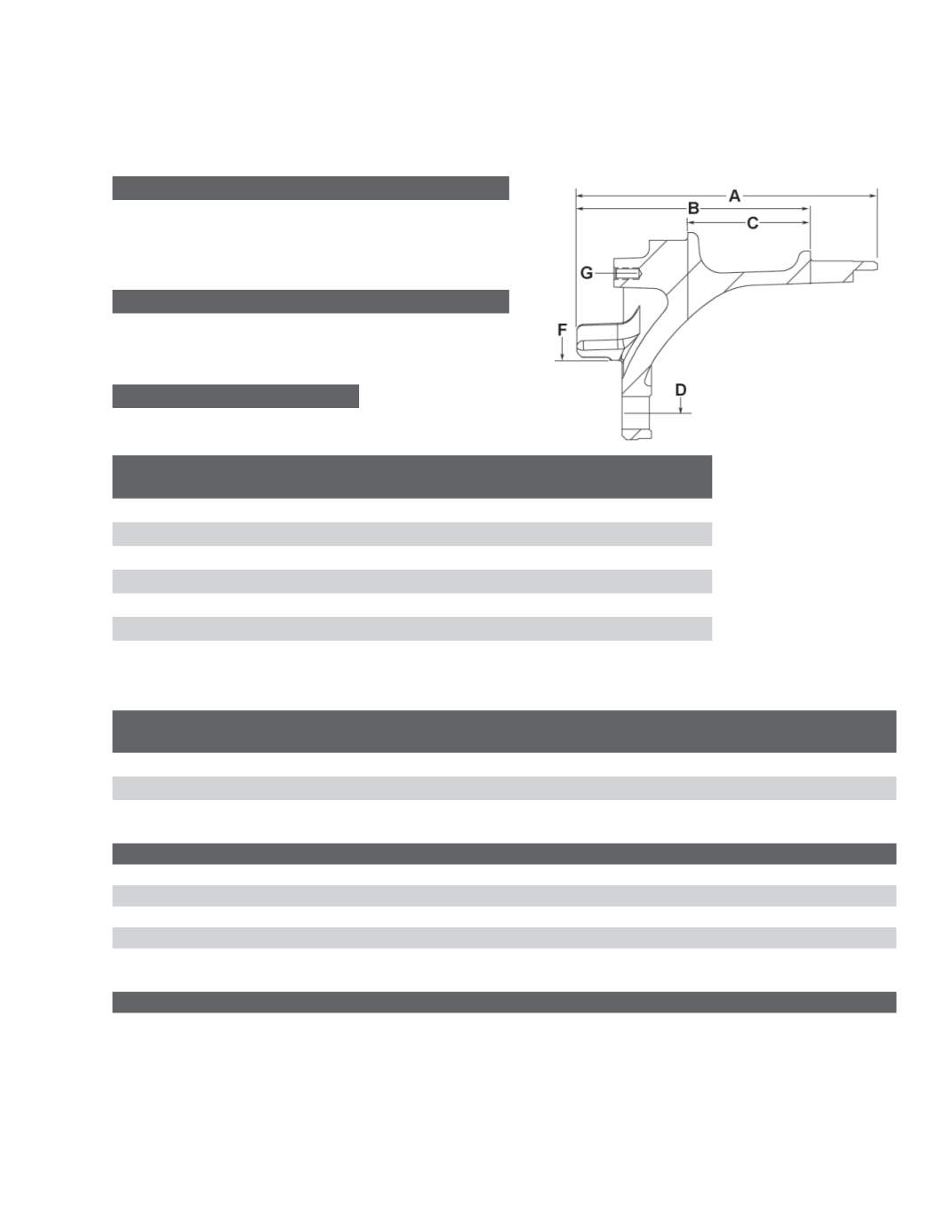

DRAWING
REFERENCE
ITEM
DIMENSION
A
Overall Length
8.127”
B
Outer Hub Cap Face To Inner Bearing Cup Seat
4.44”
C
Distance Between Cups
3.375”
D
Bolt Circle Diameter
11.25”
E
Wheel Stud Quantity
10
F
Pilot Diameter
8.77”
G
Drive Flange Hole Pattern
6, 5/16”-18; 4.50” B.C.
STUD PILOTED - Hub Assemblies without Drum or Rotor
HUB PART NUMBER
HAND
WHEEL TYPE
DRUM TYPE
WHEEL STUD
ABS RING
NUMBER
05-15633-002
RH
09-001999
05-15633-003
LH
09-002000
WHEEL STUDS USED WITH HUB IN ASSEMBLIES
WHEEL STUD NO.
THREAD TYPE SIZE
STYLE
WHEEL TYPE
USE WITH DRUM TYPE
09-001925
Serrated 1-1/8”-16 R
Stud Piloted
Steel
Cast
09-001926
Serrated 1-1/8”-16 L
Stud Piloted
Steel
Cast
09-001999
Serrated 1-1/8”-16 R
Stud Piloted
Aluminum
Cast
09-002000
Serrated 1-1/8”-16 R
Stud Piloted
Aluminum
Cast
DRUMS USED WITH HUB IN ASSEMBLIES
DRUM NO.
DRUM TYPE
BRAKE SIZE
OVERALL DEPTH
PILOT DIAMETER
85-123420-002
Cast MTB
15.00” x 4.00”
8.85”
8.78”
