DRIVE AXLE HUBS
FOR AXLE MODELS: Meritor 61000
HUB NO.
DESCRIPTION
TYPE
04-16012-XXX Drive Axle Hub
Outboard Drum
10 Hole
Serrated Stud
INNER BEARING
CUP
CONE
BOLT CIRCLE
653
13.189”
OUTER BEARING
CUP
CONE
6535

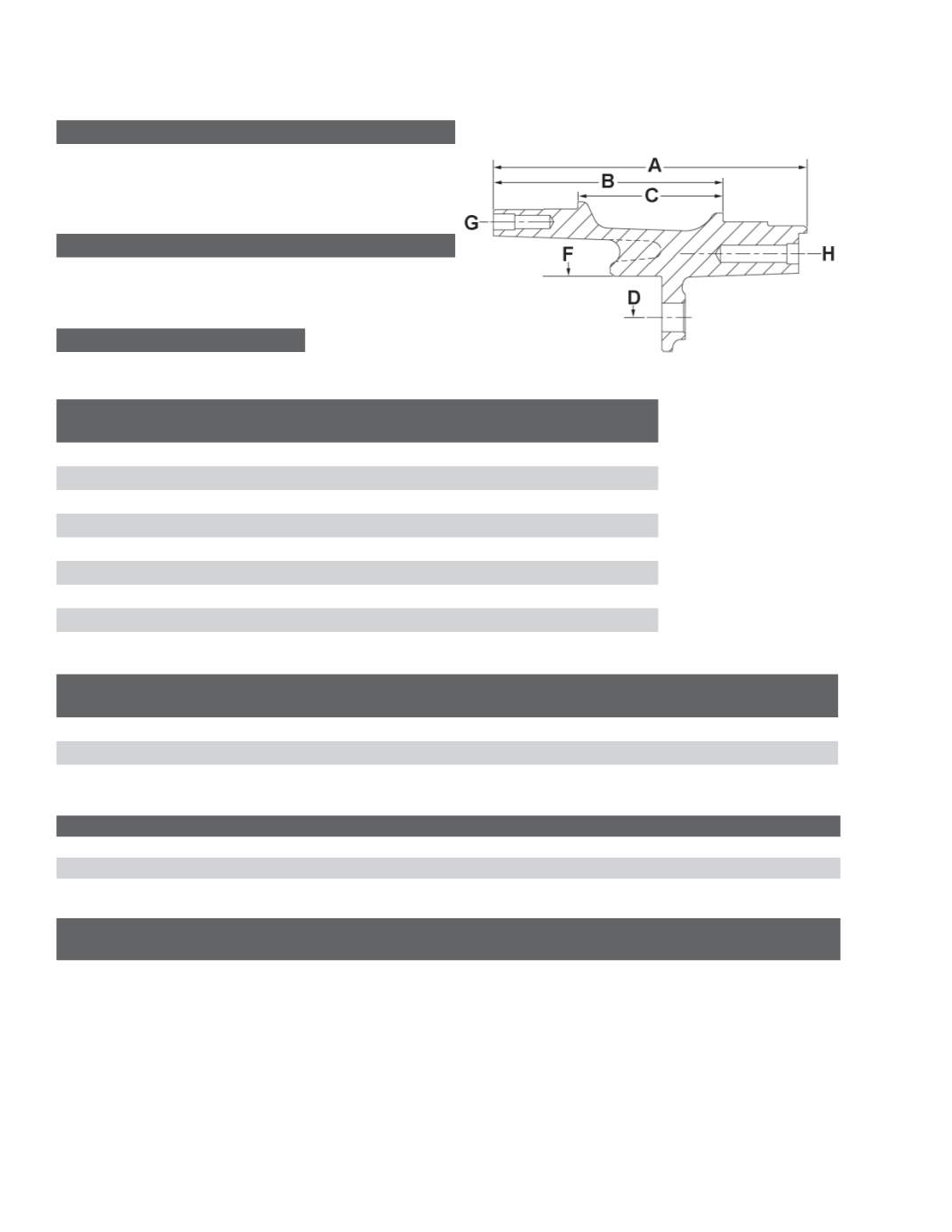

DRAWING
REFERENCE
ITEM
DIMENSION
A
Overall Length
8.575”
B
Outer Hub Cap Face To Inner Bearing Cup Seat
5.128”
C
Distance Between Cups
3.398”
D
Bolt Circle Diameter
13.189”
E
Wheel Stud Quantity
10
F
Pilot Diameter
11.25”
G
Drive Flange Hole Pattern
10, 9/16”-12; 7.25” B.C.
H
Drive Flange Hole Pattern
6, 5/16”-18; 6.94” B.C.
HUB PILOTED - Hub Assemblies without Drum or Rotor
HUB PART
NUMBER
HAND
WHEEL TYPE
DRUM TYPE
WHEEL STUD
NUMBER
DRIVE FLANGE
STUD NUMBER ABS RING NUMBER
04-16012-002
RH
09-002004
4-X-1612
04-16012-003
RH
09-002229
4-X-1612
WHEEL STUDS USED WITH HUB IN ASSEMBLIES
WHEEL STUD NO.
THREAD TYPE SIZE
STYLE
WHEEL TYPE
USE WITH DRUM TYPE
09-002004
Serrated M22 x 1.5
Hub Piloted
Aluminum, Steel
Cast
09-002229
Serrated M22 x 1.5
Hub Piloted
DRIVE FLANGE STUDS USED WITH HUB IN ASSEMBLIES
HUB END
NUT END
DRIVE FLANGE STUD OVERALL LENGTH BODY DIAMETER THREAD SIZE THREAD LENGTH THREAD SIZE THREAD LENGTH
4-X-1612
2.50”
.56”
.56”-12
.84”
.56”-18
.91”
