FRONT AXLE HUBS
FOR AXLE MODELS: Dana Spicer I-160, I-180, I-200, I-220
Eaton EFA-18F3, EFA-20T2, EFA-22T2/T5, EFA-24T2/T5
Meritor FG-942, FL-931, FL-941, FL-943, FL-951
HUB NO.
DESCRIPTION
TYPE
05-15925-XXX
Front Axle Hub
Outboard drum
10 Hole
Serrated Studs
INNER BEARING
CUP
CONE
BOLT CIRCLE
6420
6461A
11.25”
OUTER BEARING
CUP
CONE
552A
555S

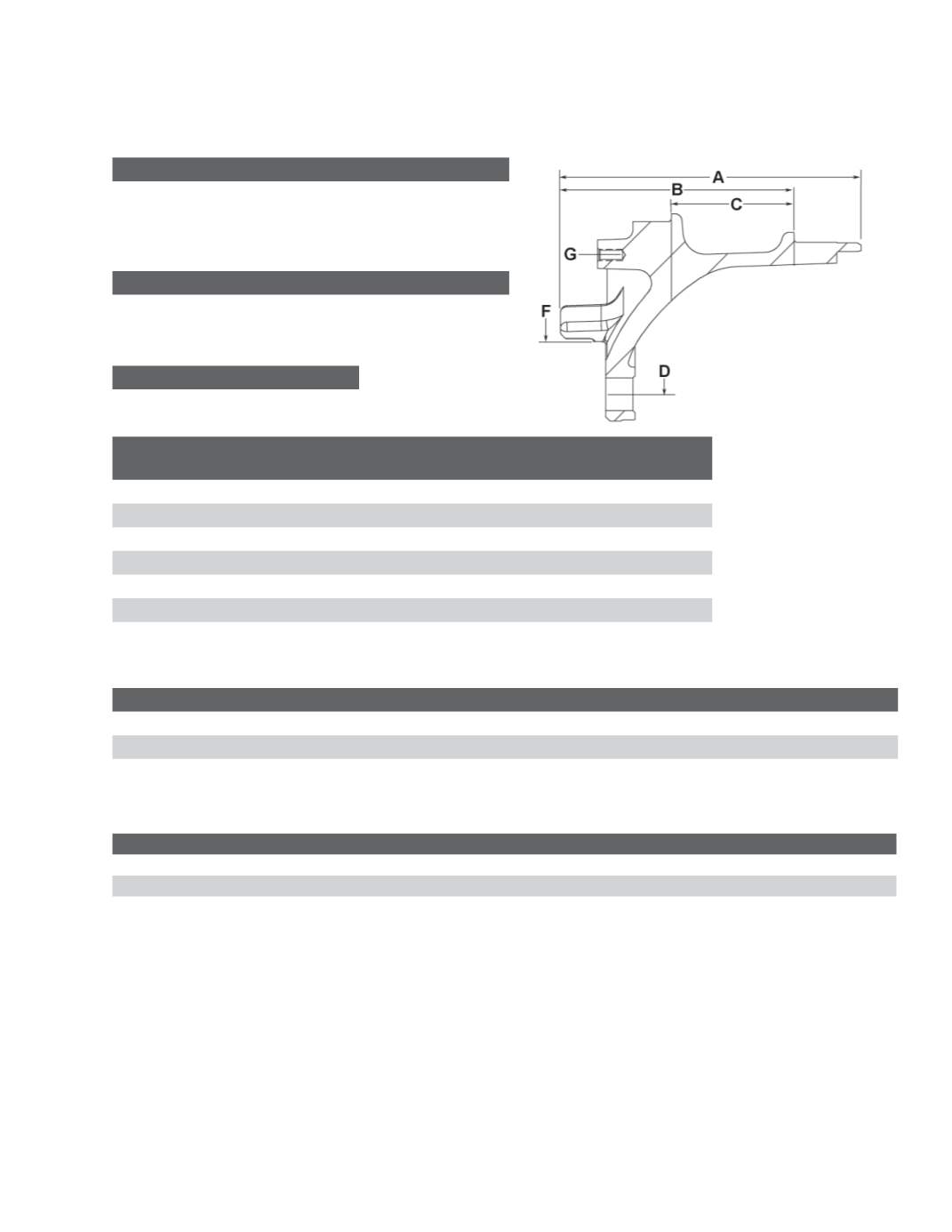

DRAWING
REFERENCE
ITEM
DIMENSION
A
Overall Length
7.29”
B
Outer Hub Cap Face To Inner Bearing Cup Seat
4.146”
C
Distance Between Cups
2.335”
D
Bolt Circle Diameter
11.25”
E
Wheel Stud Quantity
10
F
Pilot Diameter
8.777”
G
Drive Flange Hole Pattern
6, 3/8”-16; 6.00” B.C.
STUD PILOTED - Hub Assemblies without Drum or Rotor
HUB PART NUMBER
HAND
WHEEL TYPE
DRUM TYPE
WHEEL STUD
ABS RING NUMBER
05-15925-002
RH
09-001999
09-002134
05-15925-003
LH
09-002000
09-002134
05-15925-004
RH
09-002173
09-002134
WHEEL STUDS USED WITH HUB IN ASSEMBLIES
WHEEL STUD NO.
THREAD TYPE SIZE
STYLE
WHEEL TYPE
USE WITH DRUM TYPE
09-001999
Serrated 1-1/8”-16 R
Stud Piloted
Aluminum
Cast
09-002000
Serrated 1-1/8”-16 R
Stud Piloted
Aluminum
Cast
09-002173
Serrated 7/8”-14 R
Stud Piloted
Steel
Cast
