FRONT AXLE HUBS
FOR AXLE MODELS: Dana I-75, I-80
Meritor FC-931, FC-941
Navistar 02ADB, 02101, 02103, 02104
HUB NO.
DESCRIPTION
TYPE
05-15935-XXX
Front Axle Hub
Outboard Drum
10 Hole
Serrated Studs
INNER BEARING
CUP
CONE
BOLT CIRCLE
JM207010
JM207049 (A)
11.250”
OUTER BEARING
CUP
CONE
25820
25877

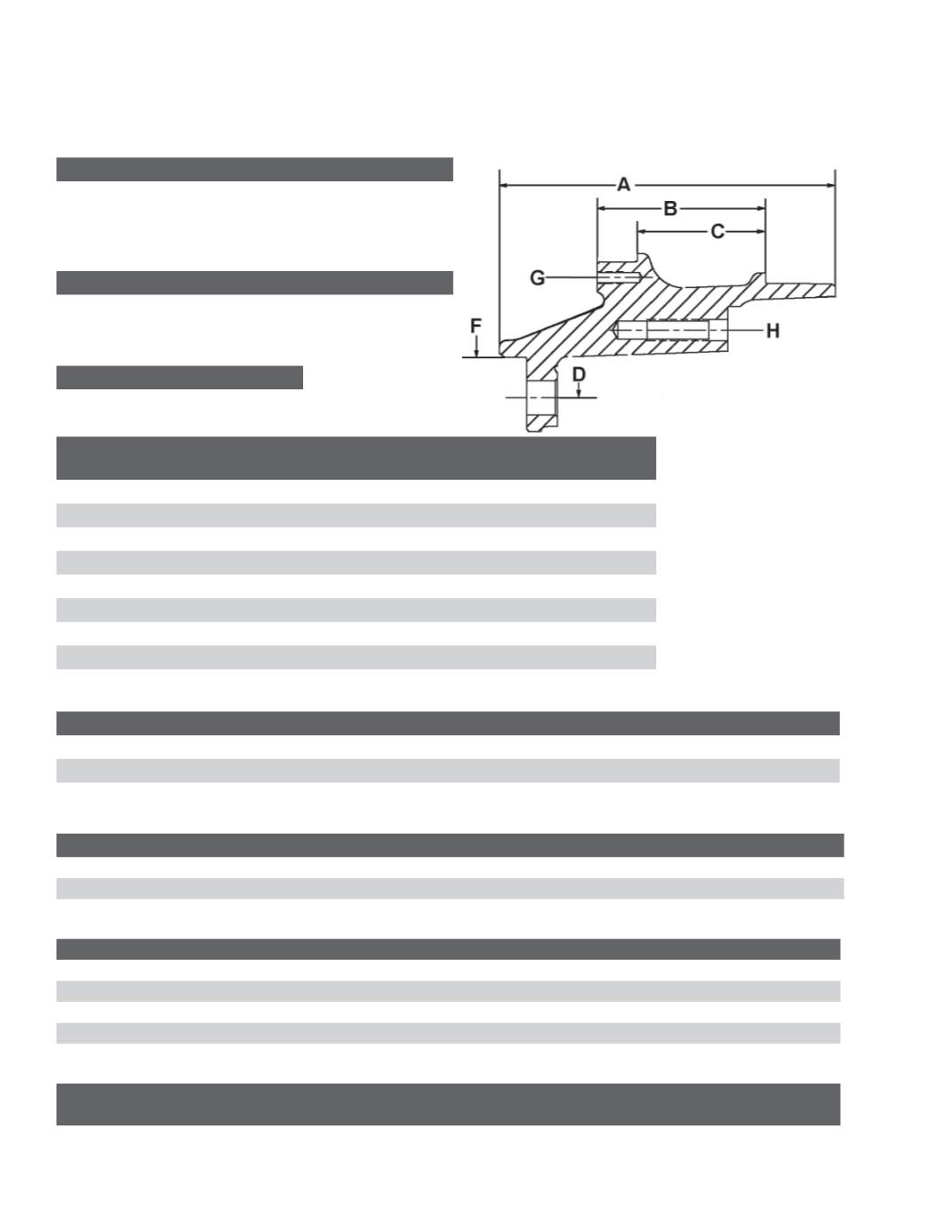

DRAWING
REFERENCE
ITEM
DIMENSION
A
Overall Length
8.34”
B
Outer Hub Cap Face To Inner Bearing Cup Seat
4.36”
C
Distance Between Cups
2.92”
D
Bolt Circle Diameter
11.25”
E
Wheel Stud Quantity
10
F
Pilot Diameter
8.65”
G
Drive Flange Hole Pattern
4, 5/16”-18; 3.625” B.C.
H
Rotor Mounting Hole Pattern
5, 3/4”-10; 6.75” B.C.
STUD PILOTED - Hub Assemblies without Drum or Rotor
HUB PART NUMBER
HAND
WHEEL TYPE
DRUM TYPE
WHEEL STUD
ABS RING NUMBER
05-15935-002
RH
09-001997
05-15935-003
LH
09-001998
HUB PILOTED - Hub Assemblies without Drum or Rotor
HUB PART NUMBER
WHEEL TYPE
DRUM TYPE
WHEEL STUD
ABS RING NUMBER
05-15935-004
09-001958
05-15935-005
09-001988
WHEEL STUDS USED WITH HUB IN ASSEMBLIES
WHEEL STUD NO.
THREAD TYPE SIZE
STYLE
WHEEL TYPE
USE WITH DRUM TYPE
09-001958
Serrated M22 x 1.5
Hub Piloted
09-001988
Serrated M22 x 1.5
Hub Piloted
Steel
Cast
09-001997
Serrated 3/4”-16 R
Stud Piloted
09-001998
Serrated 3/4”-16 L
Stud Piloted
ROTORS USED WITH HUB IN ASSEMBLIES
BOLT HOLES
ROTOR PART NO.
OUTSIDE DIA.
OVERALL DEPTH BOLT CIRCLE DIA.
DIAMETER
NUMBER
PILOT DIA.
23-123573-009
15.000
3.500
6.750
0.781
5
5.400
