FRONT AXLE HUBS
FOR AXLE MODELS: Meritor FC-941
HUB NO.
DESCRIPTION
TYPE
05-15938-XXX
Front Axle Hub
Outboard Drum
10 Hole
Serrated Studs
INNER BEARING
CUP
CONE
BOLT CIRCLE
JM207010
JM207049
11.25”
OUTER BEARING
CUP
CONE
25820
25878

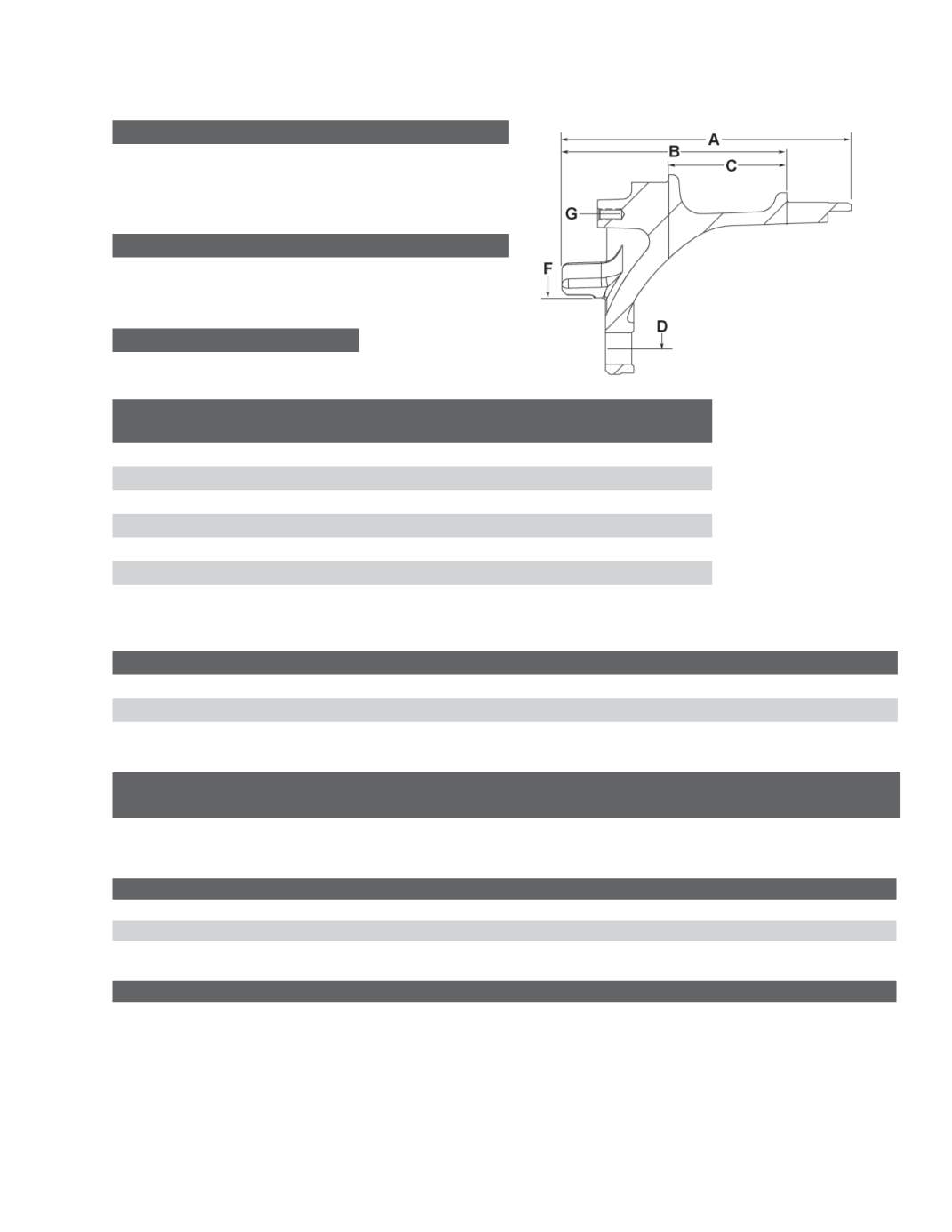

DRAWING
REFERENCE
ITEM
DIMENSION
A
Overall Length
8.64”
B
Outer Hub Cap Face To Inner Bearing Cup Seat
4.36”
C
Distance Between Cups
2.92”
D
Bolt Circle Diameter
11.25”
E
Wheel Stud Quantity
10
F
Pilot Diameter
8.777”
G
Drive Flange Hole Pattern
4, 5/16”-18; 3.625” B.C.
HUB PILOTED - Hub Assemblies without Drum or Rotor
HUB PART NUMBER
WHEEL TYPE
DRUM TYPE
WHEEL STUD
ABS RING NUMBER
05-15938-1001
09-001989
3237K1259
05-15938-1002
09-002002
3237M1261
HUB PILOTED - Hub and Drum Assemblies
HUB PART NUMBER WHEEL TYPE
DRUM
TYPE
WHEEL STUD
NUMBER
ABS RING
NUMBER DRUM SIZE
DRUM NUMBER
DRUM
POSITION
15-15938-1003MTB
Steel
Cast
09-002002 3237M1261
15 x 5
85-123465-002
Outboard
WHEEL STUDS USED WITH HUB IN ASSEMBLIES
WHEEL STUD NO.
THREAD TYPE SIZE
STYLE
WHEEL TYPE
USE WITH DRUM TYPE
09-001989
Serrated M22 x 1.5
Hub Piloted
Steel Wheel
Cast
09-002002
Serrated M22 x 1.5
Hub Piloted
Steel Wheel
X30
DRUMS USED WITH HUB IN ASSEMBLIES
DRUM NO.
DRUM TYPE
BRAKE SIZE
OVERALL DEPTH
PILOT DIAMETER
85-123465-002
Cast MTB
15.00” x 5.00”
10.08”
8.78”
