FRONT AXLE HUBS
FOR AXLE MODELS: GMC
HUB NO.
DESCRIPTION
TYPE
05-15874-XXX
Front Axle Hub
Outboard Drum
10 Hole
Serrated Studs
INNER BEARING
CUP
CONE
BOLT CIRCLE
Y33212
11.25”
OUTER BEARING
CUP
CONE
Y32208

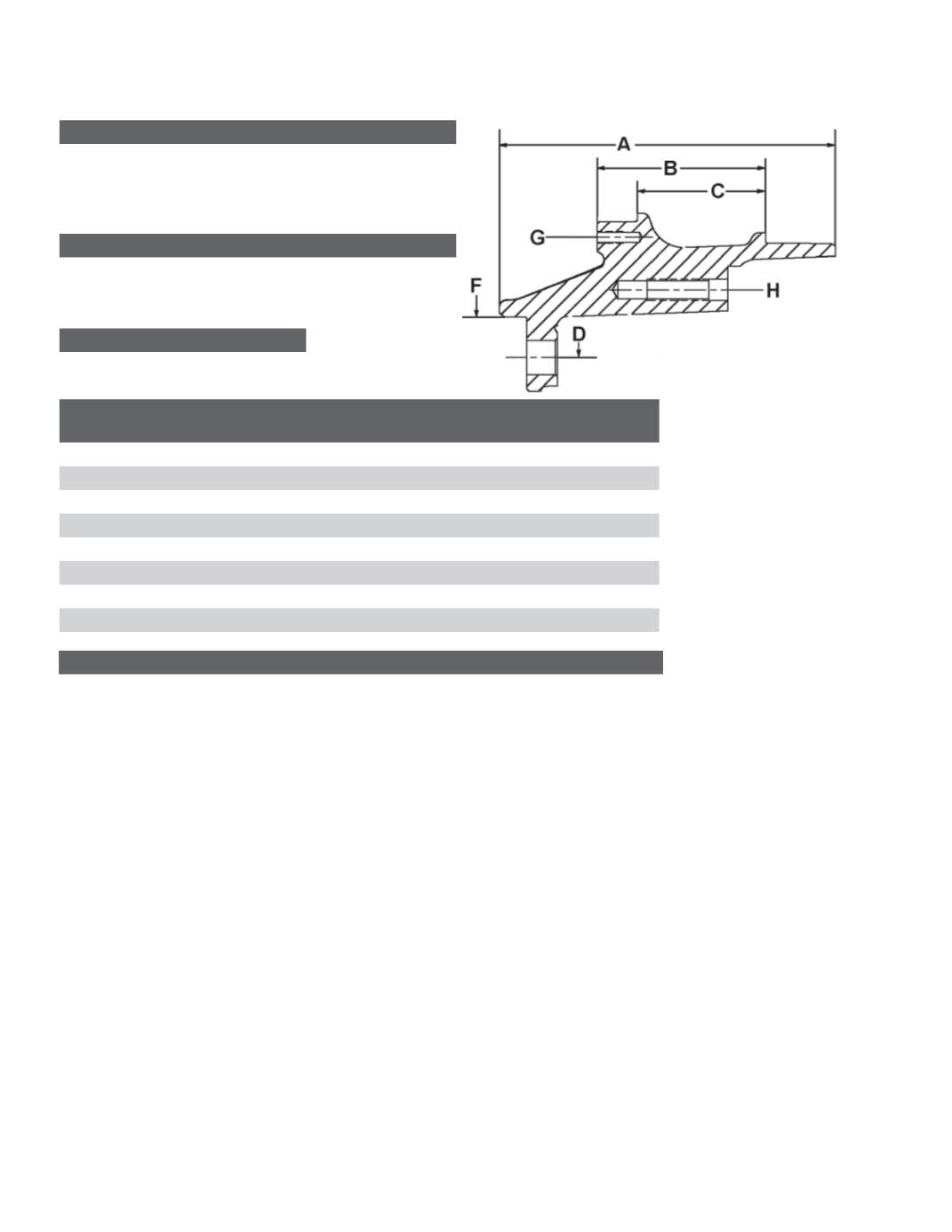

DRAWING
REFERENCE
ITEM
DIMENSION
A
Overall Length
8.965”
B
Outer Hub Cap Face To Inner Bearing Cup Seat
3.679”
C
Distance Between Cups
2.054”
D
Bolt Circle Diameter
11.25”
E
Wheel Stud Quantity
10
F
Pilot Diameter
8.647”
G
Drive Flange Hole Pattern
6, 5/16”-18; 4.50” B.C.
H
Rotor Mounting Hole Pattern
10, 9/16”-12; 7.25” B.C.
HUB PART NUMBER
ABS RING NUMBER
COMMENTS
05-15874-003
09-002121
