FRONT AXLE HUBS
FOR AXLE MODELS: Meritor FC-941
HUB NO.
DESCRIPTION
TYPE
05-15931-XXX
Front Axle Hub
Outboard Drum
8 Hole
Serrated Studs
INNER BEARING
CUP
CONE
BOLT CIRCLE
JM207010
JM207049
10.827”
OUTER BEARING
CUP
CONE
25820
25878

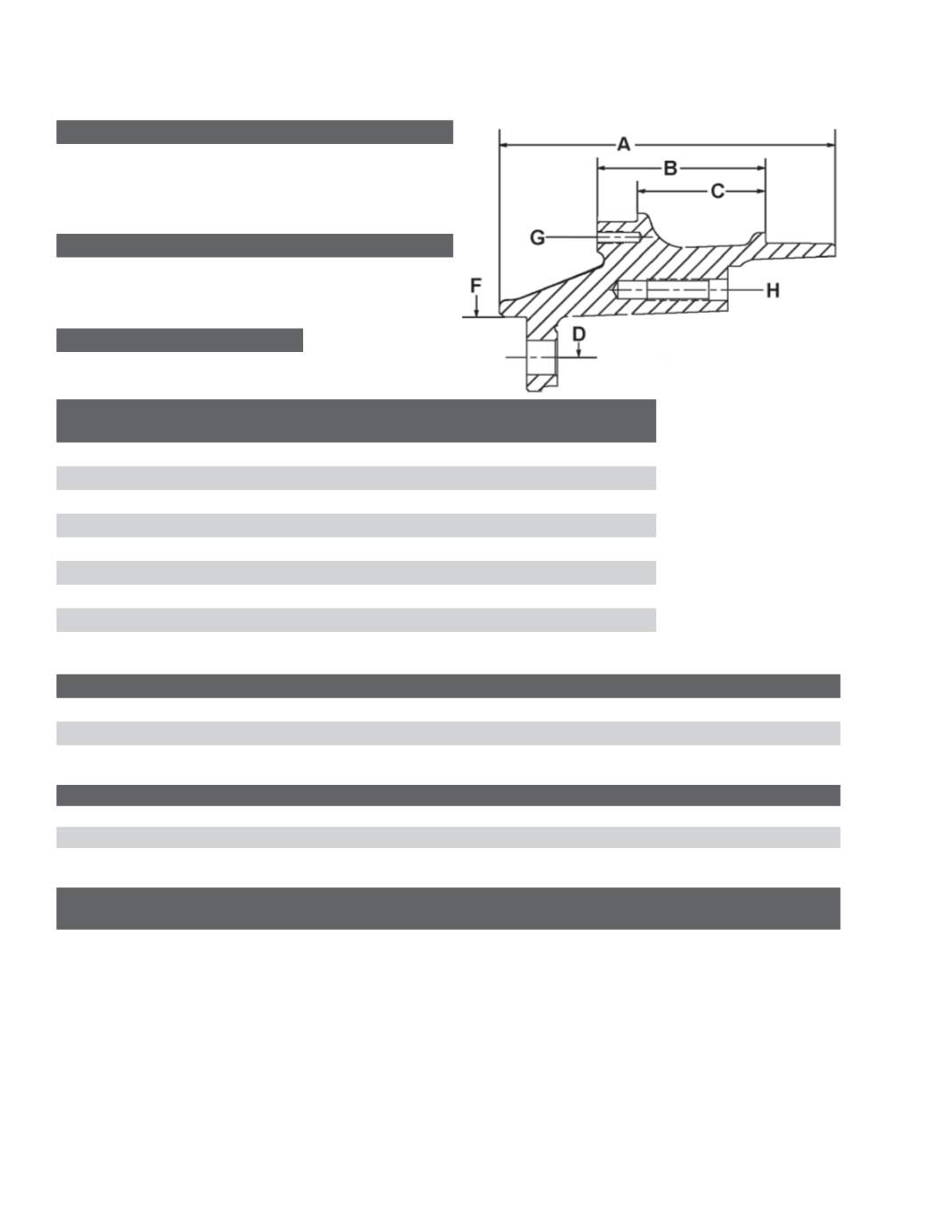

DRAWING
REFERENCE
ITEM
DIMENSION
A
Overall Length
8.26”
B
Outer Hub Cap Face To Inner Bearing Cup Seat
4.36”
C
Distance Between Cups
2.92”
D
Bolt Circle Diameter
10.827”
E
Wheel Stud Quantity
8
F
Pilot Diameter
8.689”
G
Drive Flange Hole Pattern
4, 5/16”-18; 3.625” B.C.
H
Rotor Mounting Hole Pattern
5, 3/4”-10; 6.75” B.C.
HUB PILOTED - Hub Assemblies without Drum or Rotor
HUB PART NUMBER
WHEEL TYPE
DRUM TYPE
WHEEL STUD
ABS RING NUMBER
05-15931-002
09-001958
05-15931-003
09-001988
WHEEL STUDS USED WITH HUB IN ASSEMBLIES
WHEEL STUD NO.
THREAD TYPE SIZE
STYLE
WHEEL TYPE
USE WITH DRUM TYPE
09-001958
Serrated M22 x 1.5
Hub Piloted
09-001988
Serrated M22 x 1.5
Hub Piloted
Steel
Cast
ROTORS USED WITH HUB IN ASSEMBLIES
BOLT HOLES
ROTOR PART NO.
OUTSIDE DIA.
OVERALL DEPTH BOLT CIRCLE DIA.
DIAMETER
NUMBER
PILOT DIA.
23-123573-009
15.000
3.500
6.750
0.781
5
5.400
