FRONT AXLE HUBS
FOR AXLE MODELS: Meritor FC-941
HUB NO.
DESCRIPTION
TYPE
05-15955-XXX
Front Axle Hub
Outboard Drum
10 Hole
Serrated Studs
INNER BEARING
CUP
CONE
BOLT CIRCLE
JM207010
JM207049
10.827”
OUTER BEARING
CUP
CONE
25820
25878

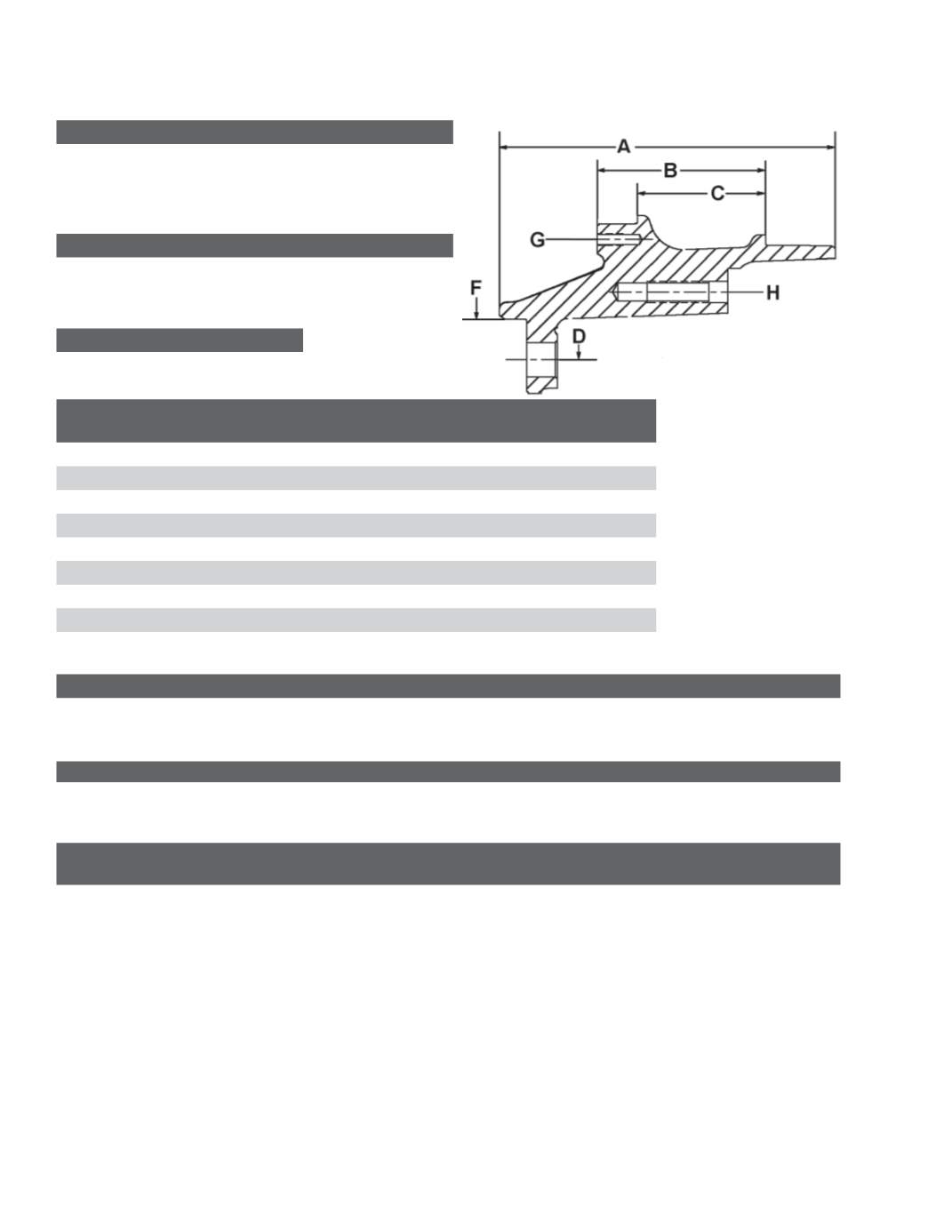

DRAWING
REFERENCE
ITEM
DIMENSION
A
Overall Length
8.41”
B
Outer Hub Cap Face To Inner Bearing Cup Seat
4.36”
C
Distance Between Cups
2.92”
D
Bolt Circle Diameter
10.827”
E
Wheel Stud Quantity
10
F
Pilot Diameter
8.689”
G
Drive Flange Hole Pattern
4, 5/16”-18; 3.634” B.C.
H
Rotor Mounting Hole Pattern
10, 9/16”-12; 7.25” B.C.
HUB PILOTED - Hub Assemblies without Drum or Rotor
HUB PART NUMBER
WHEEL TYPE
DRUM TYPE
WHEEL STUD
ABS RING NUMBER
05-15955-1000
09-001826
WHEEL STUDS USED WITH HUB IN ASSEMBLIES
WHEEL STUD NO.
THREAD TYPE SIZE
STYLE
WHEEL TYPE
USE WITH DRUM TYPE
09-001826
Serrated M20 x 1.5
Hub Piloted
ROTORS USED WITH HUB IN ASSEMBLIES
BOLT HOLES
ROTOR PART NO.
OUTSIDE DIA.
OVERALL DEPTH BOLT CIRCLE DIA.
DIAMETER
NUMBER
PILOT DIA.
23-123557-009
15.375
3.400
7.250
0.594
10
6.001
