TRAILER HUBS PRESET
®
BY MERITOR
FOR AXLE MODELS: Meritor TP
HUB NO.
DESCRIPTION
TYPE
04-16040-XXX
Trailer Axle Hub
Outboard Drum
10 Hole
Serrated Studs

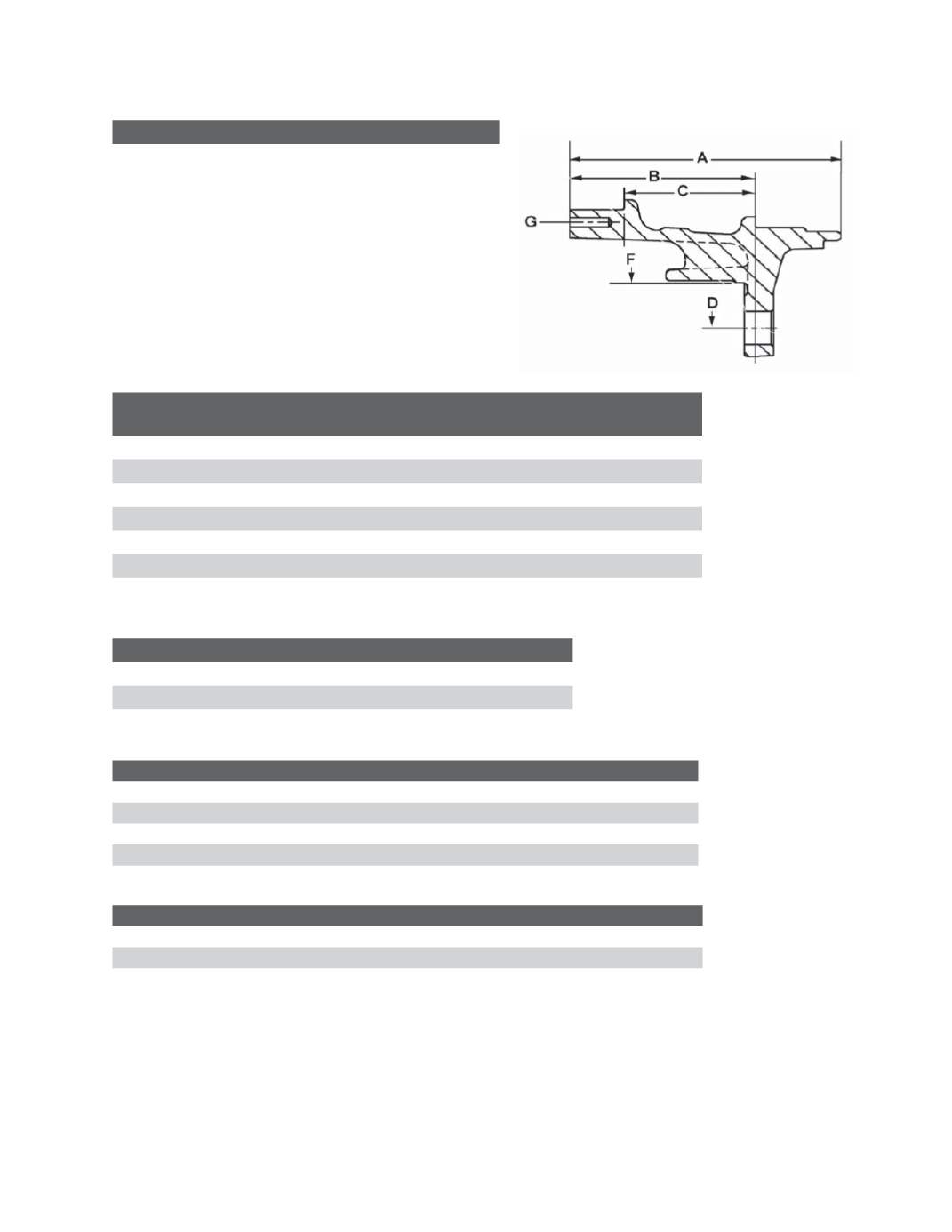

DRAWING
REFERENCE
ITEM
DIMENSION
A
Overall Length
8.08”
B
Outer Hub Cap Face To Inner Bearing Cup Seat
5.96”
C
Distance Between Cups
4.50”
D
Bolt Circle Diameter
11.25”
E
Wheel Stud Quantity
10
F
Pilot Diameter
8.78”
G
Drive Flange Hole
Pattern
6, 5/16”-18; 6.75” B.C.
HUB PART NUMBER
STUD NUMBER
ABS RING NUMBER
04-16040-010PST
09-001989
09-001867
04-16040-011PST
09-002003
09-001867
PRESET
®
BY MERITOR HUB SERVICE KITS
PART NUMBER
HUB TYPE
COMMENTS
R930178
TP
Spacer Kit
R930180
TP
Bearing Set
R930182
TP
Seal Kit
R930184
TP
Complete Rebuild Kit - Bearings, Spacer and Seal
PRESET
®
BY MERITOR HUBCAPS
PART NUMBER
HUB TYPE
COMMENTS
3262-J-1388
TP
Oil
3262-M-1391
TP
Grease
