TRAILER HUBS
FOR AXLE MODELS: Dana Spicer Eaton 225P, 230P, P22
Fruehauf Pro-Par
Hendrickson HP
Ingersoll A24H, A24S, F24
Meritor TP
HUB NO.
DESCRIPTION
TYPE
04-15502-XXX
Trailer Axle Hub
Outboard Drum
10 Hole
Serrated Studs
This hub assembly is no longer available. Replaced by 04-15968.
INNER BEARING
CUP
CONE
BOLT CIRCLE
HM518410
HM518445
11.25”
OUTER BEARING
CUP
CONE
HM518410
HM518445

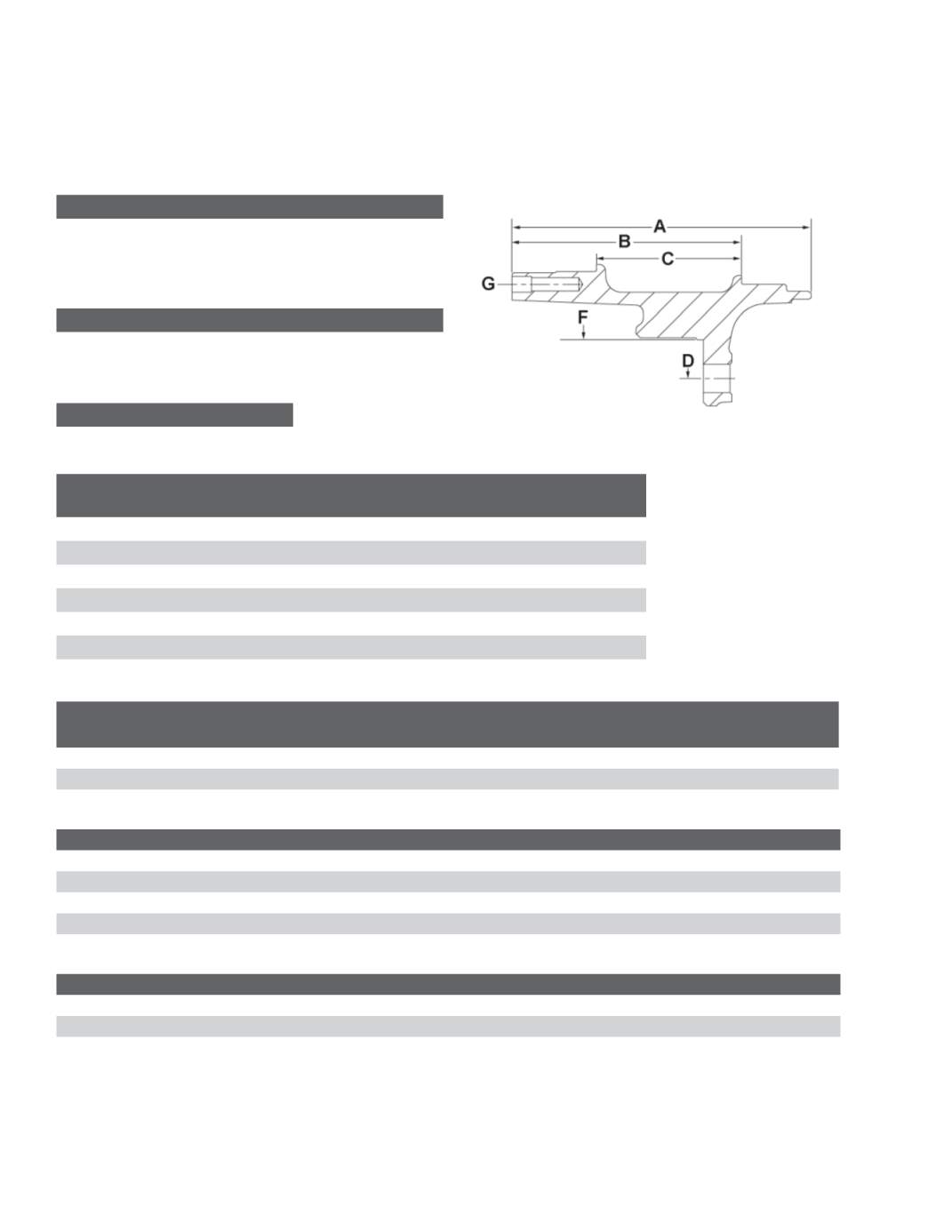

DRAWING
REFERENCE
ITEM
DIMENSION
A
Overall Length
9.06”
B
Outer Hub Cap Face To Inner Bearing Cup Seat
6.94”
C
Distance Between Cups
4.50”
D
Bolt Circle Diameter
11.25”
E
Wheel Stud Quantity
10
F
Pilot Diameter
8.78”
G
Drive Flange Hole Pattern
6.25”-8 TPI
HUB PART NUMBER HAND WHEEL TYPE
DRUM
TYPE STUD NUMBER
ABS RING
NUMBER DRUM SIZE DRUM NUMBER
DRUM
POSITION
14-15968-129
RH Aluminum, Steel
Cast
09-001910
16.5 x 7 03-123207-002 Outboard
14-15968-130
LH Aluminum, Steel
Cast
09-001911
16.5 x 7 03-123207-002 Outboard
STUDS USED WITH HUB IN ASSEMBLIES
STUD NO.
THREAD TYPE SIZE
STYLE
WHEEL TYPE
USE WITH DRUM TYPE
09-001910
Serrated 3/4”-16 R
Stud Piloted
Steel Wheel
Cast
09-001911
Serrated 3/4”-16 L
Stud Piloted
Steel Wheel
Cast
09-001989
Serrated M22 x 1.5
Hub Piloted
Steel Wheel
Cast
09-002003
Serrated M22 x 1.5
Hub Piloted
Aluminum Wheel
Cast
DRUMS USED WITH HUB IN ASSEMBLIES
DRUM NO.
DRUM TYPE
BRAKE SIZE
OVERALL DEPTH
PILOT DIAMETER
03-123207-002
Cast Non-Balanced
16.50” x 7.00”
10.54”
8.78”
03-123365-002
Cast Non-Balanced
16.50” x 7.00”
10.59”
8.78”
