TRAILER HUBS
FOR AXLE MODELS: Meritor TL
HUB NO.
DESCRIPTION
TYPE
04-15981-XXX
Trailer Axle Hub
Outboard Drum
10 Hole
Serrated Studs
INNER BEARING
CUP
CONE
BOLT CIRCLE
11.25”
OUTER BEARING
CUP
CONE

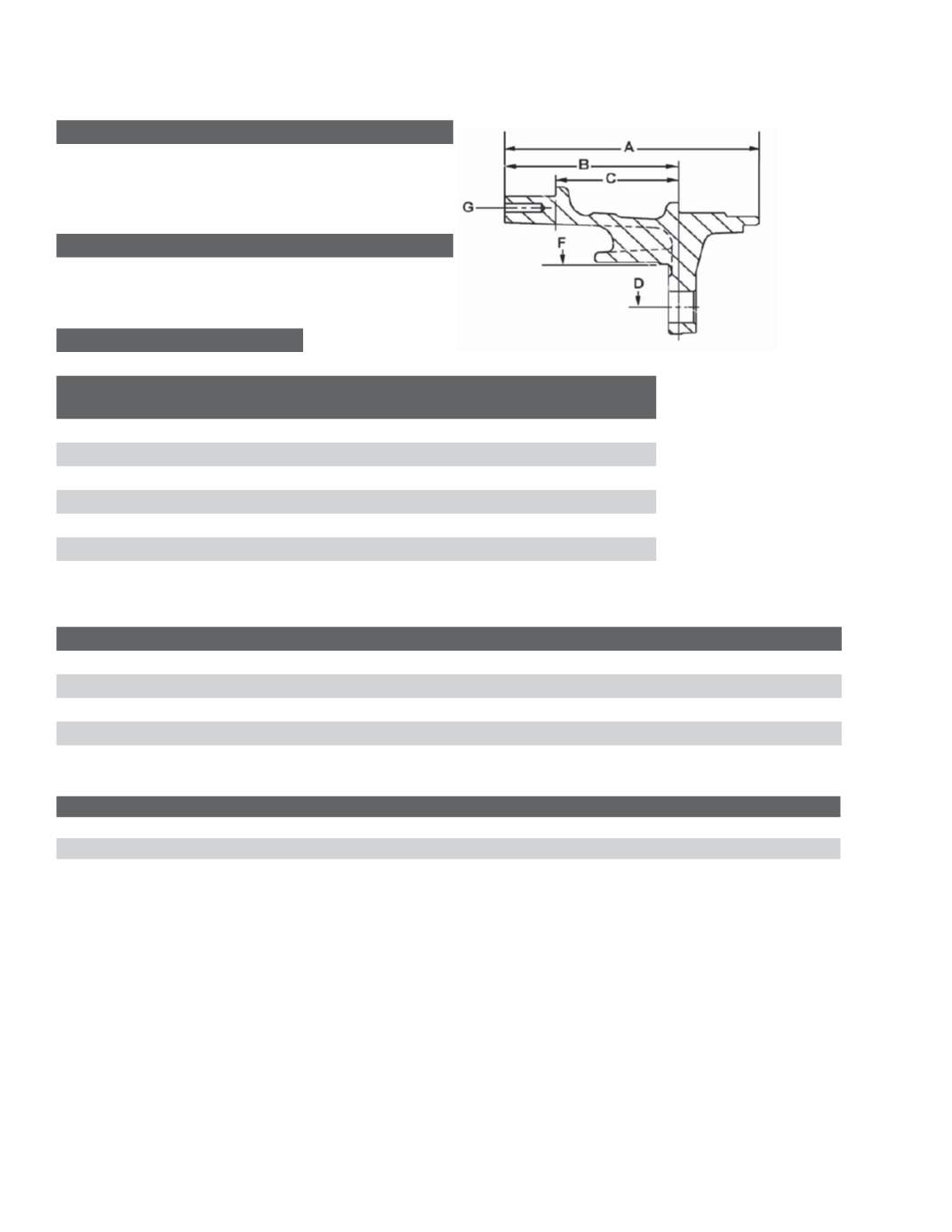

DRAWING
REFERENCE
ITEM
DIMENSION
A
Overall Length
6.220”
B
Outer Hub Cap Face To Inner Bearing Cup Seat
5.12”
C
Distance Between Cups
4.33”
D
Bolt Circle Diameter
11.25”
E
Wheel Stud Quantity
10
F
Pilot Diameter
8.777”
G
Drive Flange Hole Pattern
6, 5/16”-18; 6.375” B.C.
HUB PILOTED - Hub Assemblies without Drum
HUB PART NUMBER
WHEEL TYPE
DRUM TYPE
STUD NUMBER
ABS RING NUMBER
04-15981-016
09-001989
04-15981-017
09-001989
09-001867
04-15981-018
09-002003
04-15981-019
09-002003
09-001867
WHEEL STUDS USED WITH HUB IN ASSEMBLIES
WHEEL STUD NO.
THREAD TYPE SIZE
STYLE
WHEEL TYPE
USE WITH DRUM TYPE
09-001989
Serrated M22 x 1.5
Hub Piloted
Steel Wheel
Cast
09-002003
Serrated M22 x 1.5
Hub Piloted
Aluminum Wheel
Cast
