LITE WEIGHT TN TRAILER HUBS
FOR AXLE MODELS: Meritor TN
HUB NO.
DESCRIPTION
TYPE
04-15984-XXX
Trailer Axle Hub
Outboard Drum
10 Hole
Serrated Studs
See replacement options below.
INNER BEARING
CUP
CONE
BOLT CIRCLE
HM218210
HM218248
11.25”
OUTER BEARING
CUP
CONE
HM212011
HM212049

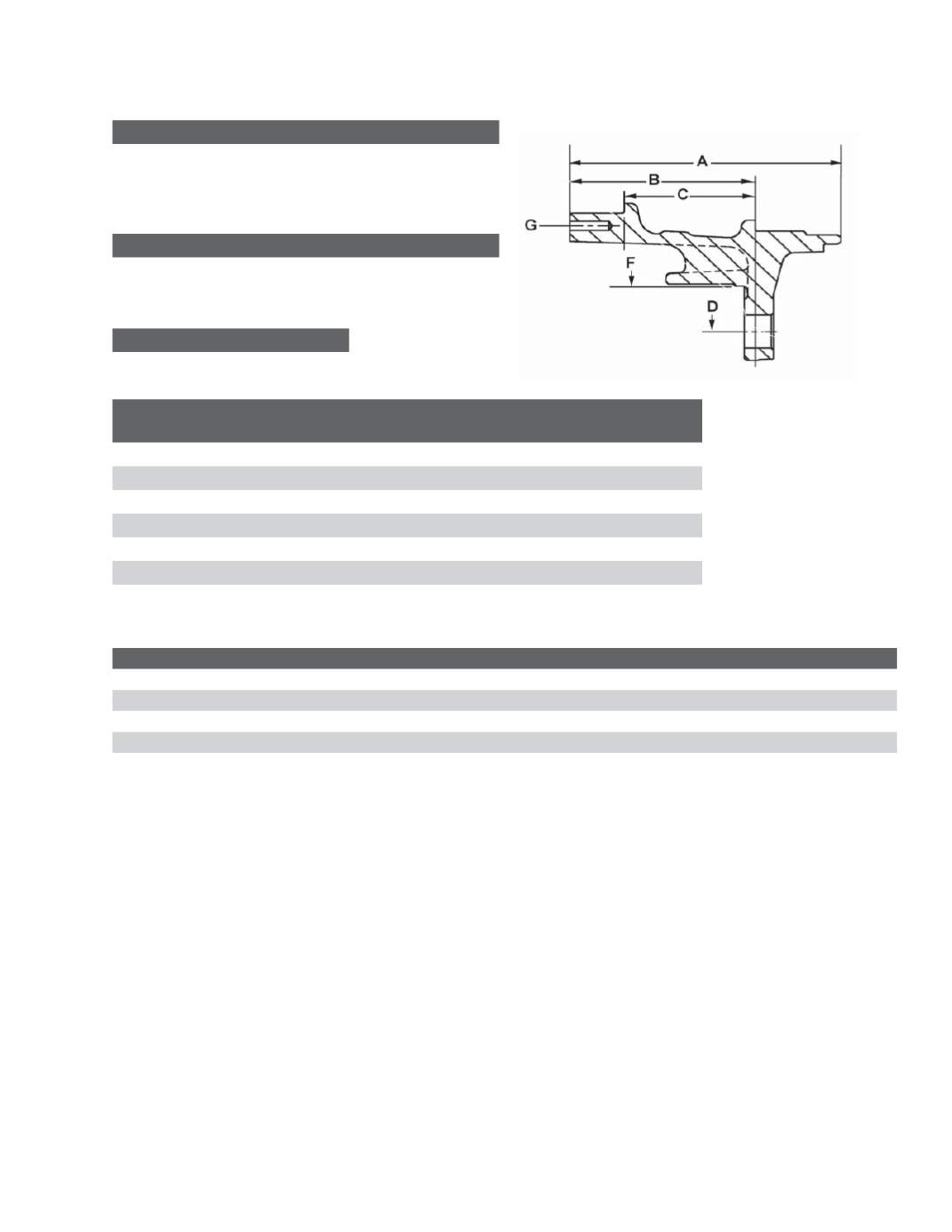

DRAWING
REFERENCE
ITEM
DIMENSION
A
Overall Length
6.93”
B
Outer Hub Cap Face To Inner Bearing Cup Seat
4.73”
C
Distance Between Cups
3.34”
D
Bolt Circle Diameter
11.25”
E
Wheel Stud Quantity
10
F
Pilot Diameter
8.78”
G
Drive Flange Hole Pattern
6, 5/16”-18; 5.50” B.C.
HUB PILOTED - Hub Assemblies without Drum
HUB PART NUMBER
WHEEL TYPE
DRUM TYPE
STUD NUMBER
ABS RING NUMBER
A2-333-A-4733
20-X-2576
R0014889
A3-333-A-4733
R0014889
A6-333-A-4733
20-X-2573
R0014889
A6-333-B-4734
Steel
Cast
R006034
R0014889
04-15984-102
09-002004
09-001867
