LITE WEIGHT TP TRAILER HUBS
FOR AXLE MODELS: Dana Spicer Eaton 225P, 230P, P22 Ingersoll A24H, A24S, F24
Fruehauf Pro-Par Meritor TP
Hendrickson HP
HUB NO.
DESCRIPTION
TYPE
04-15968-XXX
Trailer Axle Hub
Outboard Drum
10 Hole
Serrated Studs
This hub assembly is no longer available.
See replacement options below.
INNER BEARING
CUP
CONE
BOLT CIRCLE
HM518410
HM518445
11.25”
OUTER BEARING
CUP
CONE
HM518410
HM518445

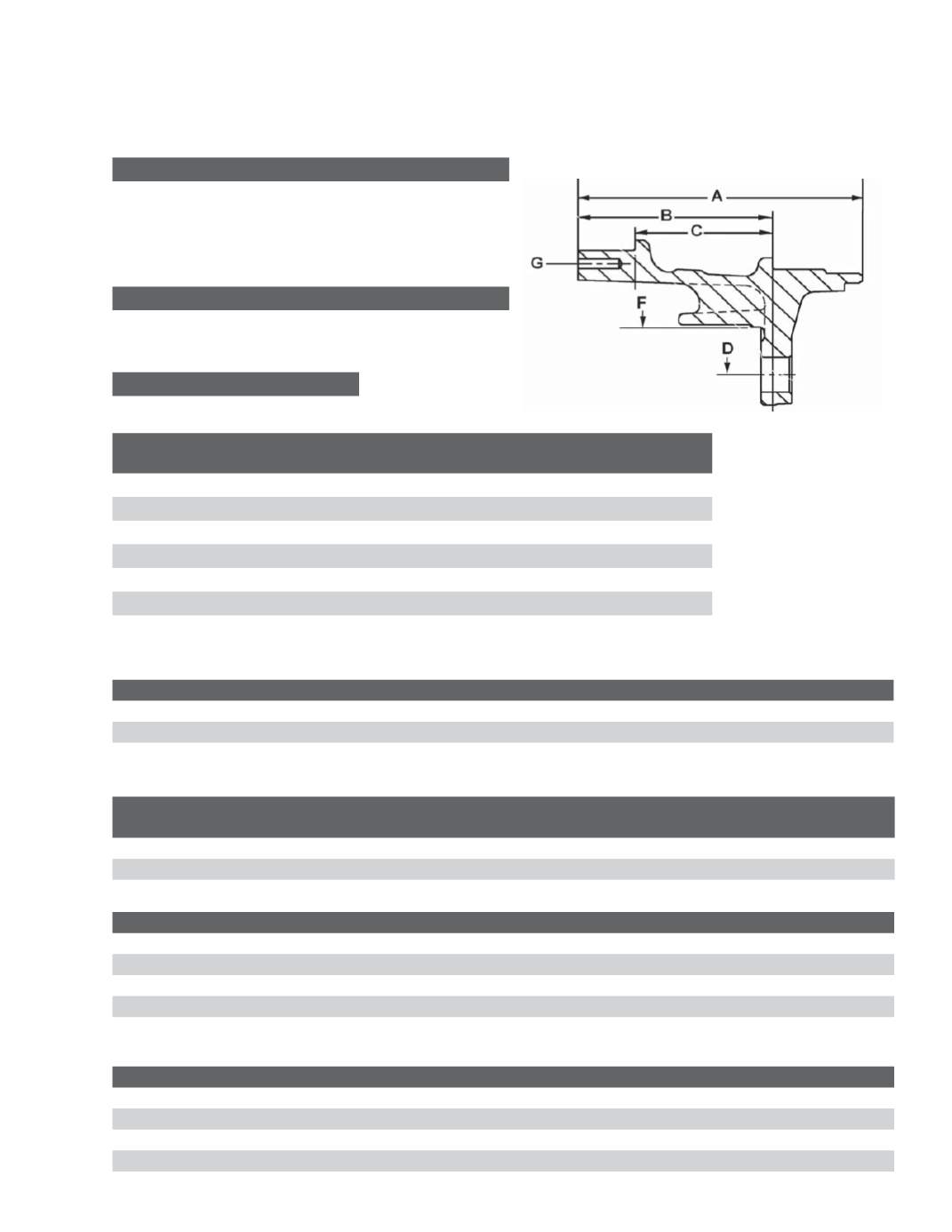

DRAWING
REFERENCE
ITEM
DIMENSION
A
Overall Length
8.08”
B
Outer Hub Cap Face To Inner Bearing Cup Seat
5.96”
C
Distance Between Cups
4.50”
D
Bolt Circle Diameter
11.25”
E
Wheel Stud Quantity
10
F
Pilot Diameter
8.78”
G
Drive Flange Hole Pattern
6, 5/16”-18; 6.75” B.C.
HUB PILOTED - Hub Assemblies without Drum
HUB PART NUMBER
WHEEL TYPE
DRUM TYPE
STUD NUMBER
ABS RING NUMBER
A2-333-A-4733
20X2576
R0014889
A3-333-A-4733
R0014889
A6-333-A-4733
20X2573
R0014889
STUD PILOTED - Hub and Drum Assemblies
HUB PART NUMBER HAND WHEEL TYPE
DRUM
TYPE STUD NUMBER
ABS RING
NUMBER DRUM SIZE DRUM NUMBER
DRUM
POSITION
14-15968-129
RH Aluminum, Steel
Cast
09-001910
16.5 x 7 03-123207-002 Outboard
14-15968-130
LH Aluminum, Steel
Cast
09-001911
16.5 x 7 03-123207-002 Outboard
WHEEL STUDS USED WITH HUB IN ASSEMBLIES
WHEEL STUD NO.
THREAD TYPE SIZE
STYLE
WHEEL TYPE
USE WITH DRUM TYPE
09-001910
Serrated 3/4"-16 R
Stud Piloted
Steel Wheel
Cast
09-001911
Serrated 3/4"-16 L
Stud Piloted
Steel Wheel
Cast
09-001989
Serrated M22 x 1.5
Hub Piloted
Steel Wheel
Cast
09-002002
Serrated M22 x 1.5
Hub Piloted
Steel Wheel
X30
09-002003
Serrated M22 x 1.5
Hub Piloted
Aluminum Wheel
Cast
DRUMS USED WITH HUB IN ASSEMBLIES
DRUM NO.
DRUM TYPE
BRAKE SIZE
OVERALL DEPTH
PILOT DIAMETER
53-123537-002
X30
16.50" x 7.00"
10.38"
8.78"
03-123207-002
Cast Non-Balanced
16.50" x 7.00"
10.54"
8.78"
03-123365-002
Cast Non-Balanced
16.50" x 7.00"
10.59"
8.78"
85-123570-002
Cast MTB
16.50" x 8.63"
11.25"
8.78"
