DRIVE AXLE HUBS
FOR AXLE MODELS: Dana Spicer J-190S
Eaton 17, 34D, D340
Meritor FL-100, RS-17-140, RS-17-145, RS-17-220, RT-34-145
HUB NO.
DESCRIPTION
TYPE
04-15937-XXX Drive Axle Hub
Outboard Drum
8 Hole
Serrated Studs
INNER BEARING
CUP
CONE
BOLT CIRCLE
47620
47686
10.827'
OUTER BEARING
CUP
CONE
39520
39590

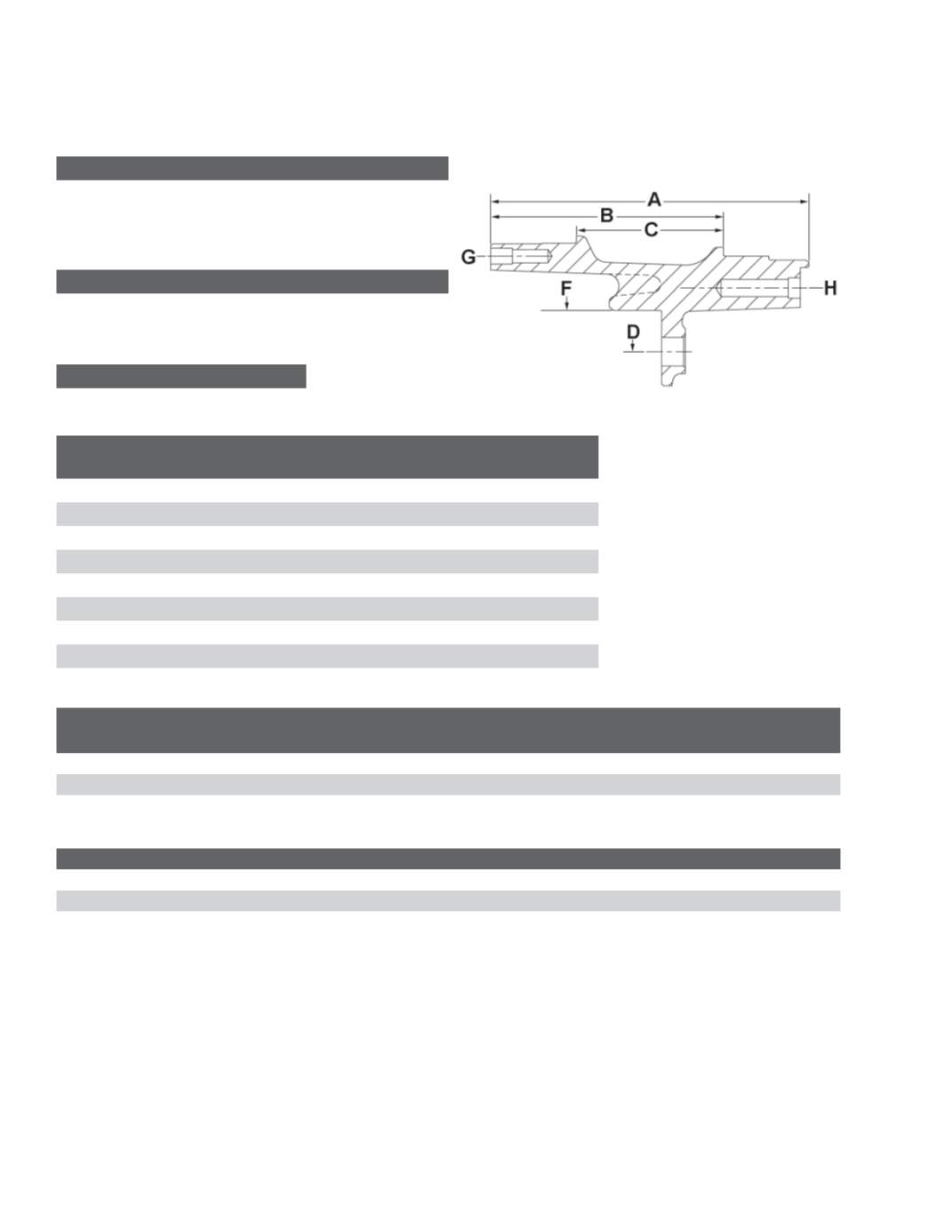

DRAWING
REFERENCE
ITEM
DIMENSION
A
Overall Length
10.15"
B
Outer Hub Cap Face To Inner Bearing Cup Seat
7.335"
C
Distance Between Cups
4.625"
D
Bolt Circle Diameter
10.827"
E
Wheel Stud Quantity
8
F
Pilot Diameter
8.689"
G
Drive Flange Hole Pattern
8, 5/8"-11; 5.50" B.C.
H
Drive Flange Hole Pattern
10, 9/16"-12; 7.25" B.C.
HUB PILOTED - Hub Assemblies without Drum or Rotor
HUB PART NUMBER HAND
WHEEL TYPE
DRUM TYPE
WHEEL STUD
NUMBER
DRIVE FLANGE STUD
NUMBER
ABS RING NUMBER
04-15937-002
RH
09-002184
04-15937-003
RH
09-001989
WHEEL STUDS USED WITH HUB IN ASSEMBLIES
WHEEL STUD NO.
THREAD TYPE SIZE
STYLE
WHEEL TYPE
USE WITH DRUM TYPE
09-001989
Serrated M22 x 1.5
Hub Piloted
Steel Wheel
Cast
09-002184
Serrated M22 x 1.5
Hub Piloted
