FRONT AXLE HUBS
FOR AXLE MODELS: Hino
HUB NO.
DESCRIPTION
TYPE
05-15976-XXX
Front Axle Hub
Outboard Drum
8 Hole
Serrated Studs
INNER BEARING
CUP
CONE
BOLT CIRCLE
LM48510
8.858”
OUTER BEARING
CUP
CONE
25520

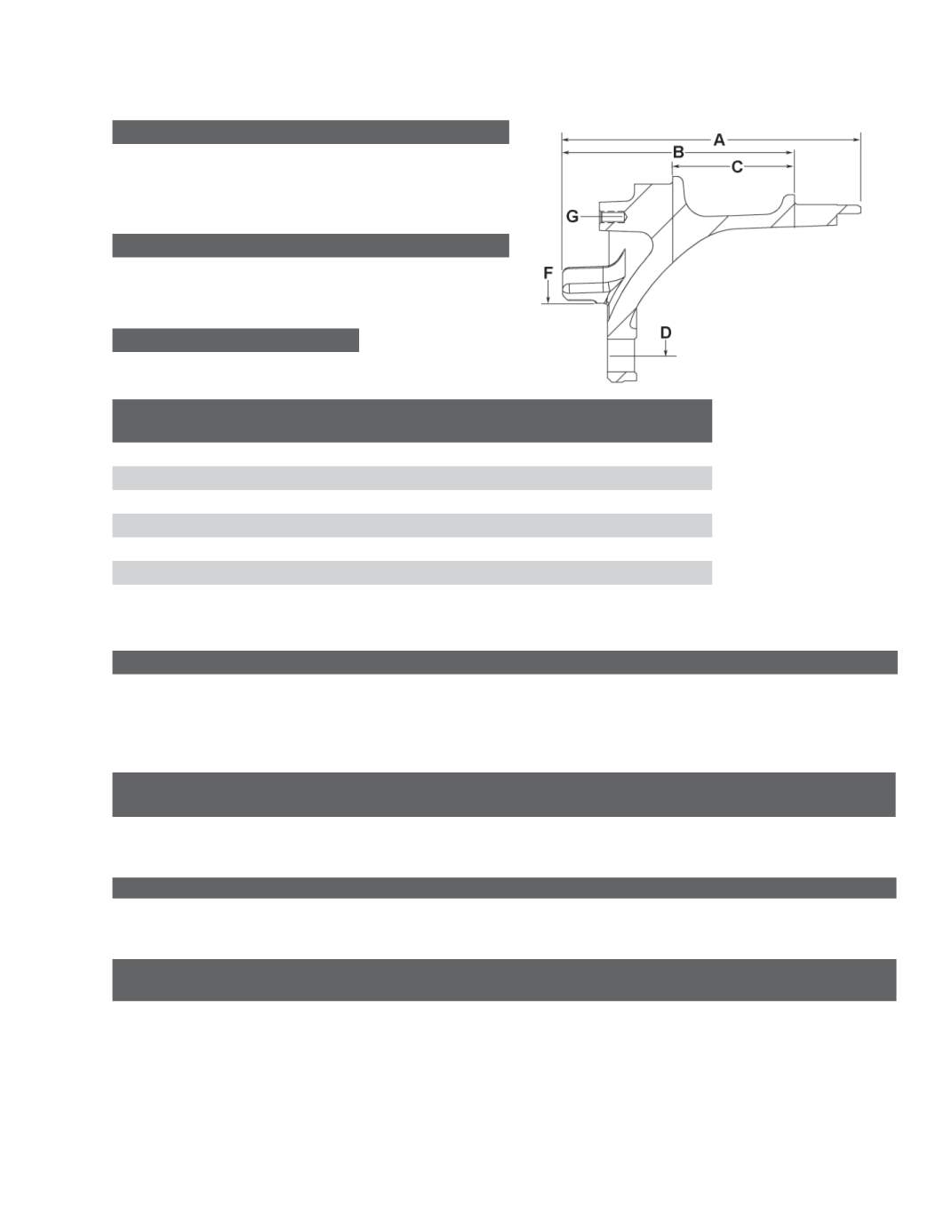

DRAWING
REFERENCE
ITEM
DIMENSION
A
Overall Length
6.587”
B
Outer Hub Cap Face To Inner Bearing Cup Seat
3.956”
C
Distance Between Cups
2.516”
D
Bolt Circle Diameter
8.858”
E
Wheel Stud Quantity
8
F
Pilot Diameter
6.691”
G
Drive Flange Hole Pattern
4, 5/16”-18; 3.625” B.C.
HUB PILOTED - Hub Assemblies without Drum or Rotor
HUB PART NUMBER
WHEEL TYPE
DRUM TYPE
WHEEL STUD
ABS RING NUMBER
05-15976-002
09-002232
09-002217
05-15977-002
09-002225
09-002220
HUB PILOTED - Hub and Rotor Assemblies
HUB PART NUMBER WHEEL TYPE WHEEL STUD NUMBER ABS RING NUMBER ROTOR NUMBER
ROTOR OUTSIDE
DIAMETER
17-15976-1001
09-002252
09-002217
23-123625-002
12.76
WHEEL STUDS USED WITH HUB IN ASSEMBLIES
WHEEL STUD NO.
THREAD TYPE SIZE
STYLE
WHEEL TYPE
USE WITH DRUM TYPE
09-002232
Serrated M14 x 2
Hub Piloted
Steel
Cast
ROTORS USED WITH HUB IN ASSEMBLIES
BOLT HOLES
ROTOR PART NO.
OUTSIDE DIA.
OVERALL DEPTH BOLT CIRCLE DIA.
DIAMETER
NUMBER
PILOT DIA.
23-123625-002
12.76
4.63
8,00
.50-13 UNC
8
6.502
