FRONT AXLE HUBS
FOR AXLE MODELS: Dana Spicer I-160, I-180, I-200, I-220
Eaton EFA-18F3, EFA-20T2, EFA-22T2/T5, EFA-24T2/T5
Meritor FG-942, FL-931, FL-941, FL-943, FL-951
HUB NO.
DESCRIPTION
TYPE
05-15996-XXX
Front Axle Hub
Outboard Drum
10 Hole
Serrated Studs
INNER BEARING
CUP
CONE
BOLT CIRCLE
6420
6461A
13.19”
OUTER BEARING
CUP
CONE
552A
555S

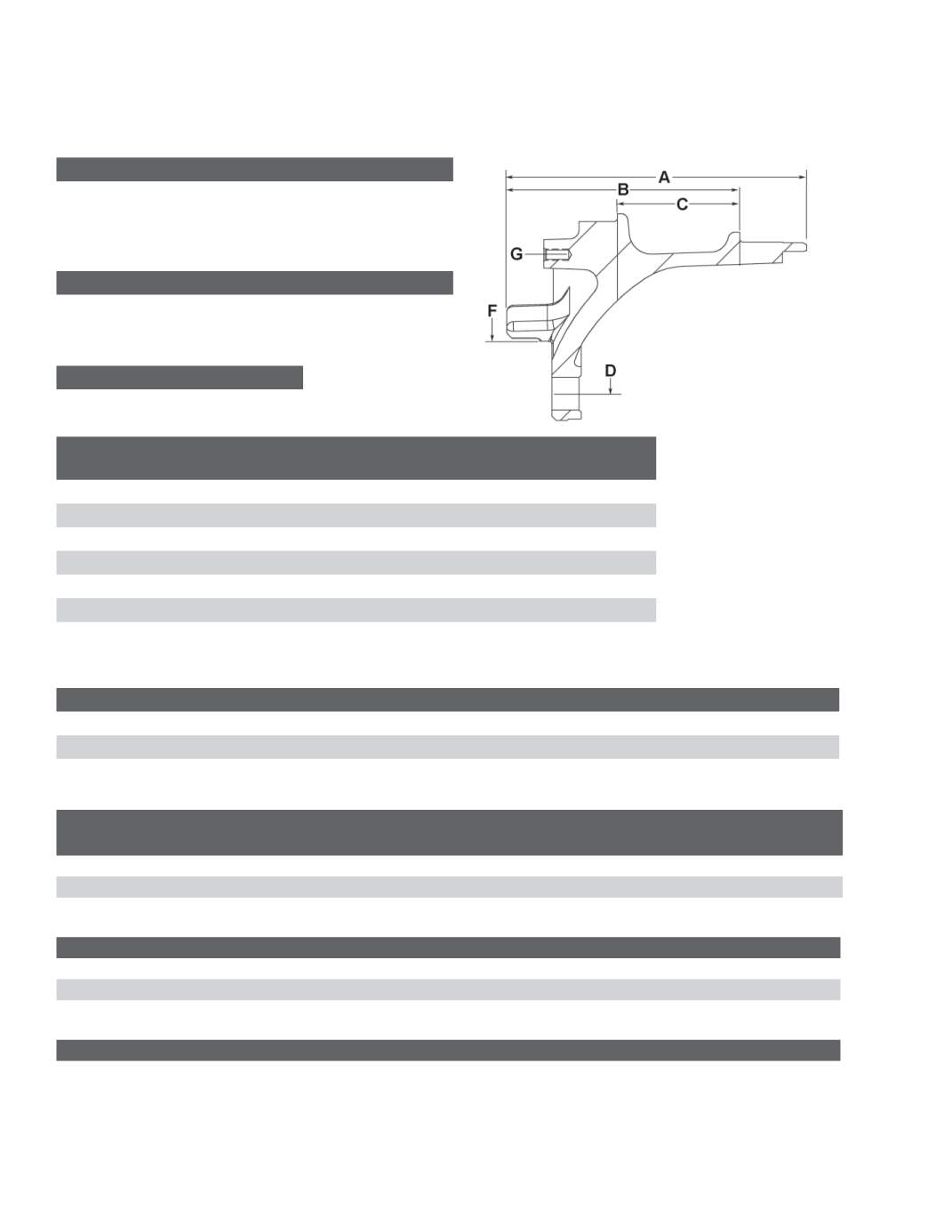

DRAWING
REFERENCE
ITEM
DIMENSION
A
Overall Length
7.79”
B
Outer Hub Cap Face To Inner Bearing Cup Seat
4.146”
C
Distance Between Cups
2.335”
D
Bolt Circle Diameter
13.19”
E
Wheel Stud Quantity
10
F
Pilot Diameter
11.25”
G
Drive Flange Hole Pattern
6’ 3/8”-16; 6.00” B.C.
HUB PILOTED - Hub Assemblies without Drum or Rotor
HUB PART NUMBER
WHEEL TYPE
DRUM TYPE
WHEEL STUD
ABS RING NUMBER
05-15996-002
09-002002
09-002134
05-15996-003
09-001727
09-002134
HUB PILOTED - Hub and Drum Assemblies
HUB PART NUMBER WHEEL TYPE
DRUM
TYPE WHEEL STUD NUMBER
ABS RING
NUMBER DRUM SIZE DRUM NUMBER
DRUM
POSITION
15-15996-1000MTB
Aluminum, Steel
Cast
09-002002
09-002134
16.5 x 6 85-123561-002 Outboard
15-15996-1002MTB
Aluminum, Steel
Cast
09-002002
09-002134
16.5 x 6 85-123561-002 Outboard
WHEEL STUDS USED WITH HUB IN ASSEMBLIES
WHEEL STUD NO.
THREAD TYPE SIZE
STYLE
WHEEL TYPE
USE WITH DRUM TYPE
09-001727
Serrated M22 x 1.5
Hub Piloted
Aluminum Wheel
X30
09-002002
Serrated M22 x 1.5
Hub Piloted
Steel Wheel
X30
DRUMS USED WITH HUB IN ASSEMBLIES
DRUM NO.
DRUM TYPE
BRAKE SIZE
OVERALL DEPTH
PILOT DIAMETER
85-123561-002
Cast MTB
16.50” x 6.00”
9.83”
11.71”
