FRONT AXLE HUBS
FOR AXLE MODELS: Hino
HUB NO.
DESCRIPTION
TYPE
05-15977-XXX
Front Axle Hub
Outboard Drum
6 Hole
Serrated Studs
INNER BEARING
CUP
CONE
BOLT CIRCLE
LM48510
8.75”
OUTER BEARING
CUP
CONE
25520

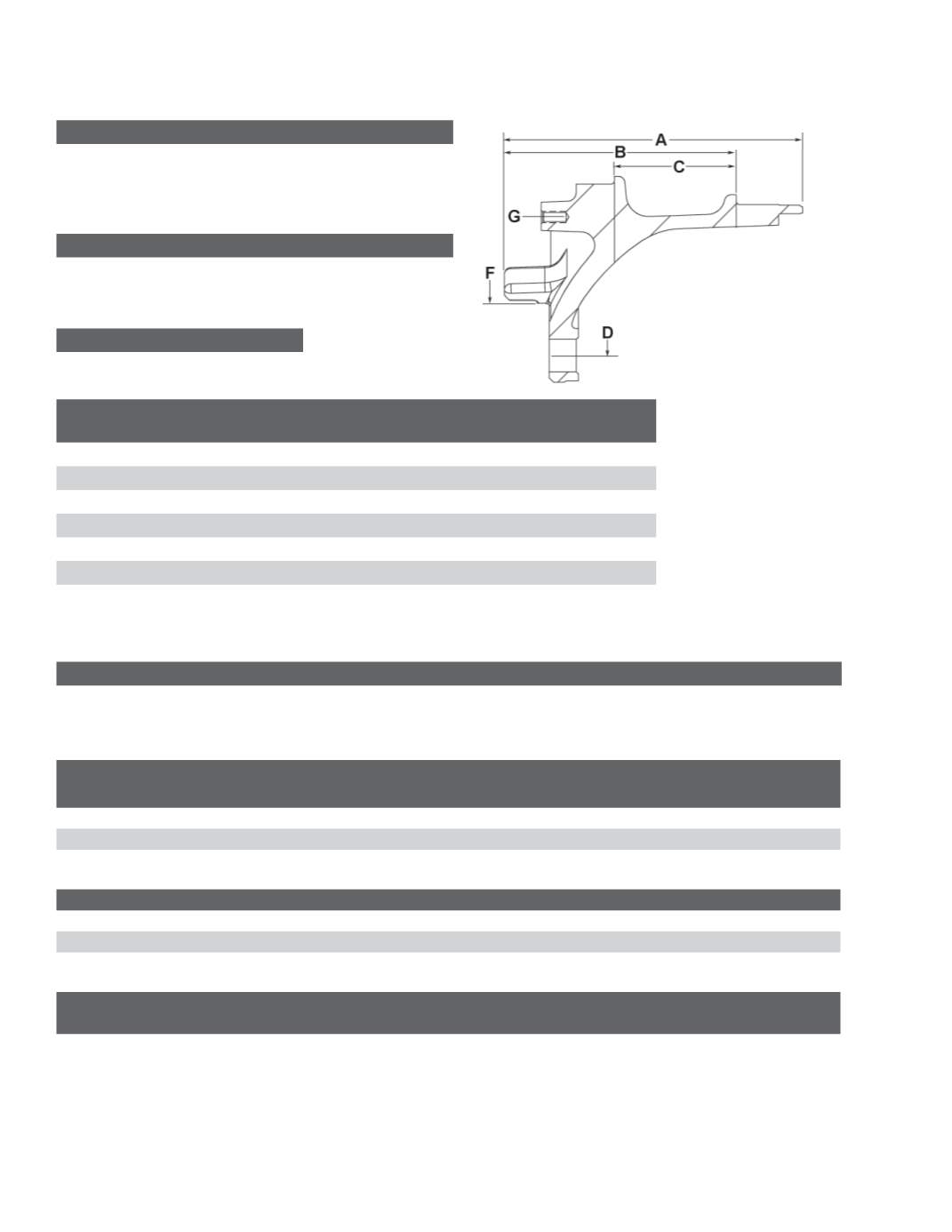

DRAWING
REFERENCE
ITEM
DIMENSION
A
Overall Length
6.945”
B
Outer Hub Cap Face To Inner Bearing Cup Seat
4.365”
C
Distance Between Cups
2.516”
D
Bolt Circle Diameter
8.75”
E
Wheel Stud Quantity
6
F
Pilot Diameter
6.448”
G
Drive Flange Hole Pattern
4, 5/16”-18; 3.625” B.C.
HUB PILOTED - Hub Assemblies without Drum or Rotor
HUB PART NUMBER
WHEEL TYPE
DRUM TYPE
WHEEL STUD
ABS RING NUMBER
05-15977-002
09-002225
09-002220
HUB PILOTED - Hub and Rotor Assemblies
HUB PART NUMBER
WHEEL TYPE
WHEEL STUD NUMBER ABS RING NUMBER ROTOR NUMBER ROTOR O.D.
17-15977-1000
09-002225
09-002220
23-123626-002
11.96
17-15977-1001
09-002226
09-002220
23-123626-002
11.96
WHEEL STUDS USED WITH HUB IN ASSEMBLIES
WHEEL STUD NO.
THREAD TYPE SIZE
STYLE
WHEEL TYPE
USE WITH DRUM TYPE
09-002225
Serrated M20 x 1.5
Hub Piloted
Steel
Cast
09-002226
Serrated M20 x 1.5
Hub Piloted
Steel
Cast
ROTORS USED WITH HUB IN ASSEMBLIES
BOLT HOLES
ROTOR PART NO.
OUTSIDE DIA.
OVERALL DEPTH BOLT CIRCLE DIA.
DIAMETER
NUMBER
PILOT DIA.
23-123626-002
11.960
4.640
7.500
.50-13 UNC
6
6.502
